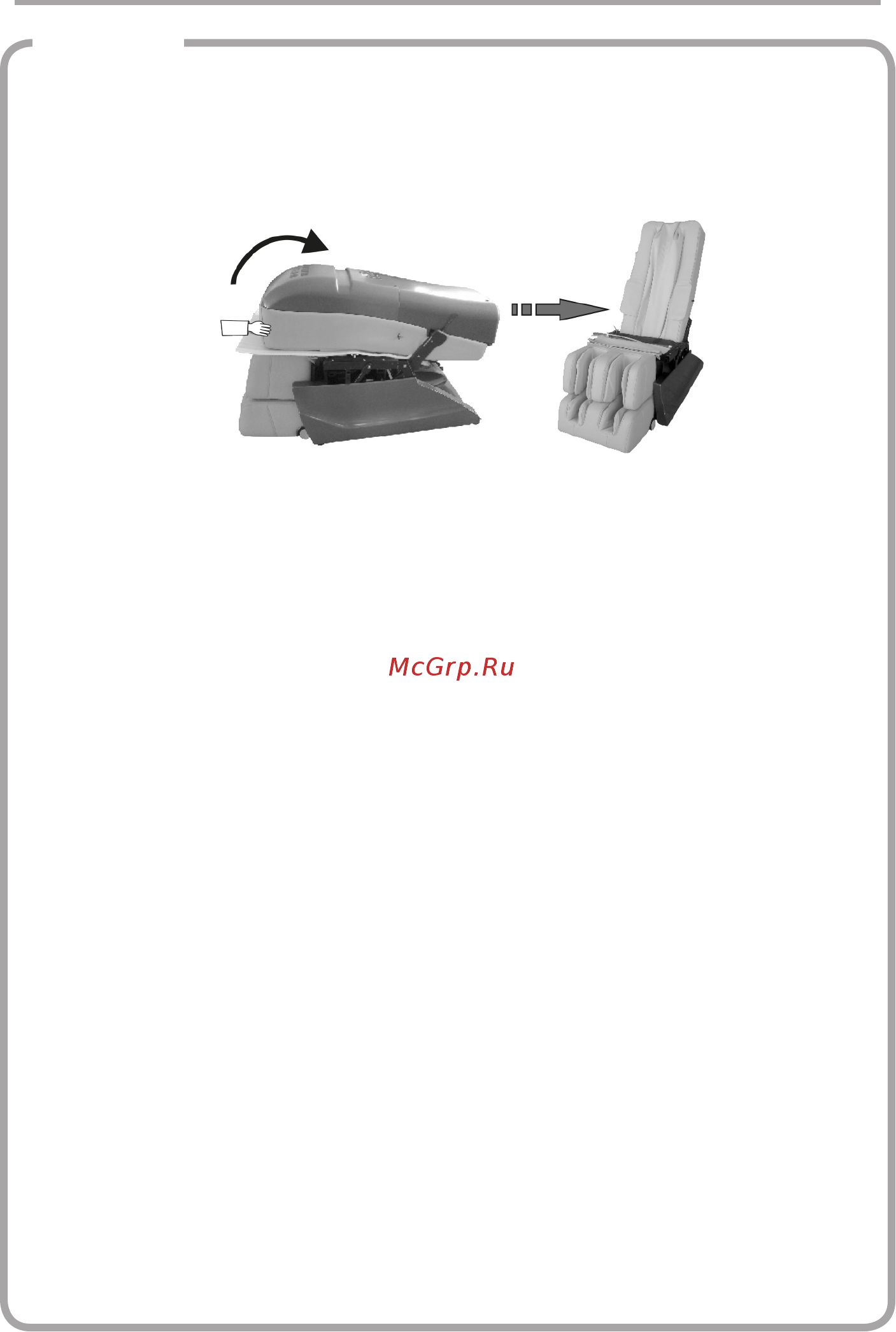

Step 2. How to assemble the backrest

Raise the backrest of the chair to 120 degree till “click sound” comes

out which means the backrests is locked well with the buckle under the

seat.

Step 3. How to assemble the left and right armrest

Before install the armrest of chairs, please confirm the controller is in

the middle of legrest.

1. Unscrew the M6 on the seat frame with Philips screwdriver.

2. Press the button which on the fixed hole by hand, insert the fixed hole

which inside the back of armrest into the fixed bolt of side backrest.

3. Insert the square tube into the side piece of the seat frame.

4. Slightly move the armrest to make the front and back panel match bolt

hole on the seat metal frame, screw M6 on the hole.

5. Connect air hoses of the same color on the armrest well to the ones

from seat.

6. Join LED wire on the armrest with the LED wire in the seat.

7. When assembling, please make sure not to squeeze air tube, Led wire

and controller line .

How to disassemble the armrest: Disconnect LED wire and air hose

between the seat and armrest; Unscrew the four bolts on the seat; lift up

the front of armrest, let the square tube of armrest move out from the

plate of seat frame; and then press the button on the fixed hole at inside

of the back armrest, pull armrest, pull the end of armrest at the same

time, move the fixed hole away from the fixed axle which on the side of

backrest, then it will finish to disassemble the armrest.
