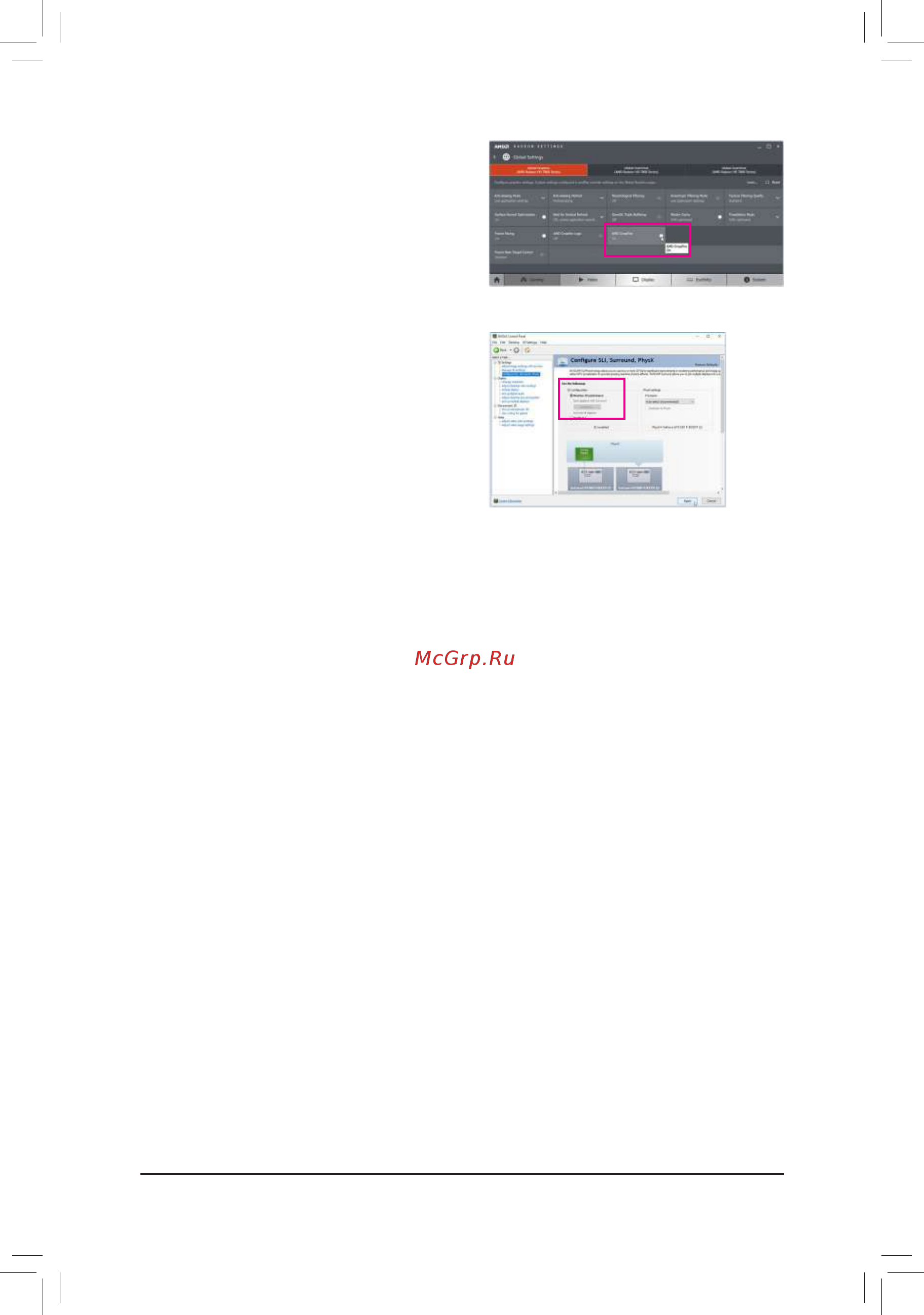

Hardware Installation

- 22 -

C.ConguringtheGraphicsCardDriver

C-1. To Enable CrossFire Function

After installing the graphics card driver in the operating

system, go to the AMD RADEON SETTINGS screen.

Browse to Gaming\Global Settings and ensure AMD

CrossFire is set to On.

C-2. To Enable SLI Function

After installing the graphics card driver in the operating

system, go to the NVIDIA Control Panel. Browse to the

CongureSLI,Surround,PhysX screen and ensure

Maximize 3D performance is enabled.
