Part names and functions02
8
En

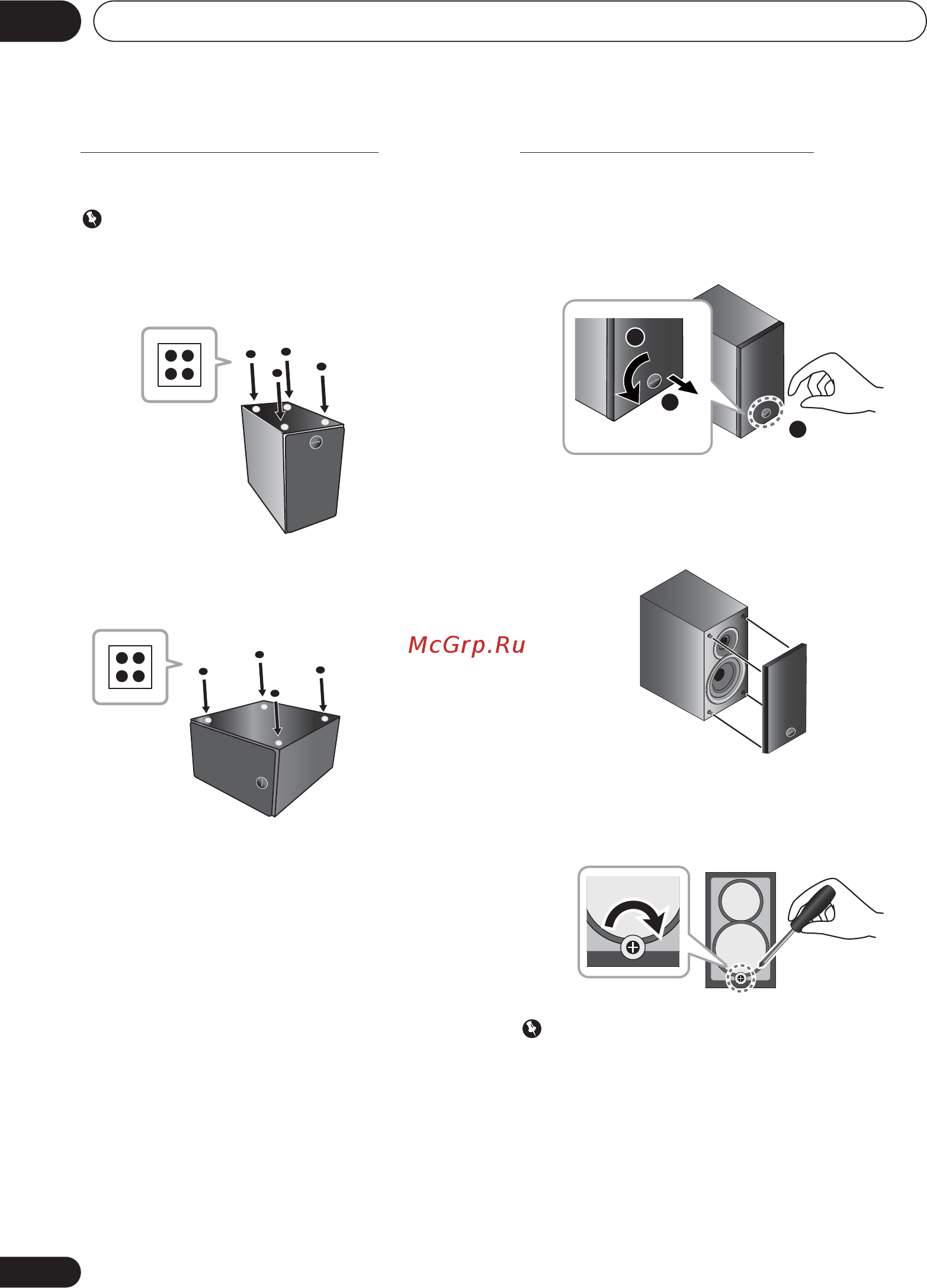

Attaching the Non-skid pads
Apply the accessory non-skid pads to the bottom surfaces of
the speakers.
Important
• Use the speaker is usually in an upright position.
When placing speakers upright
When placing the speakers vertically upright, attach the non-
skid pads to the bottom surface of the speakers.
When placing speakers horizontally
When placing the speaker horizontally, attach the non-skid
pads to what will be the bottom surface of the speakers.
Rotating the Speaker Badge
The grill frame speaker badge can be rotated. Operate as
follows.
1 Grasp the speaker badge (1), pull forward
(2), and turn left (3).
The speaker badge will rotate.
If the speaker badge does not rotate doing the above step 1,
try the following steps 2 to 3.
2 Detach the speaker grill.
3 Rotate the screws on the backside of the grill
in a clockwise direction using a plus driver.
Important
• Do not rotate the screw in a counter-clockwise direction
as it may cause the badge to fall off.
The bottom surface
of the speaker
The bottom surface of
the speaker when
using it horizontally
1
2
3
Backside of speaker grill
