Front Speakers (Bi-Amping)
3
Center Speaker
45
Surround Speakers
6
Powered Subwoofer
For Bi-Amping the
Speakers

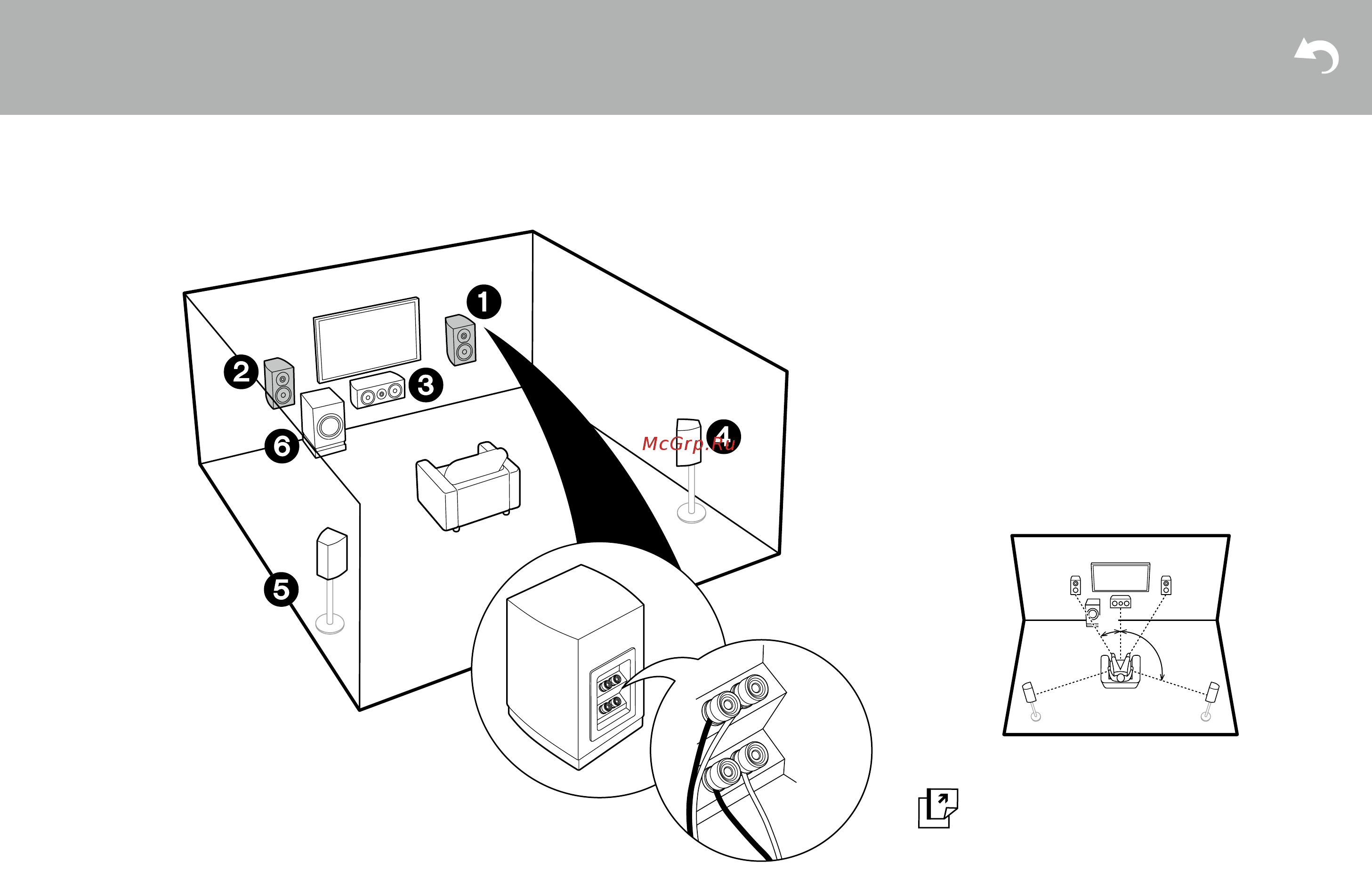

It is possible to connect front speakers supporting bi-
amping to improve quality of the bass and treble. The
maximum number of channels available with this
connection is 5.1 because Bi-Amping speakers require
one amplifier for the tweeter jacks and one amplifier for
the woofer jacks. The effects and placements for
speakers are the same as the 5.1-channel plan that
doesn't use Bi-Amping speakers.
0 If you connect to speakers supporting Bi-Amping,
speaker output in ZONE (
ÄP16) is not possible.
＊ 1: 22e to 30e, ＊ 2: 120e
Go To "Hookup" (ÄP10)
＊
