Chapter 3
32

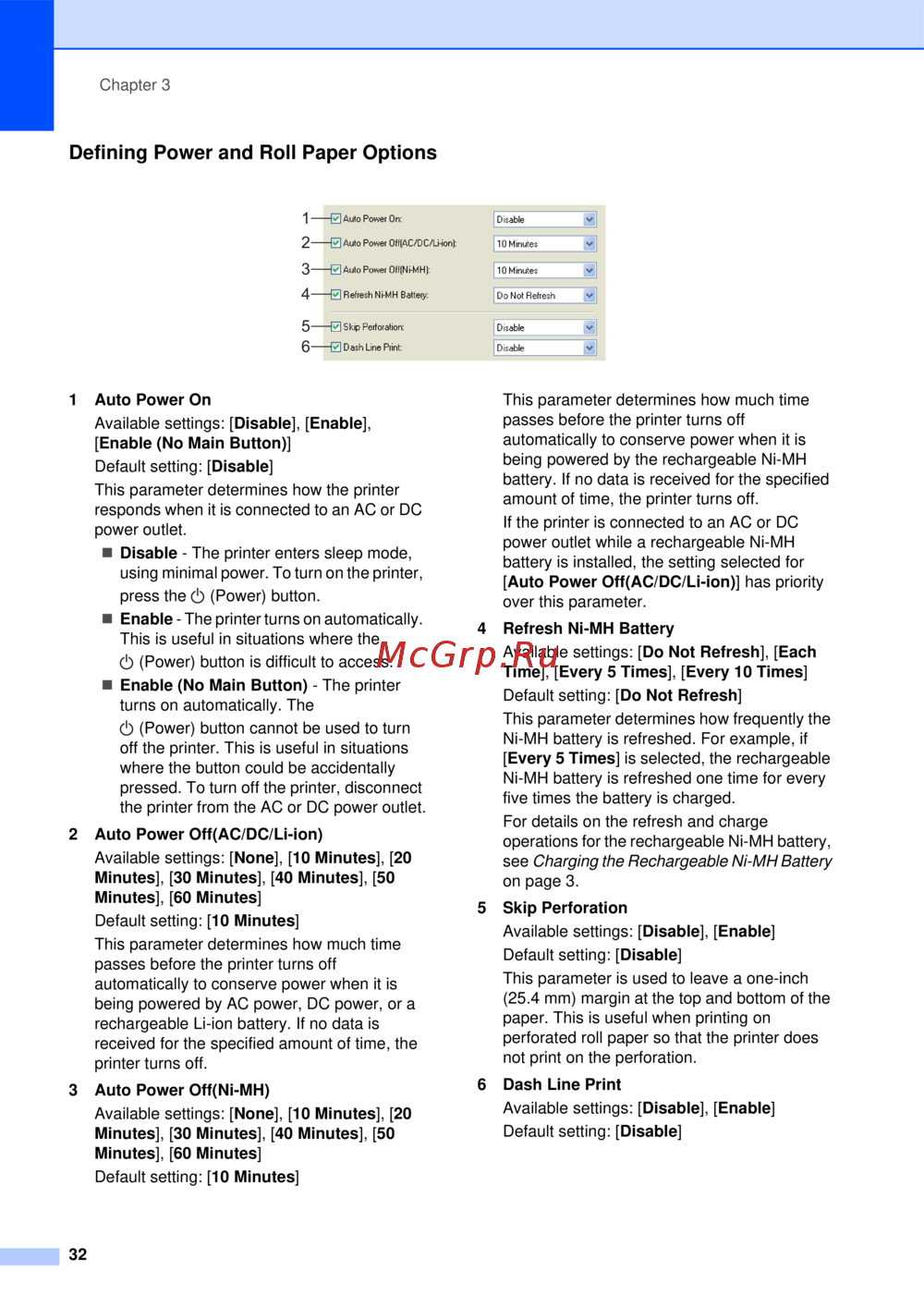

Defining Power and Roll Paper Options 3
1 Auto Power On
Available settings: [Disable], [Enable],
[Enable (No Main Button)]
Default setting: [Disable]
This parameter determines how the printer
responds when it is connected to an AC or DC
power outlet.
Disable - The printer enters sleep mode,
using minimal power. To turn on the printer,
press the (Power) button.
Enable - The printer turns on automatically.
This is useful in situations where the
(Power) button is difficult to access.
Enable (No Main Button) - The printer
turns on automatically. The
(Power) button cannot be used to turn
off the printer. This is useful in situations
where the button could be accidentally
pressed. To turn off the printer, disconnect
the printer from the AC or DC power outlet.
2 Auto Power Off(AC/DC/Li-ion)
Available settings: [None], [10 Minutes], [20
Minutes], [30 Minutes], [40 Minutes], [50
Minutes], [60 Minutes]
Default setting: [10 Minutes]
This parameter determines how much time
passes before the printer turns off
automatically to conserve power when it is
being powered by AC power, DC power, or a
rechargeable Li-ion battery. If no data is
received for the specified amount of time, the
printer turns off.
3 Auto Power Off(Ni-MH)
Available settings: [None], [10 Minutes], [20
Minutes], [30 Minutes], [40 Minutes], [50
Minutes], [60 Minutes]
Default setting: [10 Minutes]
This parameter determines how much time
passes before the printer turns off
automatically to conserve power when it is
being powered by the rechargeable Ni-MH
battery. If no data is received for the specified
amount of time, the printer turns off.
If the printer is connected to an AC or DC
power outlet while a rechargeable Ni-MH
battery is installed, the setting selected for
[Auto Power Off(AC/DC/Li-ion)] has priority
over this parameter.
4 Refresh Ni-MH Battery
Available settings: [Do Not Refresh], [Each
Time], [
Every 5 Times], [Every 10 Times]
Default setting: [Do Not Refresh]
This parameter determines how frequently the
Ni-MH battery is refreshed. For example, if
[Every 5 Times] is selected, the rechargeable
Ni-MH battery is refreshed one time for every
five times the battery is charged.
For details on the refresh and charge
operations for the rechargeable Ni-MH battery,
see Charging the Rechargeable Ni-MH Battery
on page 3.
5Skip Perforation
Available settings: [Disable], [Enable]
Default setting: [Disable]
This parameter is used to leave a one-inch
(25.4 mm) margin at the top and bottom of the
paper. This is useful when printing on
perforated roll paper so that the printer does
not print on the perforation.
6 Dash Line Print
Available settings: [Disable], [Enable]
Default setting: [Disable]
