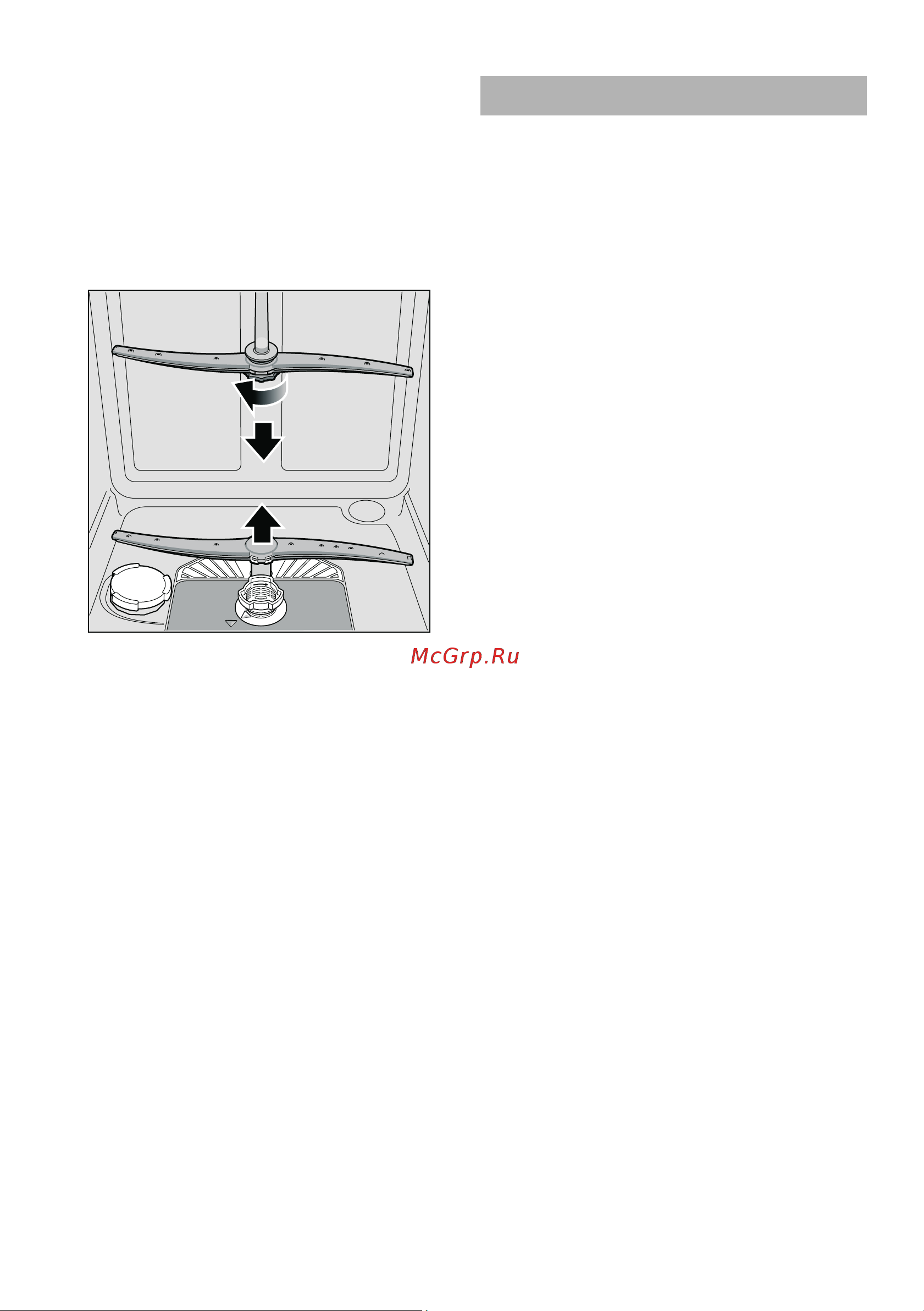

Spray arms
Limescale and contaminants in the rinsing
water may block nozzles and bearings on
the spray arms 1: and 1J.
– Check outlet nozzles on the spray arms
for blockages.
– Unscrew the upper spray arm 1:.
– Remove the lower spray arm 1J
upwards.
– Clean spray arms under running water.
– Re-engage or screw on spray arms.
The majority of faults which could occur in
daily operation can be rectified by the
user. This ensures that the appliance is
quickly available for use again. The
following overview will help you locating
the causes and gives helpful advise to
eliminate them.
Note
If the appliance stops during dishwashing
or does not start for no obvious reason,
first run the Abort programme function
(Reset).
(See chapter entitled “Dishwashing”)
ã=Warning
If on the digital display 8 an error code
(“:‹‚ to “:„‹), always disconnect the
appliance from the power supply and then
turn off the tap.
You can rectify certain faults yourself (see
following fault description), for all other
faults please contact customer service and
state the indicated fault “:XX.
ã=Warning
Don’t forget: Repairs may be carried out
by technicians only. If a component has to
be replaced, ensure that only original
spare parts are used. Improper repairs or
use of non-original spare parts may cause
considerable damage and put the user at
considerable risk.
