Siemens SR55E503 [10/30] Cutlery basket
![Siemens SR55E503 [10/30] Cutlery basket](/views2/1029122/page10/bga.png)
en
10

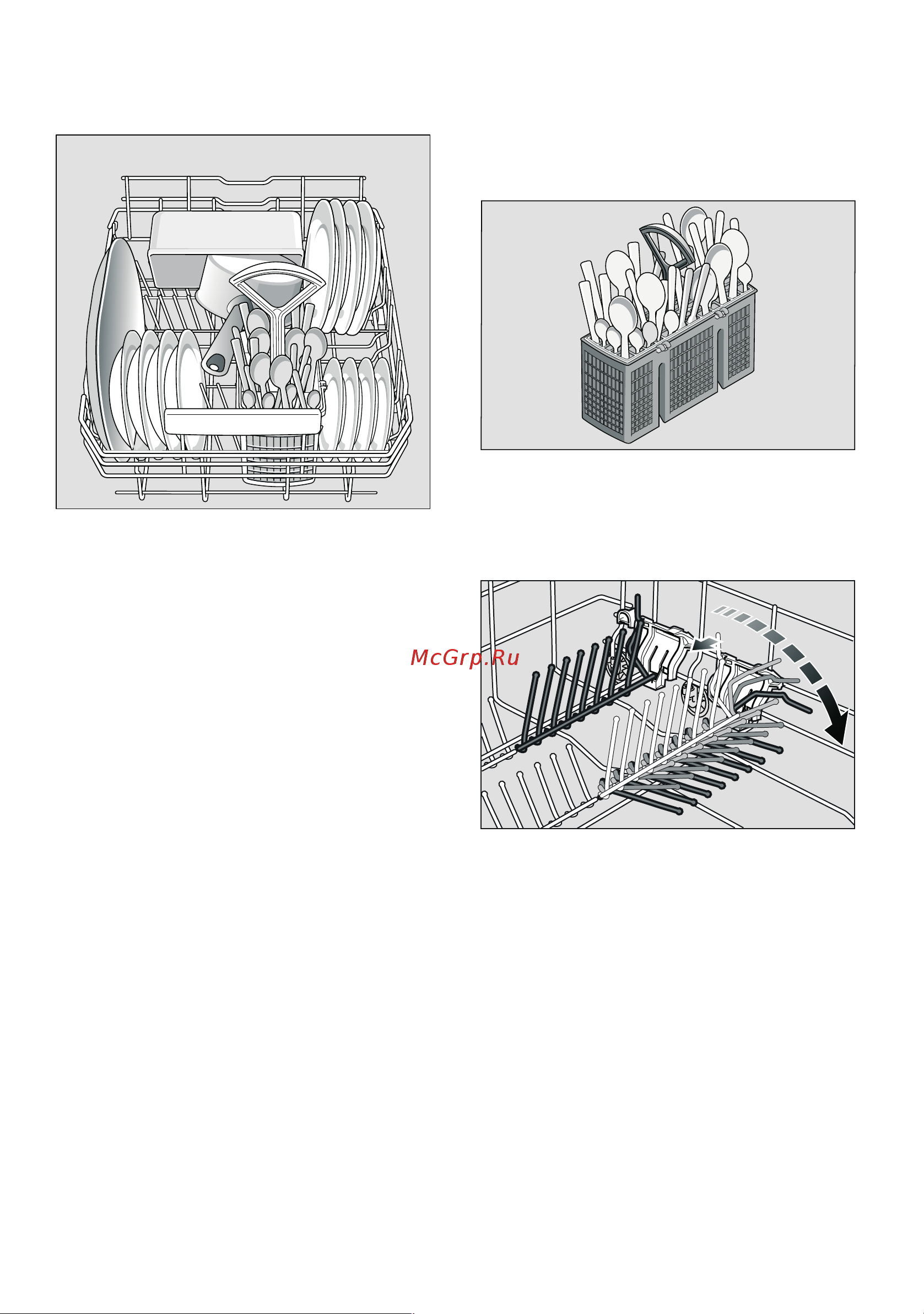

Pans
Bottom basket 1b
Tip
Heavily soiled utensils (pans) should
be placed in the bottom basket. The more
powerful spray jet provides a better
dishwashing result.
Tip
Other examples, such as the best way
of loading your dishwasher, can be found
on our homepage as a free download. The
corresponding Internet address can
be found on the back page of these
instructions for use.
Cutlery basket
You should always place cutlery unsorted
with the points downwards.
To prevent injuries, place long, pointed
implements and knives on the knife shelf.
Folding spikes
Folding spikes *
* depending on model
The spikes can be folded down to improve
arrangement of pans, bowls and glasses.
