Sanus VLL10-B1 [6/36] Wood stud mounting

6901-002034 <05>

3-4 Tighten lag bolts

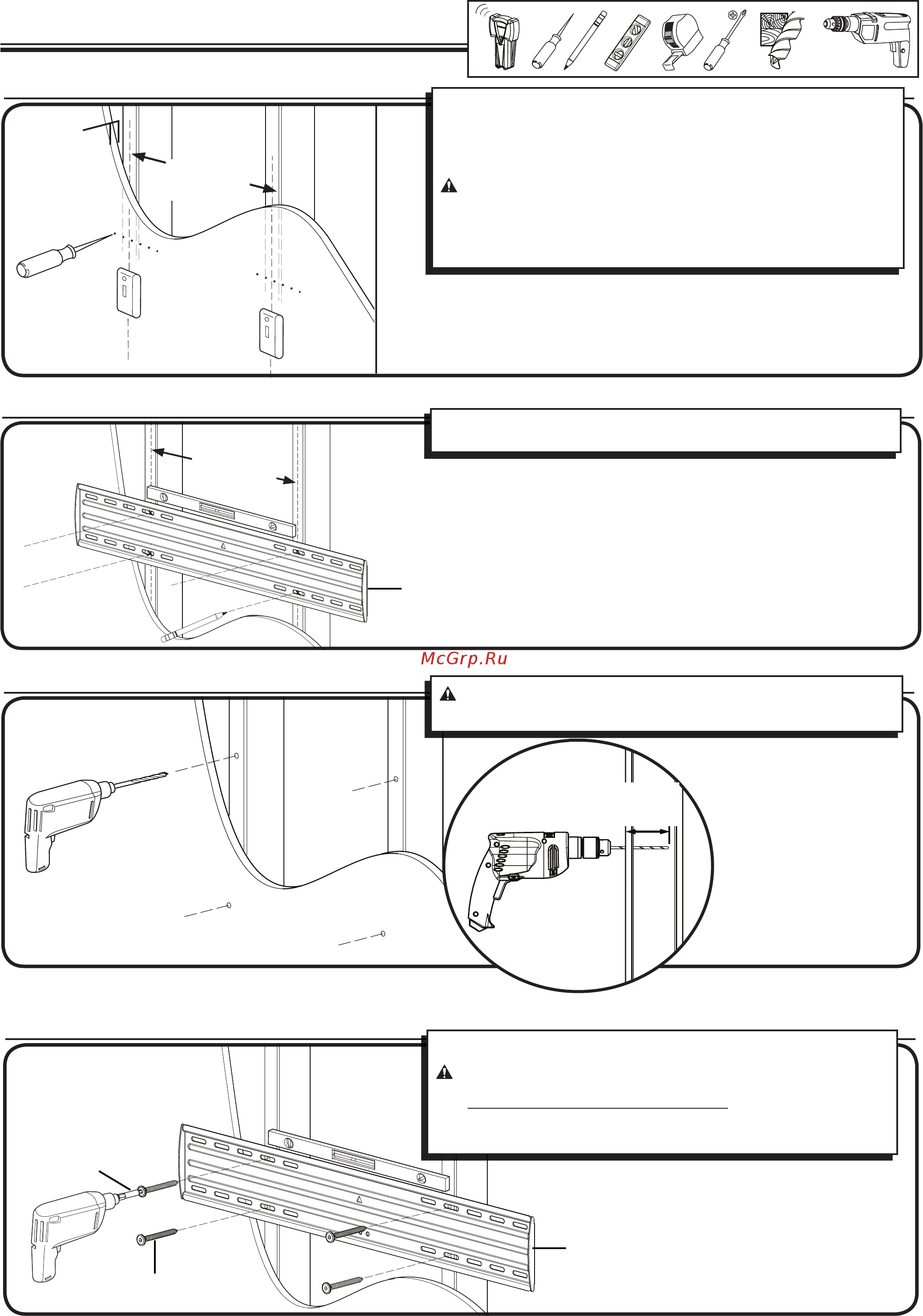

3 Wood Stud Mounting

002534.eps

LF288 / XF288 - Mount to wood stud

41 - 61cm

(16 - 24 in.)

41cm

(16 in.)

002534.eps

LF288 / XF288 - Mount to wood stud

70mm

(2.75 in.)

3-1 Locate studs

3-2 Mark the wall

3-3 Drill pilot holes

< 16 mm

(5/8 in.)

Level the wall plate [01] and mark the hole locations.

CAUTION: Pilot holes MUST be drilled to a depth of 70 mm

(2.75 in.), using a 5mm (3/16 in.) diameter drill bit.

Using a drill and the Allen Driver Bit [03] tighten lag bolts [04].

CAUTION:

Avoid potential injuries or property damage!

Ù DO NOT over-tighten the lag bolts [04].

Ù Tighten the lag bolts only until they are pulled firmly against the

wall plate [01].

For assistance in determining wall plate location, see Height Finder at

sanus.com.

Verify the center of each stud with an awl or thin nail or use an edge

to edge stud finder.

CAUTION: Avoid potential personal injuries and property

damage!

Ù Any material covering the wall must not exceed 16 mm (5/8 in.).

Ù Minimum wood stud size: common 2 x 4 in (nominal 1.5 x 3 in).

[01]

[03]

[04]

[01]

5 mm

(3/16 in.)
