Solid Concrete or Concrete Block

3 Wall Mounting

002862.eps

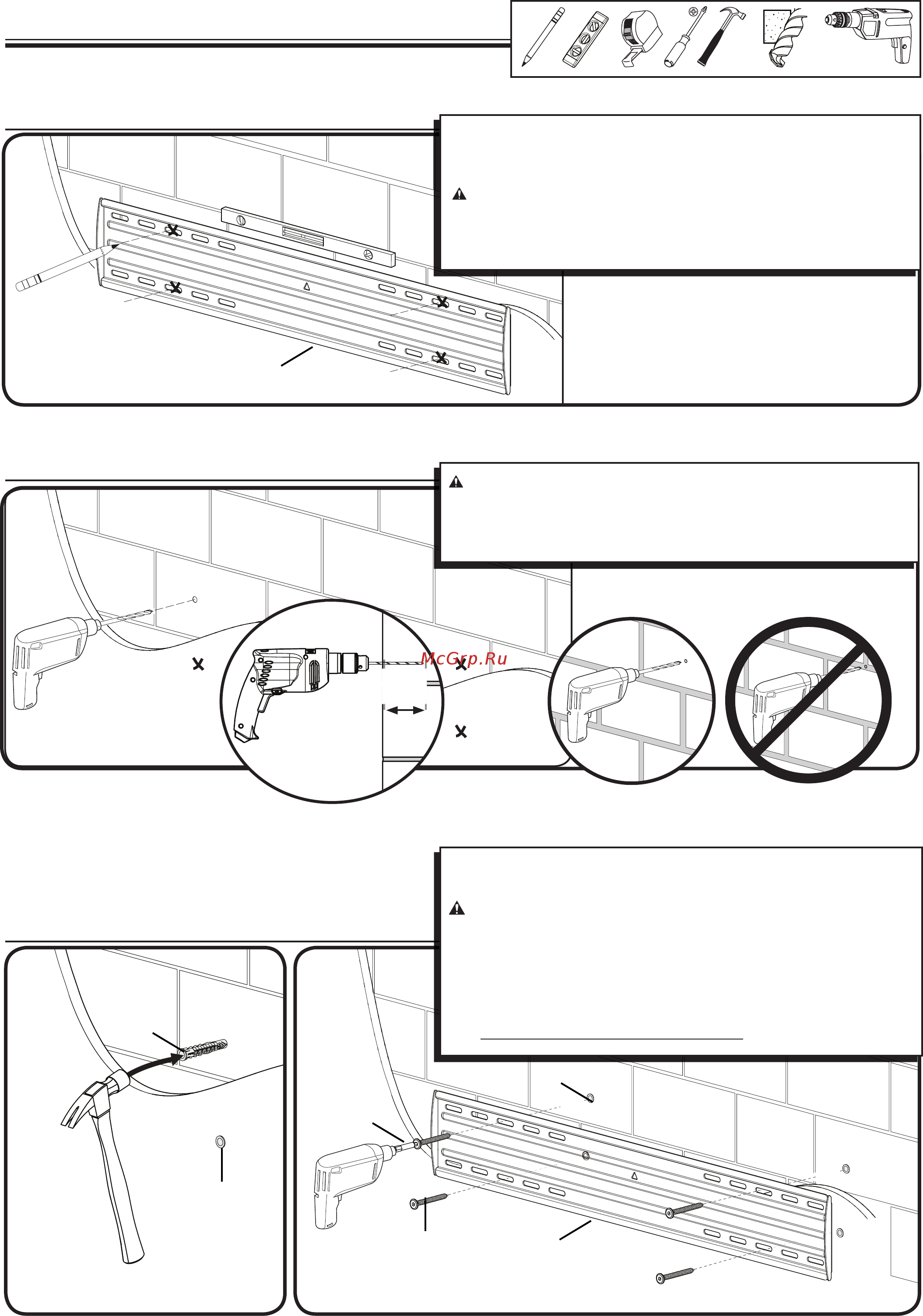

3-1 Mark the wall

3-2 Drill pilot holes

3-3 Insert anchors and lag bolts

75mm

(3 in.)

For assistance in determining wall plate location, see Height Finder at

sanus.com.

Level the wall plate [01] and mark the hole locations.

CAUTION:

Avoid potential injuries or property damage!

Ù Mount the wall plate [01] directly onto the concrete surface.

Ù Minimum solid concrete thickness: 8 in.

Ù Minimum concrete block size: 8 x 8 x 16 in.

CAUTION:

Avoid potential injuries or property damage!

Ù Pilot holes MUST be drilled to a depth of 75 mm (3 in.) using a 10

mm (3/8 in.) diameter drill bit.

Ù Never drill into the mortar between blocks.

Insert lag bolt anchors [05]. Then insert lag bolts [04] using a drill and

the Allen Driver Bit [03].

CAUTION:

Avoid potential injuries or property damage!

Improper use could reduce the holding power of the lag bolt. To avoid

potential injuries or property damage:

Ù Be sure the anchors [05] seat flush with the concrete surface.

Ù Tighten the lag bolts [04] only until they are pulled firmly against

the wall plate [01].

Ù DO NOT over-tighten the lag bolts [04].

[05]

[03]

[04]

[01]

[05]

[01]

10 mm

(3/8 in.)
