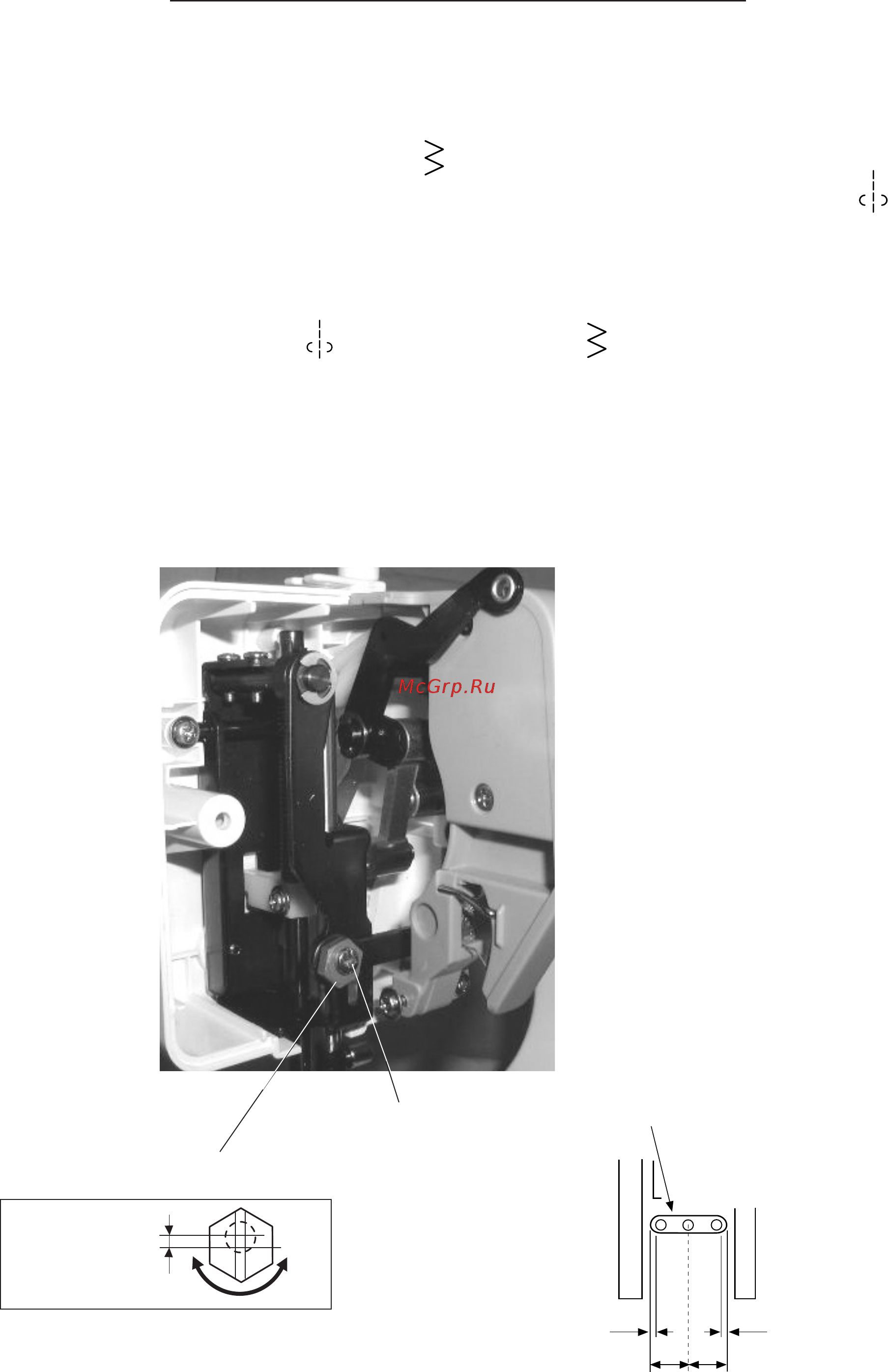

ADJUSTING NEEDLE DROP POSITION

The clearance between the needle and side edges of the needle hole should be 0.2 mm or

more when the maximum width zigzag stitch ( ) is selecte.

And the neddle should drop in the center of the needle hole when the straight stitch is ( )

selected.

TO ADJUST

1. Remove the face cover.

2. Select the straight stitch ( ) and the zigzag stitch ( ).

3. Loosen the setscrew (A) and adjust the needle drop position by turning the eccentric

pin (B).

NOTE:

Adjust the direction of eccentric in the lower side.

4. Tighten the setscrew (A).

5. Attach the face cover.

Eccentric

Needle hole

A = B

0.2mm or more

(B)

(A)
