how To USe The RazoR hD SpoTTing Scope

Attach the Razor HD to a tripod or car window mount for steady viewing. Simply secure the

tripod mount foot on a quick-release plate or mounting plate of the tripod head.

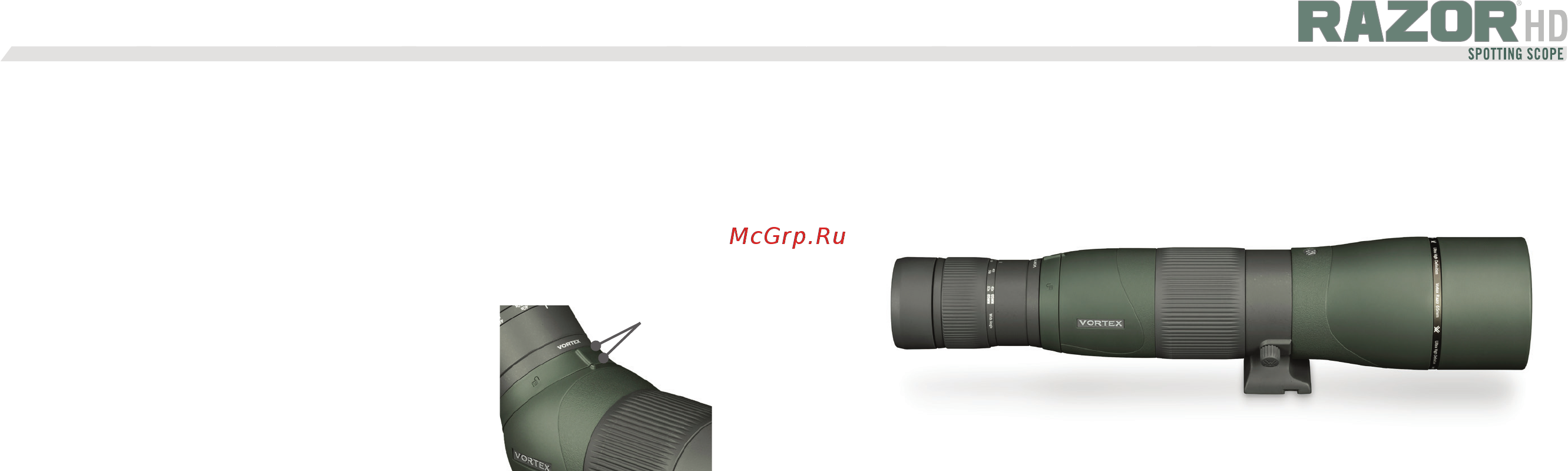

Mount the Razor HD

The tripod foot attaches to any tripod or car window mount that uses 1/4” x 20 screw threads.

Eyepiece Lock

Ring raised bar

and dot.

• To attach the eyepiece, match the magniﬁcation indication

line on the eyepiece with raised bar on the Eyepiece Lock

Ring. Insert the eyepiece into the body and rotate clockwise

1/8th turn and the eyepiece stops. Rotate the Eyepiece Lock

Ring clockwise until the raised bar matches up with the

raised dot on scope body.

Before attaching the eyepiece, remove any covers that would interfere with attaching the

eyepiece to the spotting scope body. Keep exterior lens covers handy to protect exposed

lenses whenever you’re not viewing through the Razor HD spotting scope.

Attach the eyepiece

• To detach the eyepiece, rotate the Eyepiece Lock Ring

counter-clockwise until unlocked symbol matches up with the

raised dot on the scope body. Rotate the eyepiece counter-

clockwise 1/8 turn and pull it straight out of the body.
