the conditioner on and off (set the time by pressing “TEMP» buttons up and

down). If the conditioner is off, you may set the time for automatic turning

on in a set time interval. And vice versa, if the conditioner is on, you may set

the time for automatic turning off. Before activation of the Timer function

you may specify the needed settings.

17.Button «SUPPER». Using this button, you may turn the turbo mode on

and off. In this mode the conditioner shows the maximum cooling (in cool

mode) or heating (in heat mode) capacity.

18.Button «ECO» (Economic). Using this button, you may turn the

economic mode on and off. In this mode temperature will increase (in cool

mode) or decrease (in heat mode) slightly – by 2°С from the specified one.

19.Button «SLEEP» (Night Care). Using this button, you may turn the sleep

mode on and off. In this mode, if working for cooling, the conditioner will

increase temperature by 1 °С from the specified one within two hours.

If working for heating, the conditioner will decrease temperature by 1 °С

from the specified one within two hours. After 10 hours of operation the

conditioner will turn off automatically.

20.Button for selection of operating mode – «MODE». Using this button,

you may select a needed operating mode: AUTO, COOL, DRY, HEAT, FAN.

Indication of the control board display shall correspond to selected modes.

Work with remote control board

Mounting and replacement of batteries: mount two LR03 alkaline batteries,

according to polarity indicated on the remote control board.

In order to avoid malfunction of the remote control board do not insert used

batteries or batteries of various types.

If the conditioner is not used for a long time, remove batteries from the

board or else electrolyte may leak and damage the board.

In normal operation of the conditioner average service life of batteries will

be about a half-year.

Replace batteries, if command receiving is not confirmed with an audio

signal, or if the display does not show a sign of command transfer. When

generating commands from the remote control board, point an IR-radiator

at a remote-control signal receiver situated on the indoor unit. Hold the

remote control board at the distance of no more than 8 m from the indoor

unit. The remote control board will not work, if there are any curtains, doors

or other things between it and the indoor unit. Protect the board from water

and exposure to direct sunlight and heat sources.

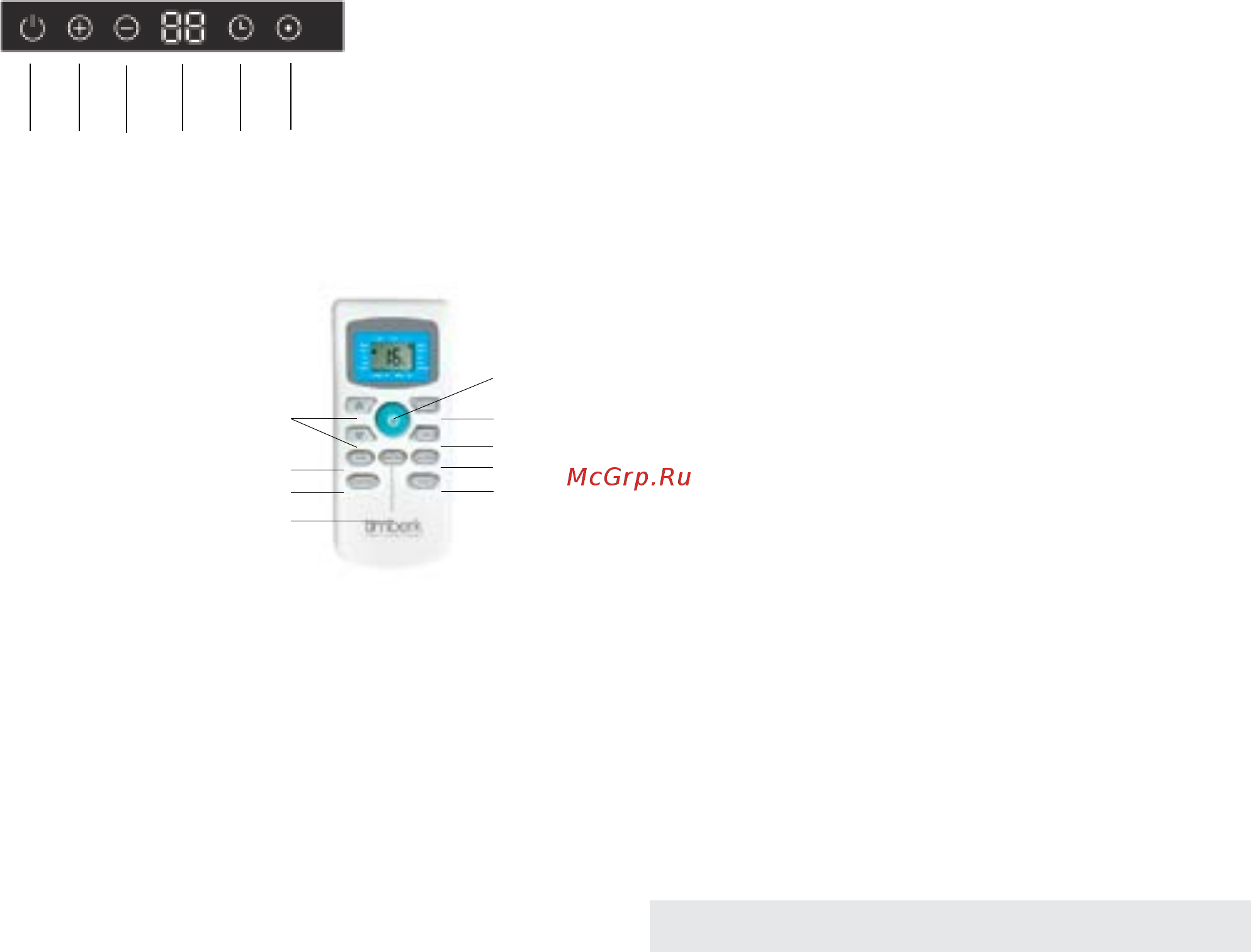

Fig. 4

а) Power supple indicator

b) Heating mode indicator

c) Cooling mode indicator

d) Temperature indicator

e) Timer indicator

f) Operation indicator

*use of particular indicators depends on model and series.

** design of indicator symbols may differ depending on model

and series.

a b c d e f

Fig. 3

12.Button «ON/OFF» (Power). Using this button, you may turn the

conditioner on or off.

13.Buttons «TEMP» (increase/decrease). Using this button, you may set

needed air temperature indoors.

14.Button «FAN». Using this button, you may select rotation speed of the

indoor unit fan: «Auto», «High», «Middle», «Low».

In “Auto” mode the fan speed will change automatically. In dry mode the

fan speed will remain unchanged – “Low”.

15.Button «SWING». Using this button, you may regulate position of air-

outlet blinds and forward treated air up and down.

16.Button «TIMER». Pressing this button, you may set the time for turning

Description of remote control board
