Faber MIRROR BK BRS X/V A80 LOGIC [9/108] Installation

INSTALLATION

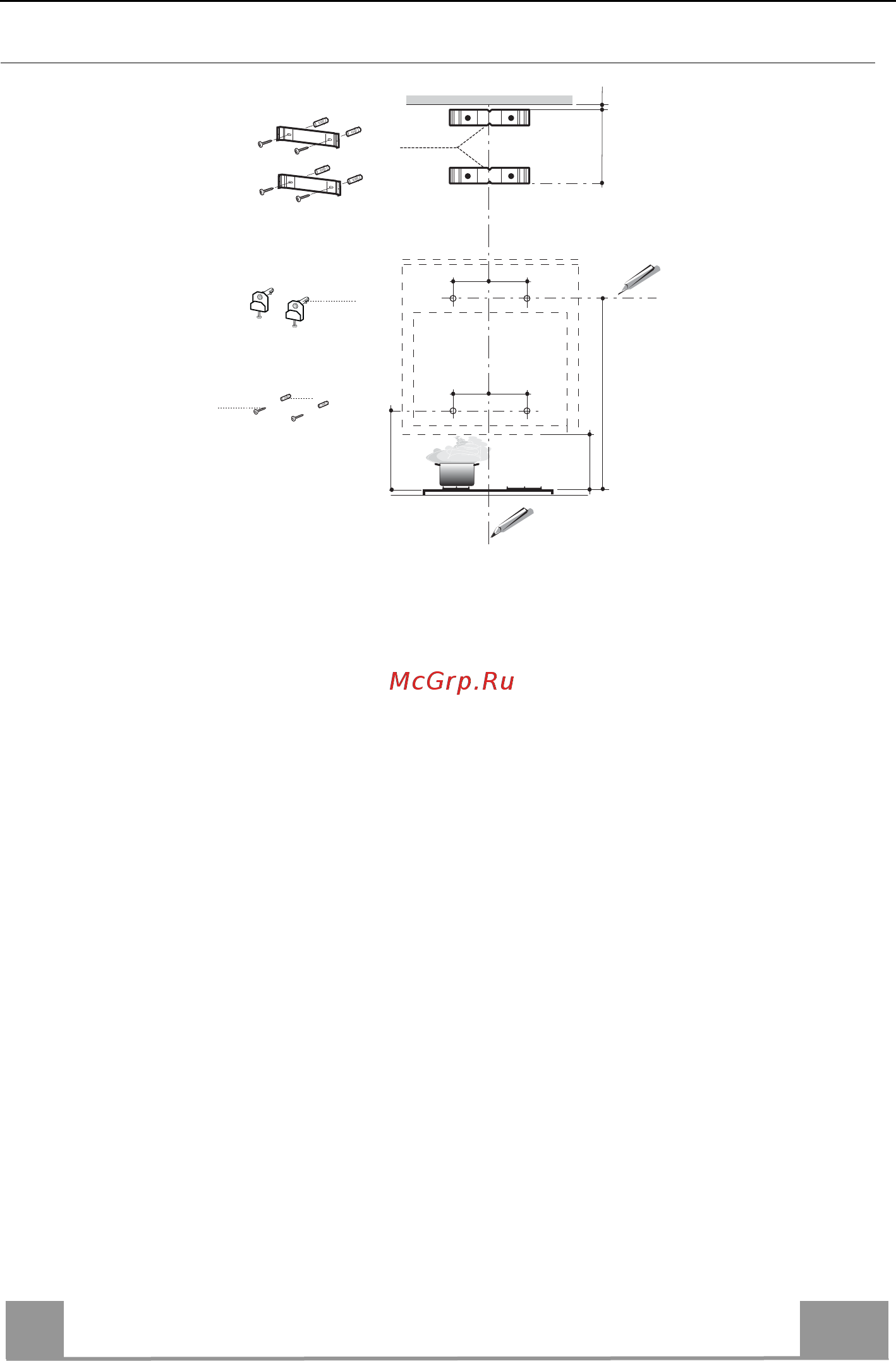

Wall drilling and bracket fixing

11a

12a

249 249

960

1÷2

7.2.1

368

210 210

458

As a first step, proceed with the following drawings:

• a vertical line up to the ceiling or up to the upper limit, at the centre of the area in which the

hood is to be fitted;

• a horizontal line at a minimum 960 mm above the cooker top.

• Mark a point (1) on the horizontal line, 249 mm to the right of the vertical reference line.

• Repeat this operation on the other side, checking that the two marks are levelled.

• Mark a reference point (2) as indicated at 210 mm from the vertical reference line and 458

mm above the cooker top.

• Repeat this operation on the other side, checking that the two marks are levelled.

• Drill at the marked points (1), using a ø 12 mm drill bit.

• Drill at the marked point (2), using a ø 8 mm drill bit.

• Insert the bracket plugs 11a into the holes (1) and tighten the screws.

• Insert plug 11 into hole (2).

• Place bracket 7.2.1 on the wall, about 1-2 mm from the ceiling or from the upper limit,

aligning the centre (notch) with the vertical reference line.

• Mark the wall at the centres of the bracket holes.

• Place the bracket 7.2.1 on the wall at X mm below the first bracket (X = height of the upper

chimney section), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the bracket holes.

• Drill ø 8 mm holes at all the marked centre points.

• Insert the wall plugs 11 in the holes.

• Fix the brackets using the 12a screws (4,2 x 44,4) supplied with the hood.
