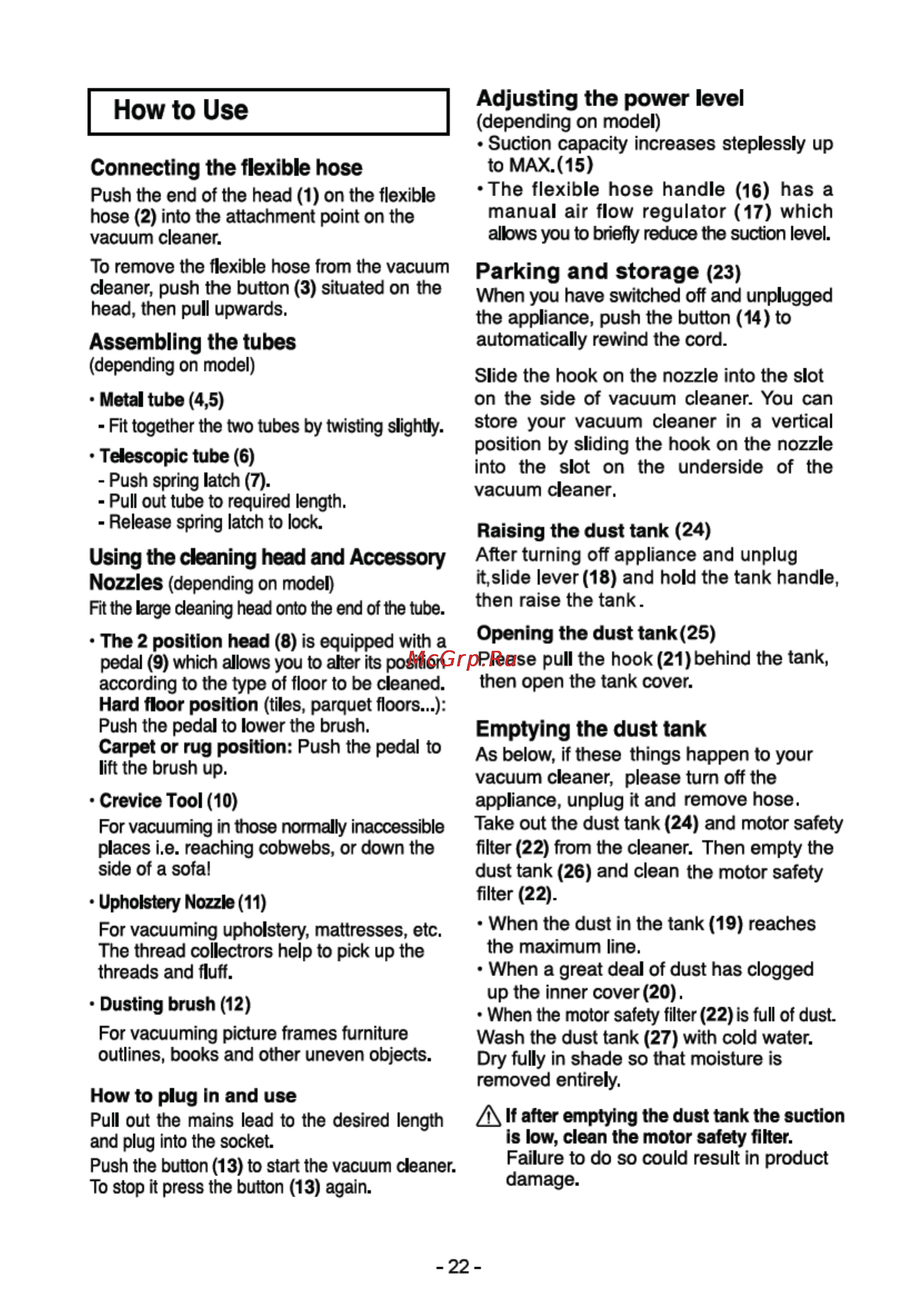

Adjusting the power level How to Use depending on model Suction capacity increases steplessly up to MAX 15 The flexible hose handle 16 has a manual air flow regulator 17 which allows you to briefly reduce the suction level Connecting the flexible hose Push the end of the head 1 on the flexible hose 2 into the attachment point on the vacuum cleaner To remove the flexible hose from the vacuum cleaner push the button 3 situated on the head then pull upwards Parking and storage 23 When you have switched off and unplugged the appliance push the button 14 to automatically rewind the cord Assembling the tubes depending on model Slide the hook on the nozzle into the slot on the side of vacuum cleaner You can store your vacuum cleaner in a vertical position by sliding the hook on the nozzle into the slot on the underside of the vacuum cleaner Metal tube 4 5 Fit together the two tubes by twisting slightly Telescopic tube 6 Push spring latch 7 Pull out tube to required length Release spring latch to lock Raising the dust tank 24 After turning off appliance and unplug it slide lever 18 and hold the tank handle Fit the large cleaning head onto the end of the tube then raise the tank Using the cleaning head and Accessory Nozzles depending on model The 2 position head 8 is equipped with a pedal 9 which allows you to alter its position according to the type of floor to be cleaned Hard floor position tiles parquet floors Push the pedal to lower the brush Carpet or rug position Push the pedal to lift the brush up Crevice Tool 10 For vacuuming in those normally inaccessible places i e reaching cobwebs or down the side of a sofa Upholstery Nozzle 11 For vacuuming upholstery mattresses etc The thread collectrors help to pick up the threads and fluff Dusting brush 12 For vacuuming picture frames furniture outlines books and other uneven objects How to plug in and use Pull out the mains lead to the desired length and plug into the socket Push the button 13 to start the vacuum cleaner To stop it press the button 13 again 22 Opening the dust tank 25 Please pull the hook 21 behind the tank then open the tank cover Emptying the dust tank As below if these things happen to your vacuum cleaner please turn off the appliance unplug it and remove hose Take out the dust tank 24 and motor safety filter 22 from the cleaner Then empty the dust tank 26 and clean the motor safety filter 22 When the dust in the tank 19 reaches the maximum line When a great deal of dust has clogged up the inner cover 20 When the motor safety filter 22 is full of dust Wash the dust tank 27 with cold water Dry fully in shade so that moisture is removed entirely A If after emptying the dust tank the suction is low clean the motor safety filter Failure to do so could result in product damage
