(1) Exposure Compensation Mark

(2) Flash Mark

(3) Sharp Focus LED (green)

(4) Front M is-focus/Rear M is-focus Mark

(5) Program Mode Indicator

(6) Shutter-priority Mode Indicator

(7) Over/Underexposure Mark

(8) Aperture priority Mode Indicator

(9) Aperture/Exposure Compensation Setting

(10) Manual Mode Indicator

(11) Shutter Speed/Film Speed

(12) Spot Circle

(13) Focusing Frame

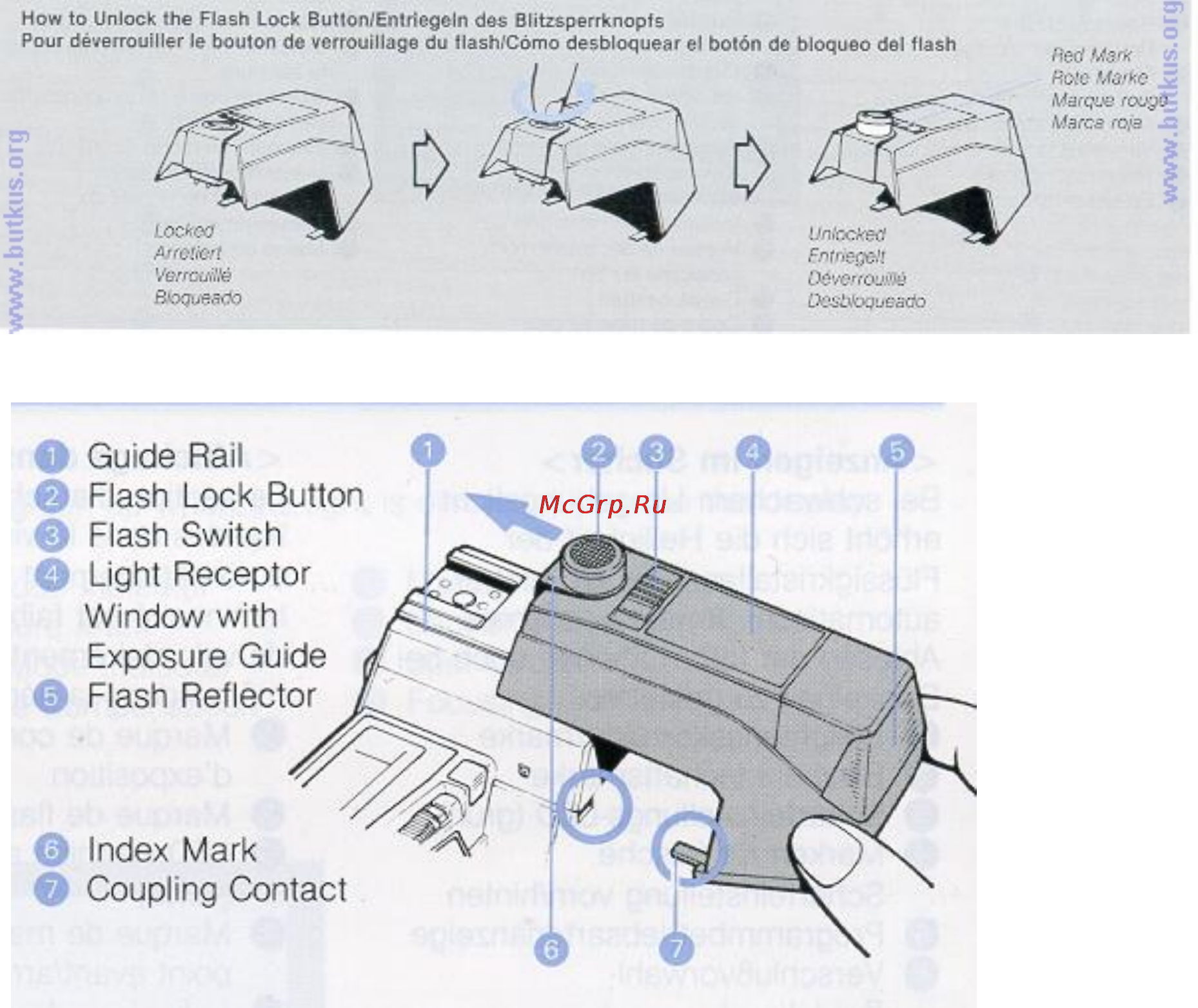

(1) Guide Rail

(2) Flash Lock Button

(3) Flash Switch

(4) Light Receptor

(5) Window with

(6) Exposure Guide

(7) Flash Reflector

(8) Index Mark

(9) Coupling Contact

< Mounting and Dismounting the Dedicated Flash CS110AF> To mount the flash, first unlock the Flash Lock Button. (When

it is unlocked, it will pop up and show a red mark.) Mount the flash from the front side of the camera and slide it in along the

Guide Rail as far as it will go. Then, press down the Flash Lock Button and turn it clockwise until the index mark on it comes

opposite the index mark on the flash, and lock the flash in place. To dismount the flash, repeat the above-mentioned procedure in

reverse.

* Do not apply too much pressure on the flash coupling contact.

4www.butkus.org

* When attaching the flash, make sure the Coupling Contact is inserted into the camera's Power Terminal.
