MSI Z370 GAMING PRO CARBON [30/121] Important
![MSI Z370 GAMING PRO CARBON AC [30/121] Pci_e1 6 pcie expansion slots](/views2/1307671/page30/bg1e.png)
30
Overview of Components

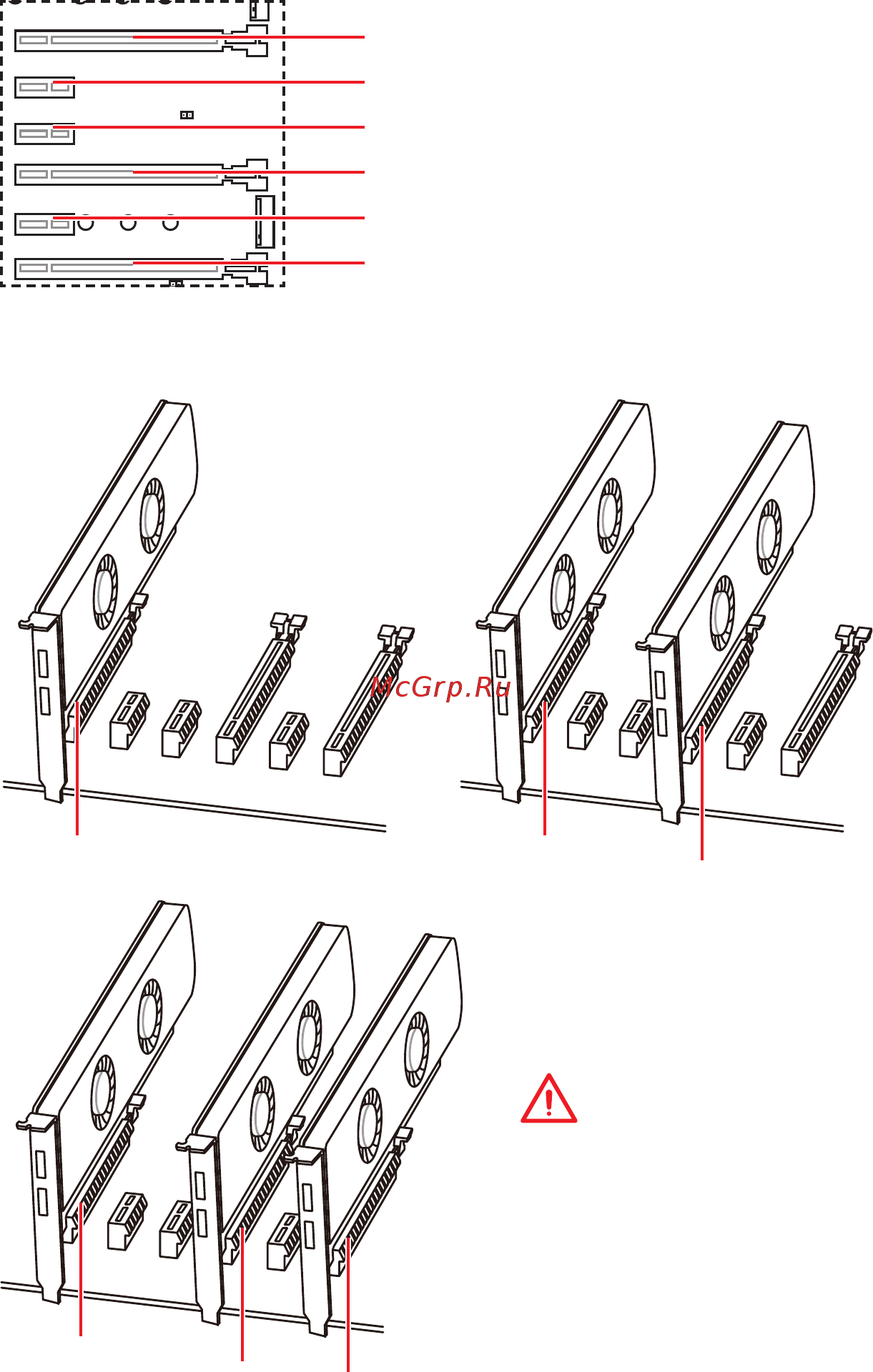

PCI_E1~6: PCIe Expansion Slots
PCI_E1: PCIe 3.0 x16 (CPU lanes)
PCI_E2: PCIe 3.0 x1 (PCH lanes)
PCI_E3: PCIe 3.0 x1 (PCH lanes)
PCI_E4: PCIe 3.0 x8 (CPU lanes)
PCI_E5: PCIe 3.0 x1 (PCH lanes)
PCI_E6: PCIe 3.0 x4 (PCH lanes)
x16 x8
x8
x8
x8
x4
Multiple graphics cards installation recommendation
Important
If you install a large and heavy
graphics card, you need to use a
tool such as MSI Gaming Series
Graphics Card Bolster to support
its weight to prevent deformation
of the slot.
