MSI X399 GAMING PRO CARBON AC [3/110] Quick start
![MSI X399 GAMING PRO CARBON AC [3/110] Quick start](/views2/1307681/page3/bg3.png)
3
Quick Start
DDR4 Memory
Graphics Card
SATA Hard Disk Drive
SATA DVD Drive
A Package of Screws
Phillips Screwdriver
Torqkey Screwdriver
Chassis
Power Supply Unit
Thermal Paste
Quick Start

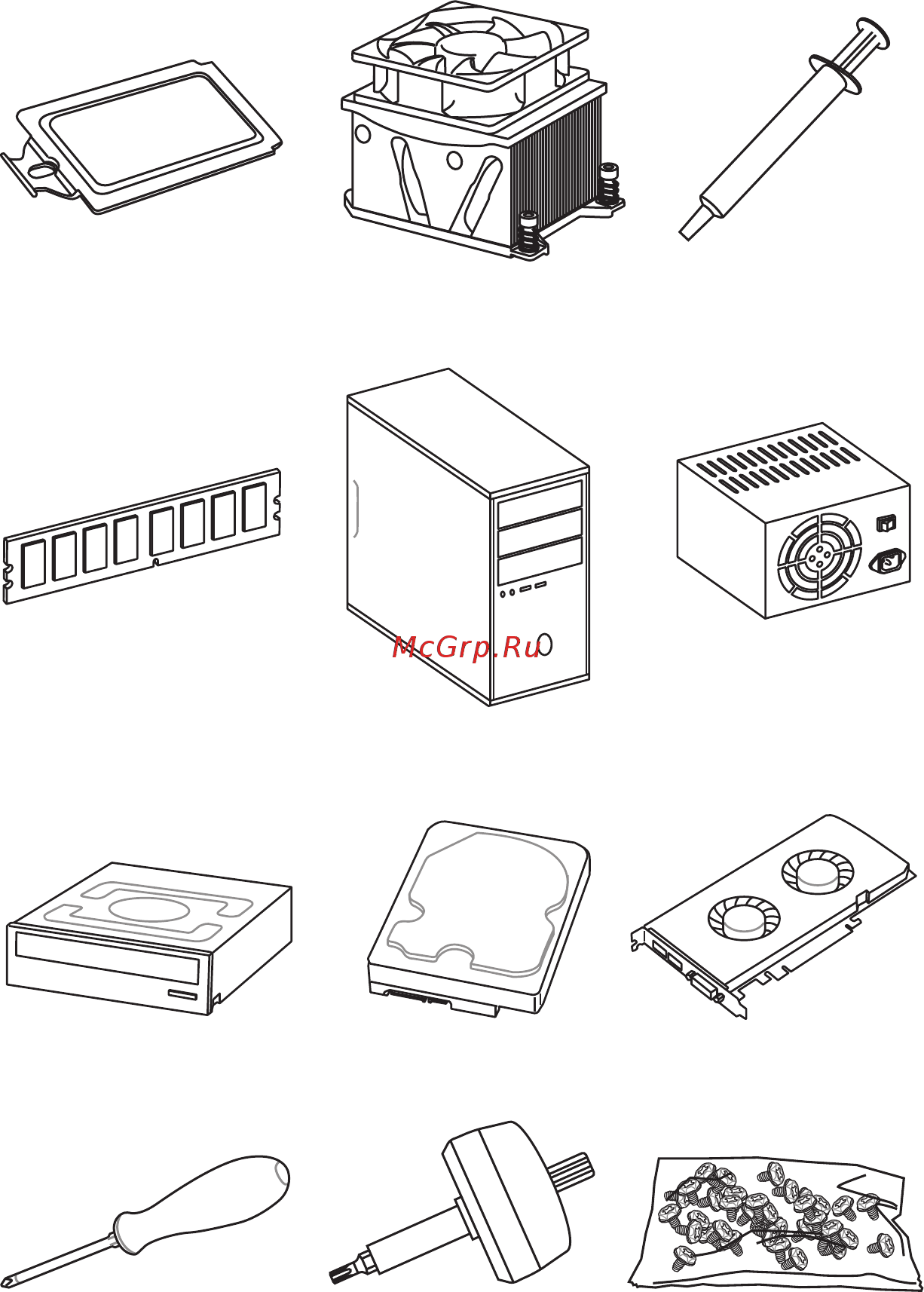

Preparing Tools and Components
AMD
®
Ryzen
Threadripper CPU
CPU Fan
