75
Software Description
Nahimic 2
Nahimic 2 is designed to offer the best audio experience it contains 6 audio effects, 3
microphone effects, HD Audio Recorder2 and Sound Tracker.
Installation and Update
Nahimic 2 is included in the audio driver. If you need to install it or update it, please
use the Driver Disc with your motherboard or download the driver from MSI’s official
website.

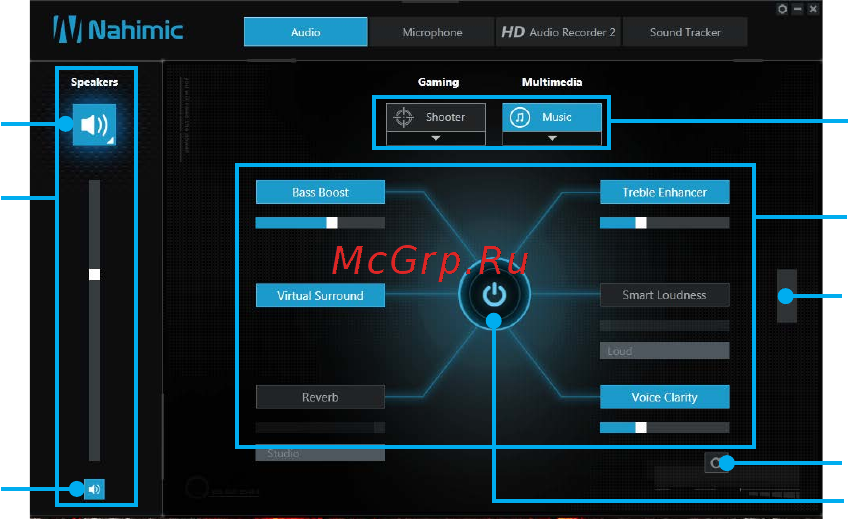

Audio Tab
From this tab, you can access all of Nahimic 2’s audio effects, audio profiles and
settings.
Profiles
Audio Effects
Reset Button
EQ Profile
Page
On/Off Button
Display &
Volume
Mute
Device
properties
y Display & Volume - displays the type of audio rendering device currently being used
as output, as well as its current volume.
Mute - mutes the current audio output device.
Device properties - allows you to change the format, sample rate, bit rate and the
channel gain of the current device (if these options are available for the current
device). Clicks on this button and a device properties panel will show.
y Profiles - allows you to adjust the 6 audio effects to your current listening
experience.
Gaming - allows you to choose an audio profile to fit your gaming experience.
Multimedia - allows you to choose an audio profile to fit your everyday experience.
y Audio Effects - allows you to separately control any of the 6 audio effects.
Bass Boost - increases the energy in low frequencies up to +12 dB.
Virtual Surround
Gaming and Movies - virtualizes the multichannel audio stream and downmixes
it in order to retrieve a multichannel listening experience over your stereo
headphones or speakers.
Music - expands the stereo for a wider sound stage.
Reverb - increases the feeling of space by applying different types of reverbs
corresponding to different room sizes.
Treble Enhancer - Increases the energy in high frequencies up to +12 dB.
