English
24

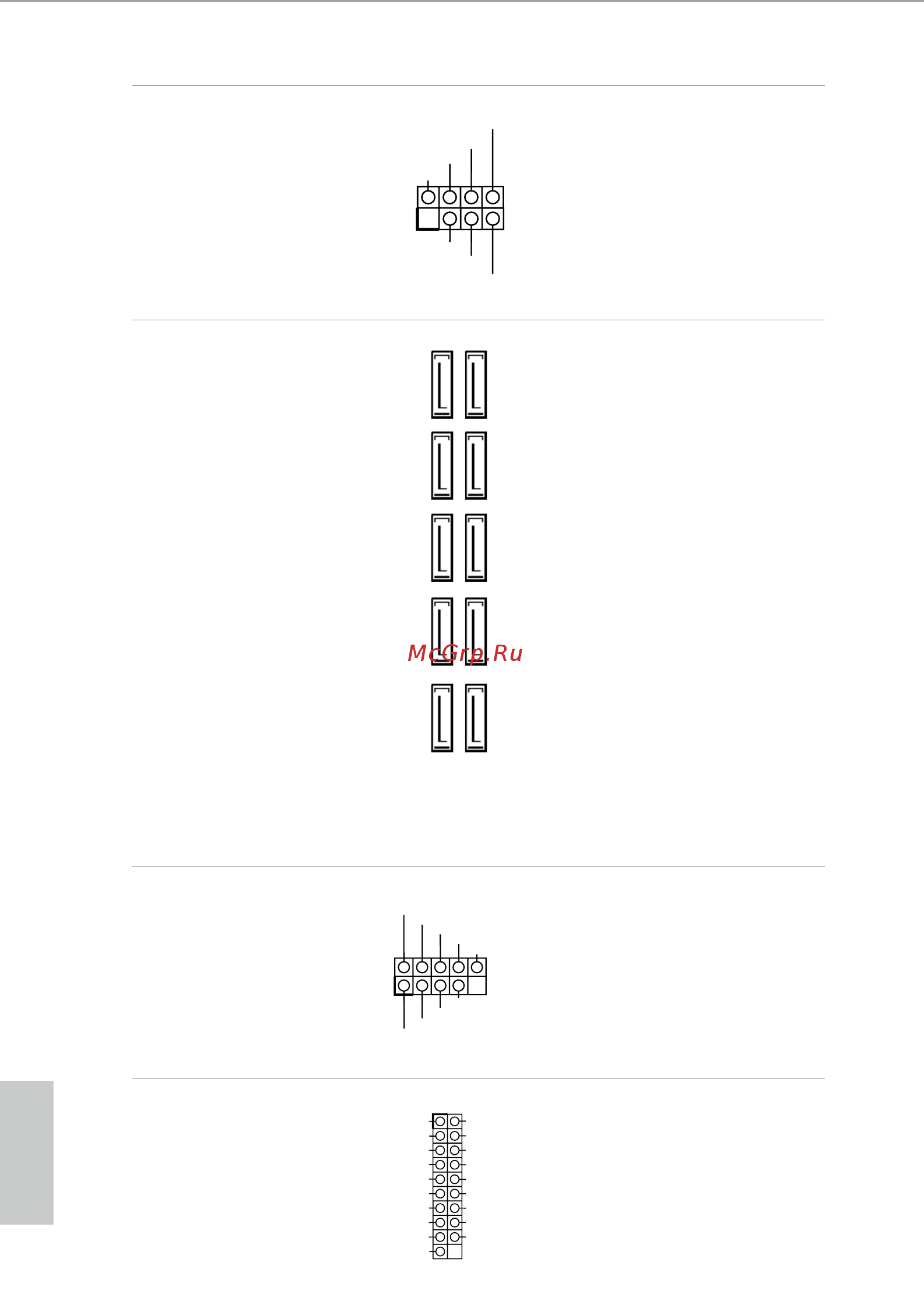

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.7, No. 18)
Please connect the
chassis power LED and
the chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_0_1:
see p.7, No. 13)
(SATA3_2_3:
see p.7, No. 14)
(SATA3_4_5:
see p.7, No. 15)
(SATA3_6_7:
see p.7, No. 16)
(SATA3_A1_A2:
see p.7, No. 17)
ese ten SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
* To minimize the boot
time, use Intel® X299
SATA ports (SATA3_0~7)
for your bootable devices.
* If M2_1 is occupied by
a SATA-type M.2 device,
SATA3_1 will be disabled.
* If M2_2 is occupied by
a SATA-type M.2 device,
SATA3_0 will be disabled.
* If M2_3 is occupied by
a SATA-type M.2 device,
SATA3_7 will be disabled.
USB 2.0 Headers
(9-pin USB3_4)
(see p.7, No. 23)
(9-pin USB5_6)
(see p.7, No. 22)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.1 Gen1 Headers
(19-pin USB3_5_6)
(see p.7, No. 12)
ere are two headers on
this motherboard. Each
USB 3.1 Gen1 header can
support two ports.
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
SATA3_2
SATA3_3
SATA3_4
SATA3_5
SATA3_6
SATA3_7
SATA3_A1
SATA3_A2
SATA3_0
SATA3_1
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusV
V
bus
IntA_PA_SSRX-
IntA_P
A_SSRX+
GND
IntA_PA_SSTX-
IntA_P
A_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
