3-124
Confidential
10.7 T2 clutch
(1) Release the T2 clutch harness from the securing fixtures.
(2) Release the hook on the T2 clutch, and remove the T2 clutch from the LT unit.

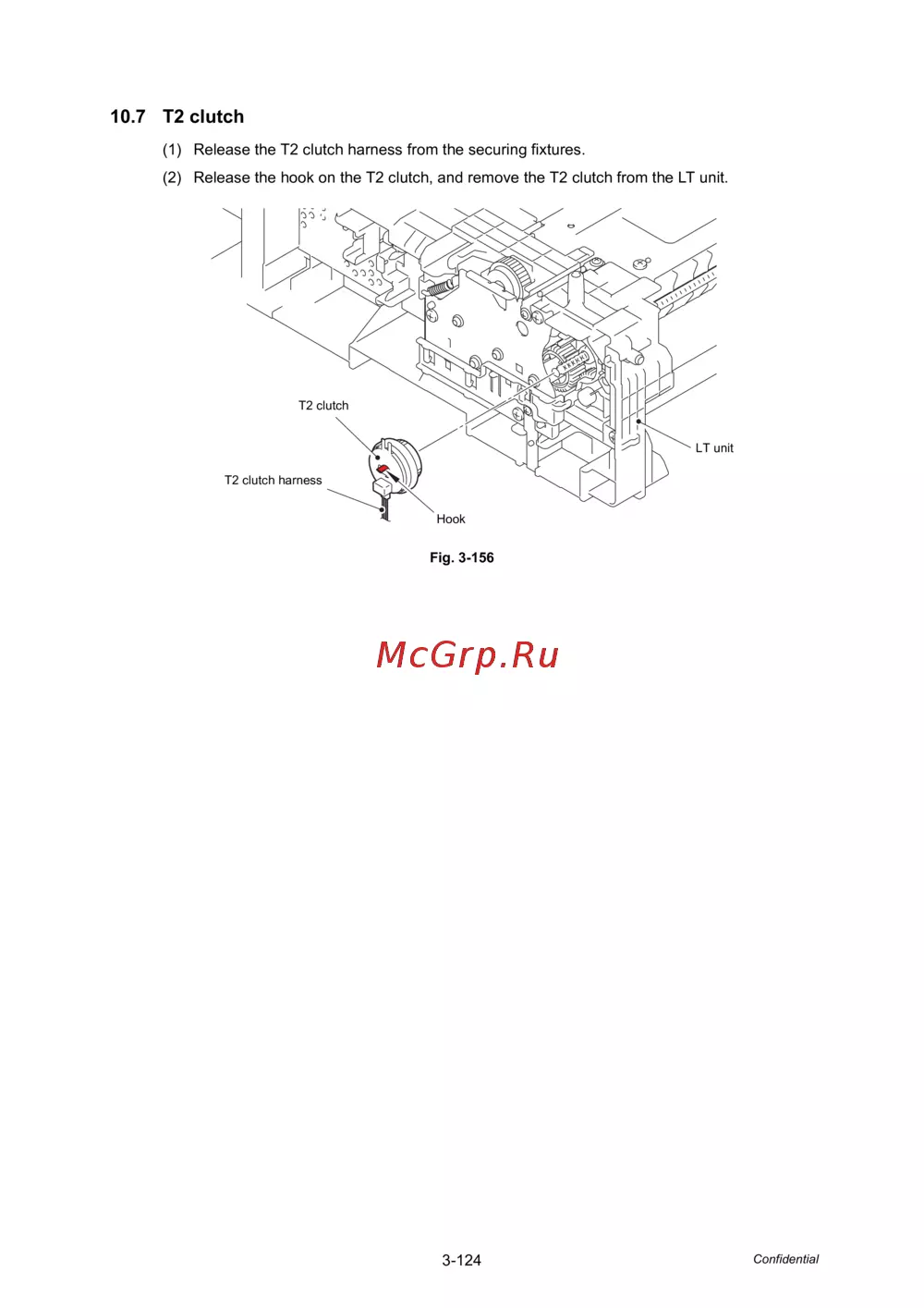

Fig. 3-156
Hook
LT unit
T2 clutch
T2 clutch harness
