3-16
Confidential

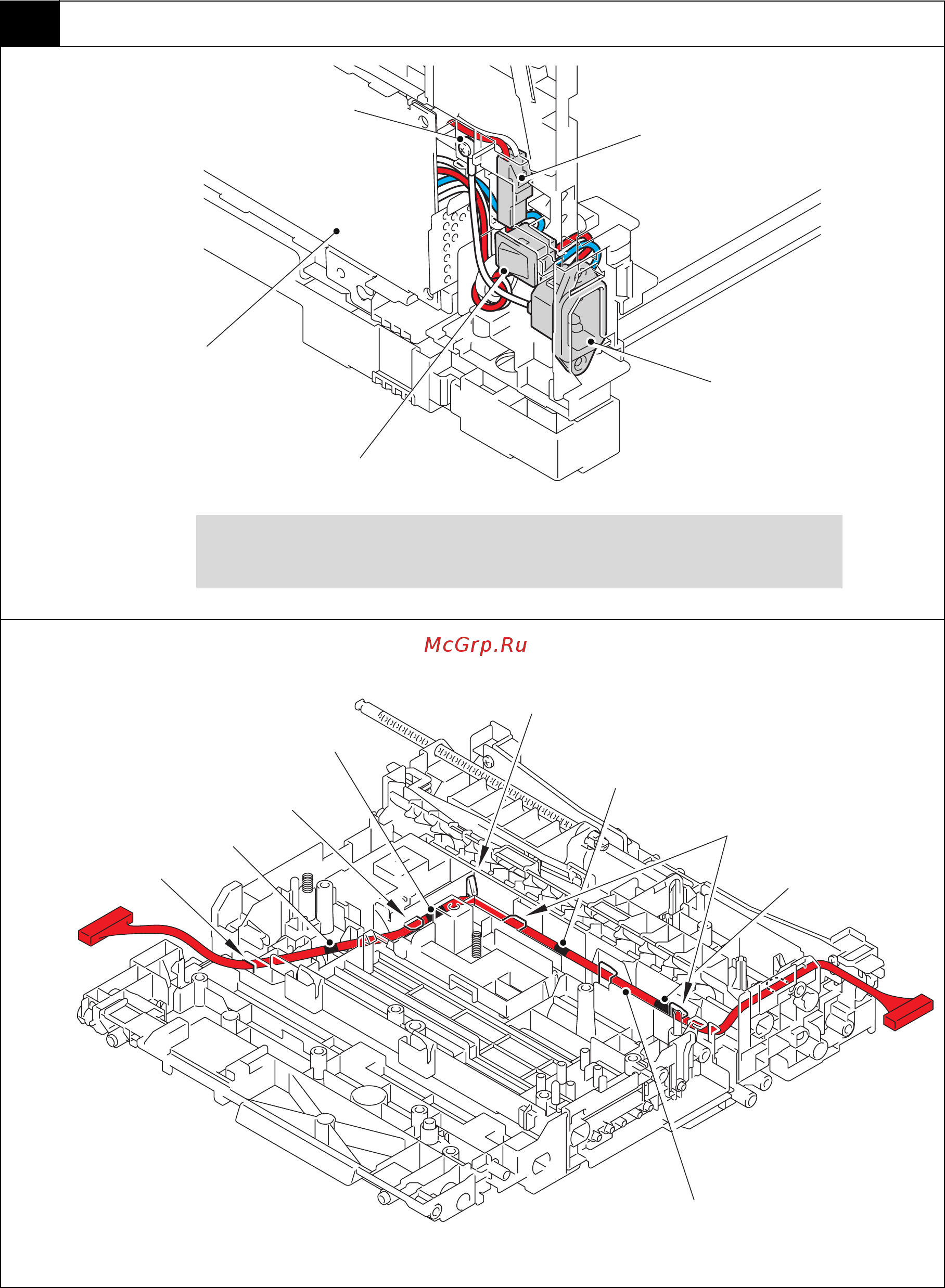

7 Low-voltage power supply PCB ASSY
Harness colors may be changed for any reason.
Low-voltage power
supply PCB ASSY
Low-voltage-heater harness
Inlet
Power switch
Earth harness
Note:
• Attach the Earth harness outermost over the heater harness.
Hook
Tape
Hooks
Tape
Low-voltage power supply
harness (WH)
Tape
Tape
Hook
Hole
