5-11
Confidential
[2] Print worker switch (WSW) setting data (function code: 11)
<Function>
This function is used to print the setting items of the worker switches and the set details.
<Operation Procedure>
(1) Press the [1] button twice in the initial state of maintenance mode. "PRINTING" is

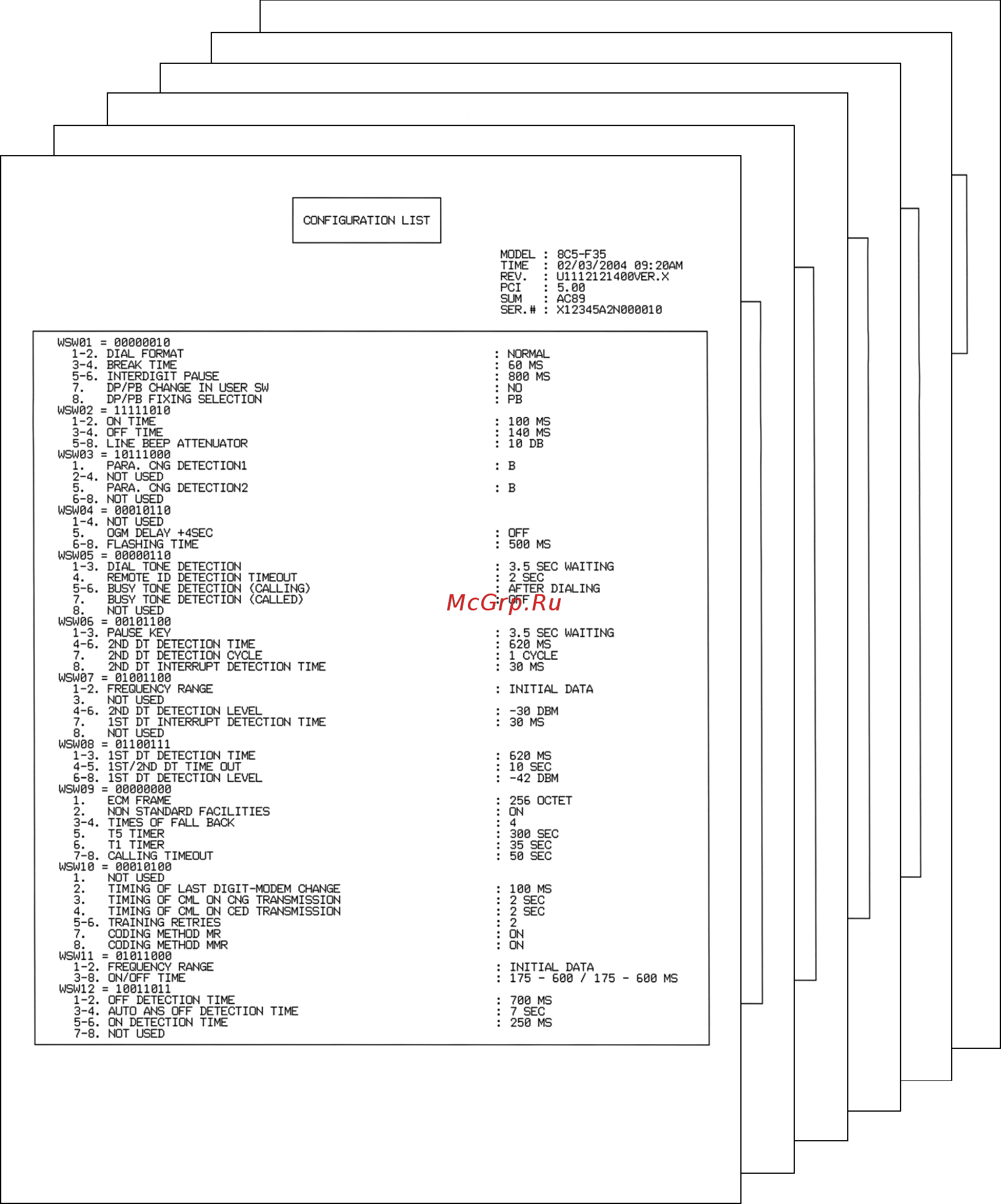

displayed on the LCD and the Configuration List shown below is printed.
When there is no paper in the paper tray, printing is cancelled.
(2) When printing is completed, the machine returns to the initial state of maintenance
mode.
Fig. 5-3
