Chapter 1: Overview
1-3

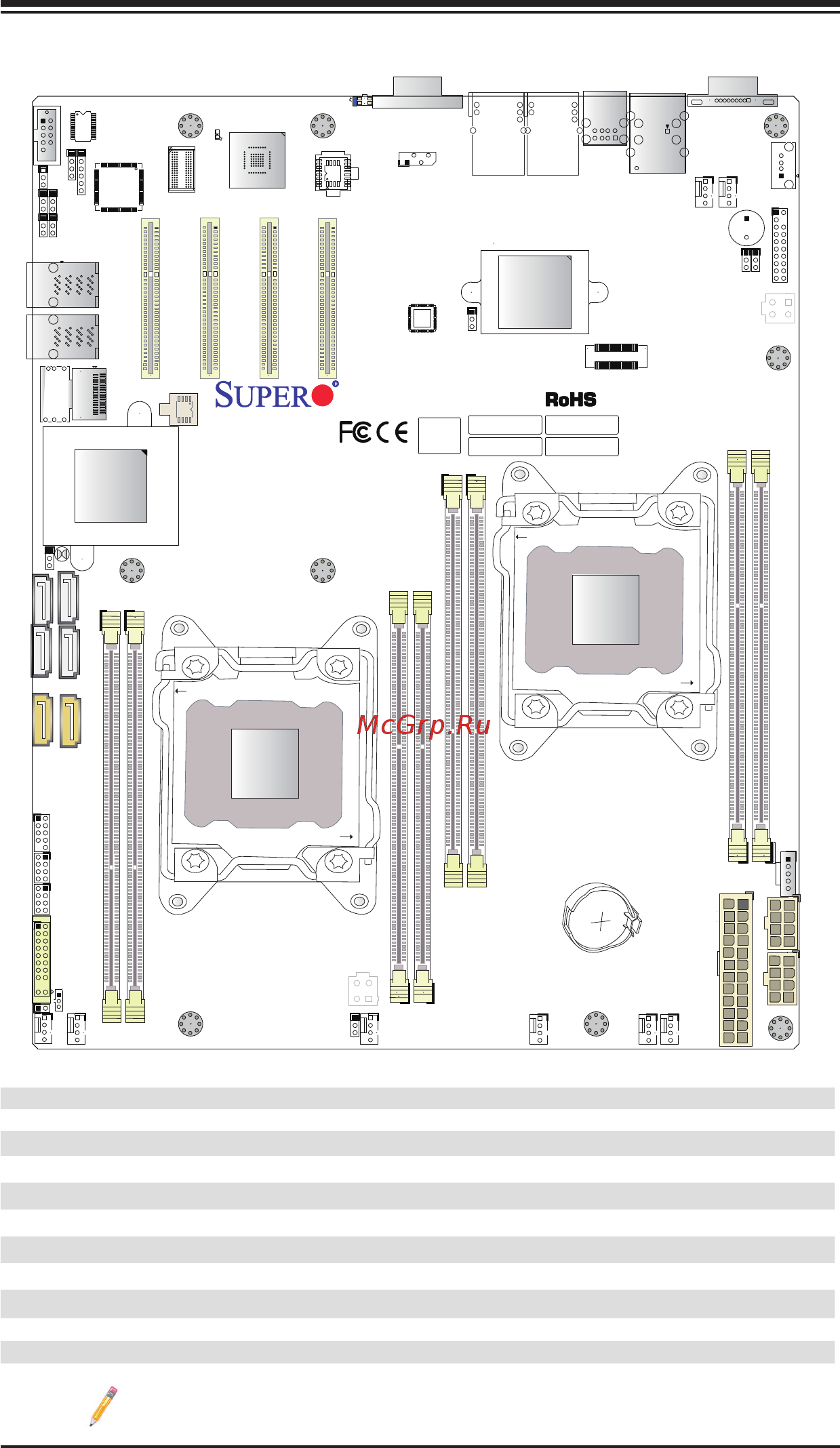

Motherboard Layout
Note: For the latest CPU/Memory updates, please refer to our website at
http://www.supermicro.com/products/motherboard/ for details.
Differences between X10DRD-L/LT/i/iT/iNT
X10DRD-L X10DRD-LT X10DRD-i X10DRD-iT X10DRD-iNT
P1-NVME Ports 0/1 (2 x4) No No No No Yes
CPU1 Slot 4/Slot 5 PCI-E 3.0 x8 (CPU1 req'd) No No Yes Yes Yes
CPU1 Slot 6 PCI-E 3.0 x8 (CPU1 req'd) Yes Yes Yes Yes Yes
CPU2 Slot 7 PCI-E 3.0 x8 (CPU2 req'd) No No Yes Yes Yes
Gigabit LAN Ports 1/2 supported by Intel i350 Yes No Yes No No
10G_LAN Ports 1/2 supported by Intel X540 No Yes No Yes Yes
i-Pass Connector (w/s-SATA 0-3) No No Yes Yes Yes
Total SATA 3.0 connections supported 6 6 10 10 10
SATA DOMs (Powered SATA DOMs) 2 2 2 2 2
iPass Connector 0 0 1 1 1
CLOSE 1st
OPEN 1st
SAN MAC
BAR CODE
MAC CODE
IPMI CODE
JBAT1
JUSBRJ45
S-SATA0-3
X10DRD-L(T)/i(T)/iNT
REV:1.00
BIOS
LICENSE
I-SATA5
I-SATA4
I-SATA0
I-SATA1
I-SATA3
I-SATA2
JSTBY1
JL1
FAN3
FAN7
FAN8
FAN5
FAN6
I-SGPIO2
I-SGPIO1
JTPM1
JPWR1
JPWR3
JF1
JPI2C1
JPL1
JVRM_I2C2
JVRM_I2C1
JPME2
JI2C2
JWD1
JI2C1
JPG1
LEDM1
LED1
JUIDB1
SP1
CPU1 SLOT4 PCI-E 3.0 X8
P1_NVME0
P1_NVME1
P2-DIMMG1
P2-DIMMH1
P1-DIMMC1
P1-DIMMB1
P1-DIMMD1
P1-DIMMA1
IPMI_LAN
COM1
COM2
USB4/5
CPU1 SLOT5 PCI-E 3.0 X8
CPU1
CPU1 SLOT6 PCI-E 3.0 X8
CPU2 SLOT7 PCI-E 3.0 X8
VGA
LAN1
USB2/3
USB0/1
USB6
JPWR2
FAN2
FAN1
FAN4
P2-DIMMF1
P2-DIMME1
JPB1
CPU2
PCH
BMC
AST2400
Intel LAN
CTRL
(For -iNT only)
BIOS
CLOSE 1st
OPEN 1st
JIPMB1
LAN2
(For -i(T)/iNT only)
JBT1
