Connecting your equipment03
30
En

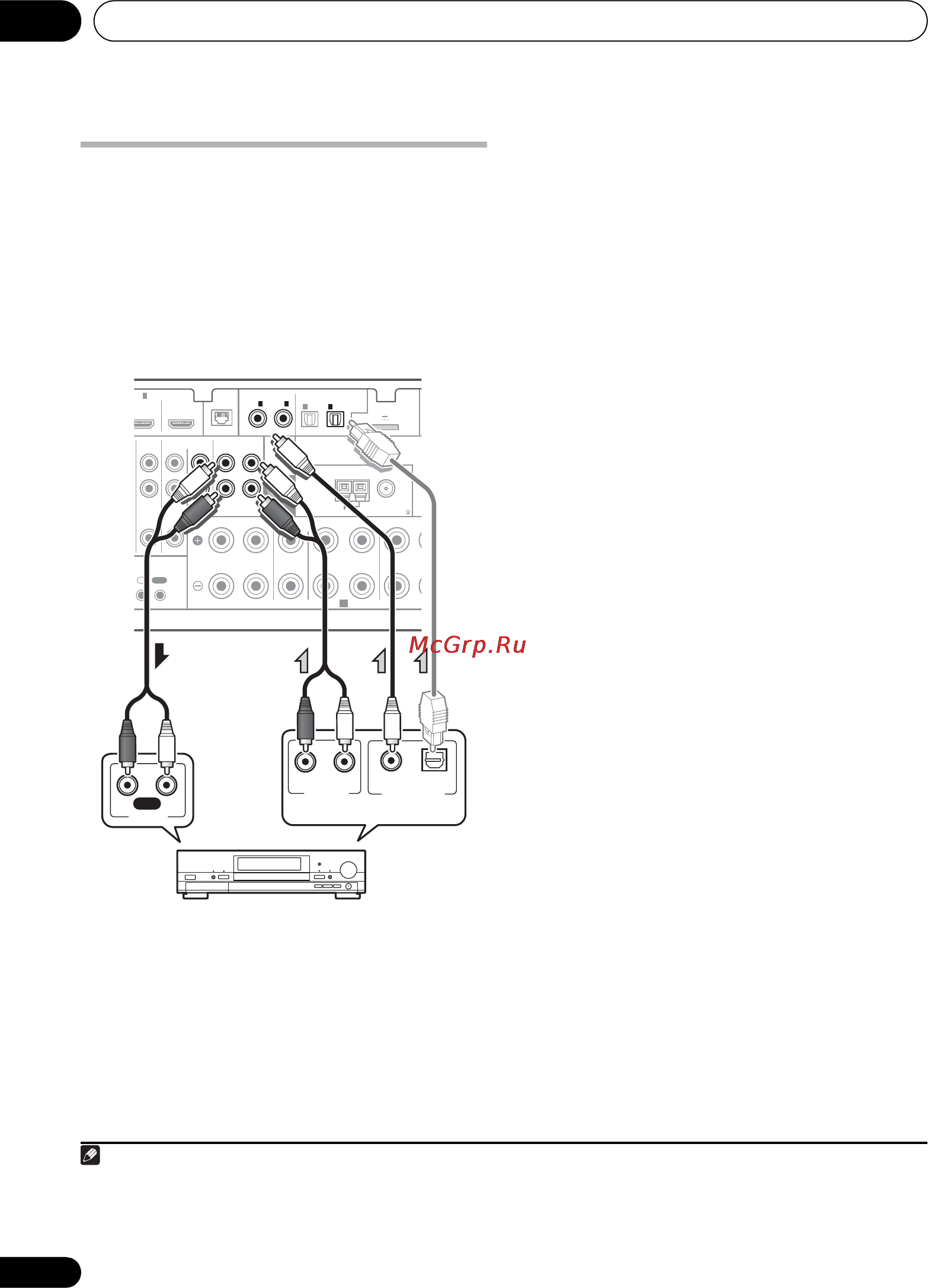

Connecting other audio
components
This receiver has both digital and analog
inputs, allowing you to connect audio
components for playback.
One of these inputs have corresponding outputs
for use with analog audio recorders.
• If the connection was made using an
optical cable, you’ll need to tell the receiver
which digital input you connected the
component to (see The Input Setup menu
on page 42).
• If your turntable has line-level outputs (i.e.,
it has a built-in phono pre-amp), connect it
to the CD inputs instead.
• If you’re connecting a recorder, connect
the analog audio outputs to the analog
audio inputs on the recorder.
About the WMA9 Pro decoder
This unit has an on-board Windows Media™
Audio 9 Professional
1
(WMA9 Pro) decoder, so
it is possible to playback WMA9 Pro-encoded
audio using HDMI, coaxial or optical digital
connection when connected to a WMA9 Pro-
compatible player. However, the connected
DVD player, set-top box, etc. must be able to
output WMA9 Pro format audio signals
through a coaxial or optical digital output.
ASSIGNABLE
ASSIGNABLE
(
DVD
)
(
DVR/BDR
)
R
FRONT CENTER SURROUND
SURROUN
D
LR LR
CD-R/TAPE
OUT IN
CD
IN
TV/SAT
IN
VIDEO
IN
(
OUTPUT 5 V 100 mA MAX
)
(
CD
)
SUBWOOFER
(
TV/SAT
)
AM LOOP
FM UNBAL 75
PRE OUT
ANTENNA
OPTICAL
ADAPTER PORT
CONTROL
SPEAKERS
LAN
COAXIAL
IN
OUT
(
10/100
)
IN
1
IN
2
4
IN
1
A
IN
2
IN
OUT
ANALOG
RL
AUDIO OUT
DIGITAL OUT
COAXIAL OPTICAL
RL
AUDIO IN
REC
CD-R, MD, DAT, etc.
Select one
VSX-1020/VSX-1025
Note
1• Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United
States and/or other countries.
• With WMA9 Pro, sound problems may occur depending on your computer system. Note that WMA9 Pro 96 kHz
sources will be downsampled to 48 kHz.
VSX-1020_SYXCN.book 30 ページ ２０１０年３月１２日 金曜日 午前９時１０分
