Connecting your equipment 03
31
En
English
Français
Deutsch
Nederlands
Italiano
Español

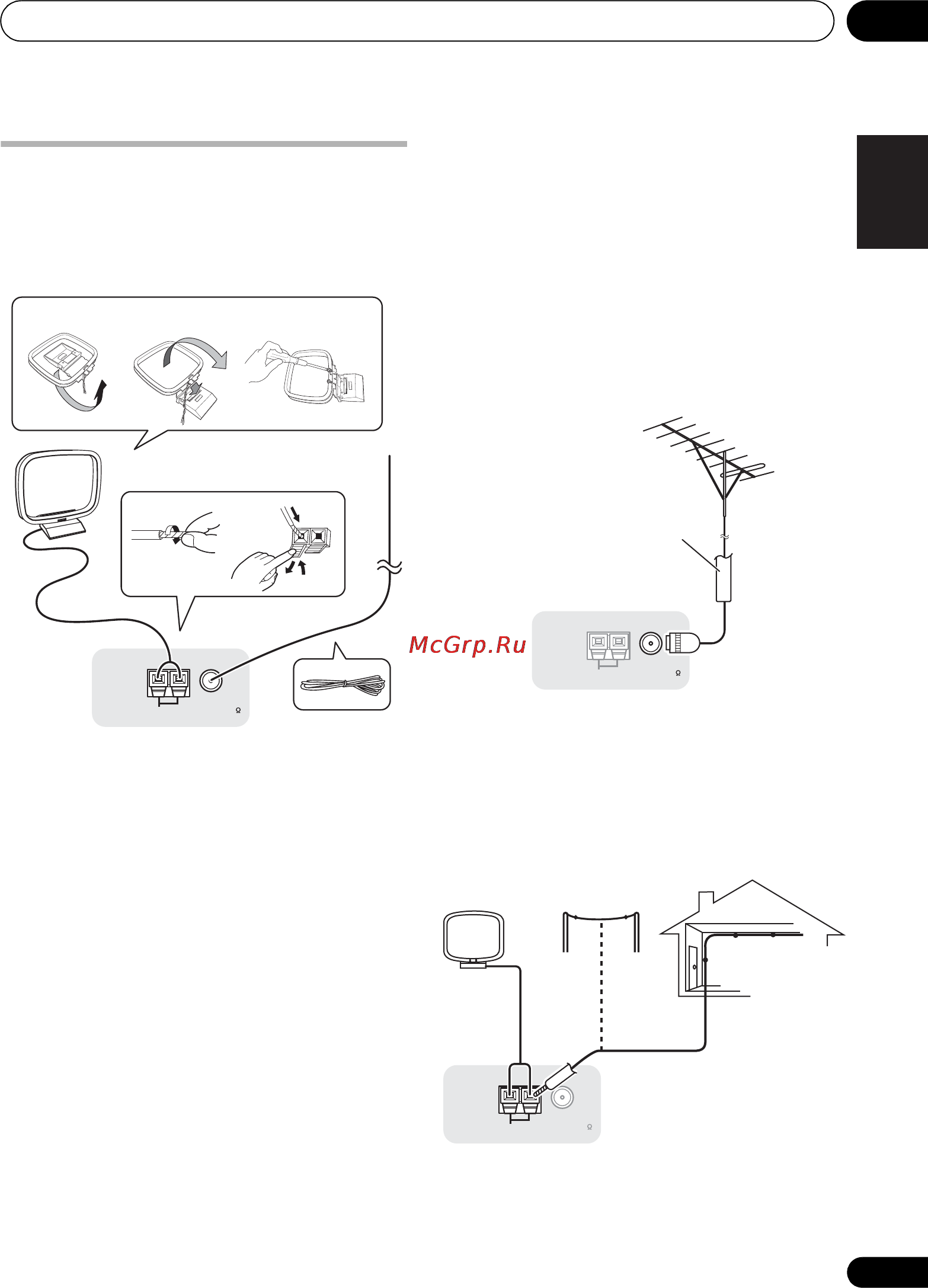

Connecting AM/FM antennas
Connect the AM loop antenna and the FM wire
antenna as shown below. To improve reception
and sound quality, connect external antennas
(see Connecting external antennas below).
1 Pull off the protective shields of both AM
antenna wires.
2 Push open the tabs, then insert one wire
fully into each terminal, then release the tabs
to secure the AM antenna wires.
3 Fix the AM loop antenna to the attached
stand.
To fix the stand to the antenna, bend in the
direction indicated by the arrow (fig. a) then
clip the loop onto the stand (fig. b).
• If you plan to mount the AM antenna to a
wall or other surface, secure the stand with
screws (fig. c) before clipping the loop to
the stand. Make sure the reception is clear.
4 Place the AM antenna on a flat surface
and in a direction giving the best reception.
5 Connect the FM wire antenna into the FM
antenna socket.
For best results, extend the FM antenna fully
and fix to a wall or door frame. Don’t drape
loosely or leave coiled up.
Connecting external antennas
To improve FM reception connect an external
FM antenna to FM UNBAL 75 Ω.
To improve AM reception, connect a 5 m to 6 m
length of vinyl-coated wire to the AM LOOP
terminals without disconnecting the supplied
AM loop antenna.
For the best possible reception, suspend
horizontally outdoors.
AM LOOP
FM UNBAL 75
ANTENNA
3
4
5
fig. a fig. b fig. c
1
2
AM LOOP
FM UNBAL 75
ANTENNA
75 Ω coaxial cable
AM LOOP
FM UNBAL 75
ANTENNA
Outdoor
antenna
5 m to 6 m
Indoor antenna
(vinyl-coated wire)
VSX-1020_SYXCN.book 31 ページ ２０１０年３月１２日 金曜日 午前９時１０分
