Connecting your equipment 03
33
En
English
Français
Deutsch
Nederlands
Italiano
Español

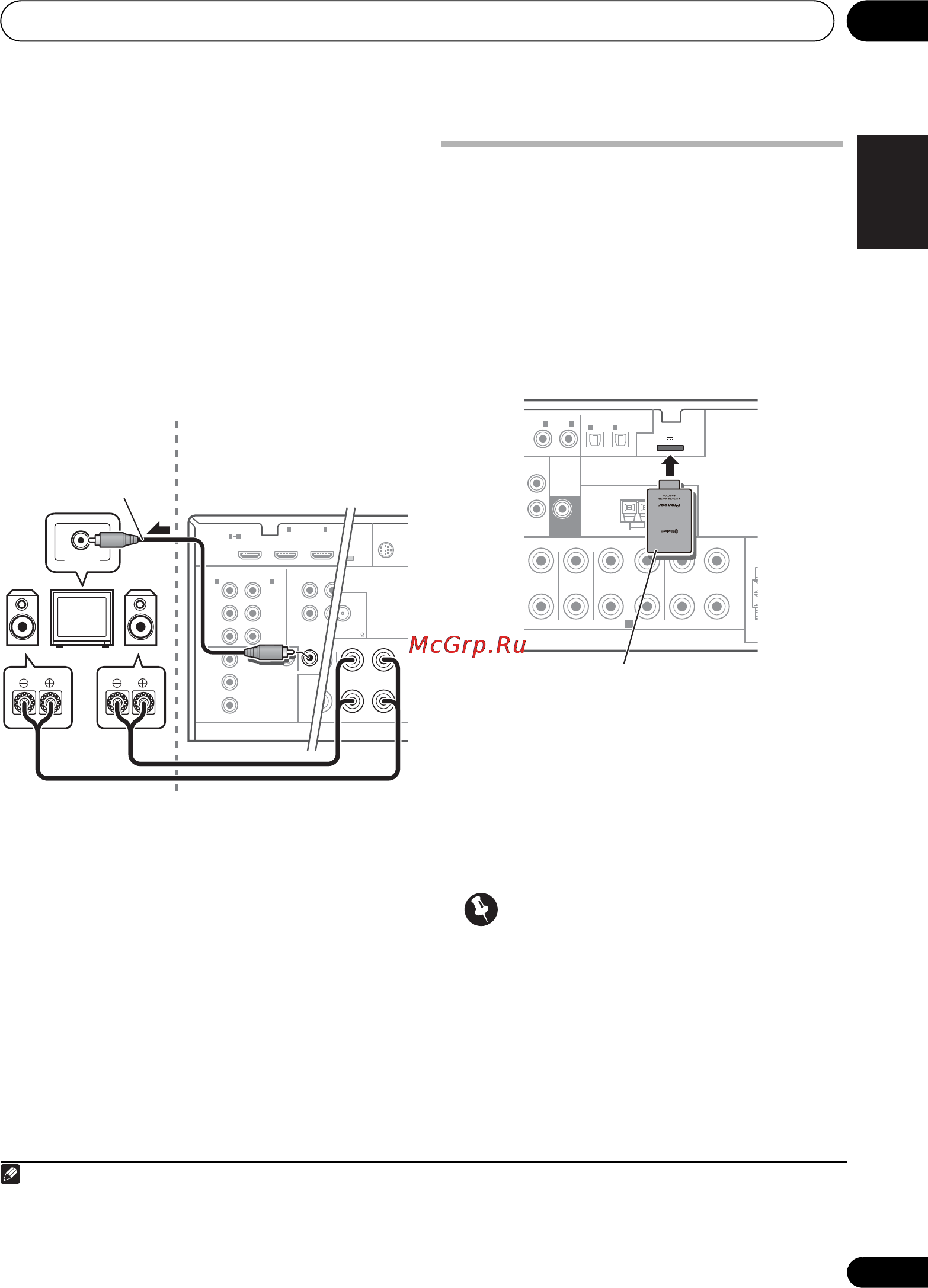

MULTI-ZONE setup using speaker
terminals (ZONE 2)
You must select ZONE 2 in Speaker system
setting on page 101 to use this setup.
1 Connect a pair of speakers to the
surround back speaker terminals on this
receiver.
2
VSX-1020/VSX-1025 only:
Connect a TV
monitor to the
VIDEO ZONE 2 OUT
jacks on
this receiver.
Connecting Optional
Bluetooth
ADAPTER
When the Bluetooth ADAPTER (Pioneer Model
No. AS-BT100) is connected to this receiver, a
product equipped with Bluetooth wireless
technology (portable cell phone, digital music
player, etc.) can be used to listen to music
wirelessly.
1
• Switch the receiver into standby and
connect
Bluetooth
ADAPTER to the
ADAPTER PORT
.
• For instructions on playing the contents of
Bluetooth wireless technology device, see
Bluetooth® ADAPTER for Wireless
Enjoyment of Music on page 53.
Important
• Do not move the receiver with the
Bluetooth ADAPTER connected. Doing so
could cause damage or faulty contact.
ABLE
D
SURROUND BACK
L RL
OUTPUT 5 V 500 mA MAX
)
(
Single
)
OP
FM UNBAL 75
AL
SIRIU
ADAPTER PORT
IN
HDMI
ASSIGNABLE
P
B
P
R
ASSIGNABLE
(
DVD
)
Y
P
B
P
R
Y
P
B
P
R
Y
L
R
ZONE 2
OUT
DVR
OUT
(
DVR/BDR
)
COMPONENT VIDEO
AUDIO
VIDEO
MONITOR
OUT
BD IN IN IN
1
IN
1
IN
2
1 4
2
VIDEO IN
RL
Main zone
Sub zone
VSX-1020/VSX-1025
VSX-1020/VSX-1025 only
Note
1• The Bluetooth wireless technology enabled device must supports A2DP profiles.
• Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology
enabled devices.
ASSIGNABLE
ASSIGNABLE
(
DVD
)
(
DVR/BDR
)
ONT CENTER SURROUND
SURROUND BACK
FRO
LR LR L
TAPE
IN
(
OUTPUT 5 V 100 mA MAX
)
(
CD
)
(
Single
)
SUBWOOFER
(
TV/SAT
)
AM LOOP
FM UNBAL 75
PRE OUT
ANTENNA
OPTICAL
ADAPTER PORT
SPEAKERS
COAXIAL
IN
1
IN
2
IN
1
A
IN
2
Bluetooth
® ADAPTER
VSX-1020/VSX-1025
VSX-1020_SYXCN.book 33 ページ ２０１０年３月１２日 金曜日 午前９時１０分
