Connecting your equipment03
34
En
Connecting to the network
through LAN interface

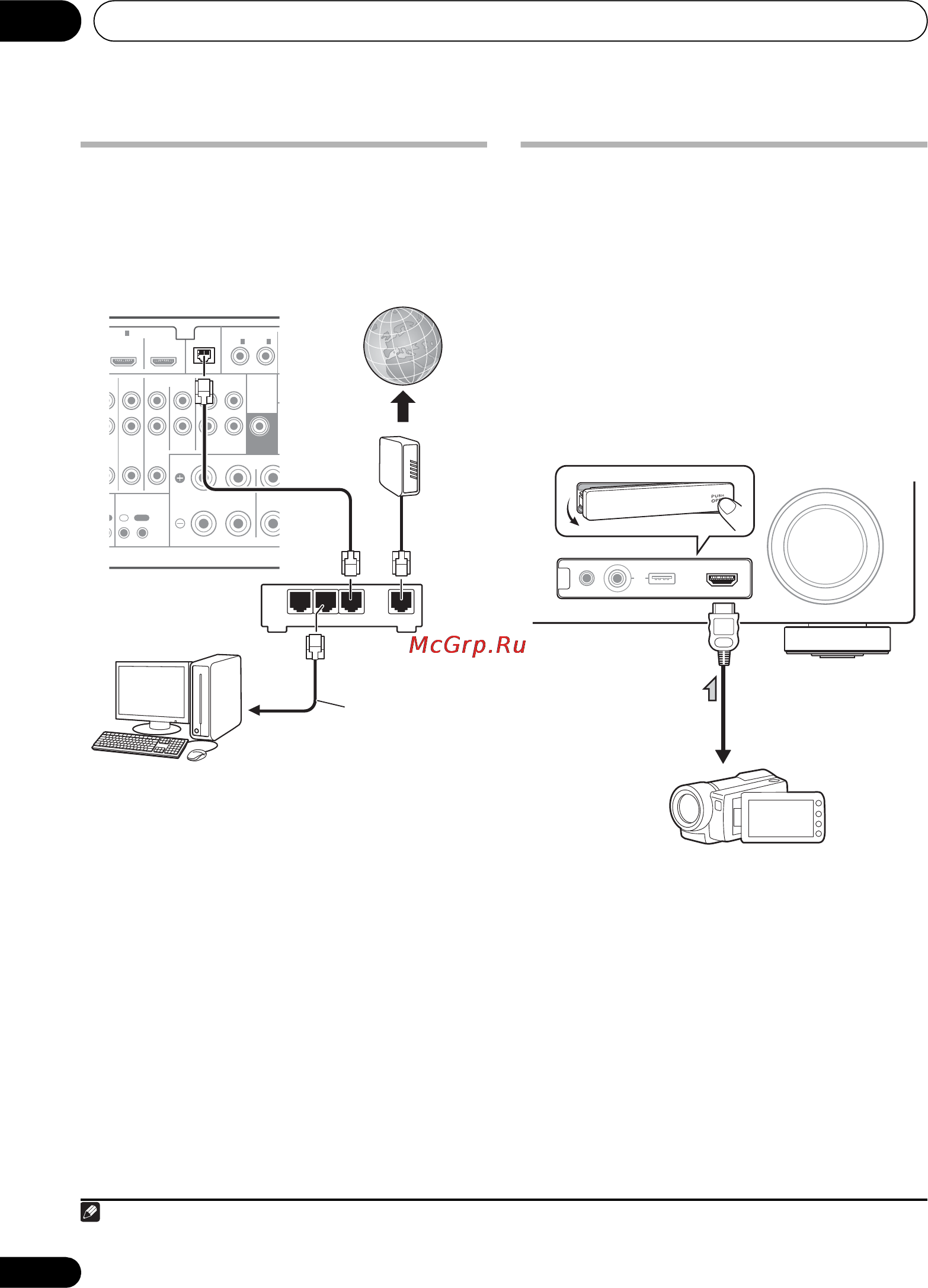

By connecting this receiver to the network via
the LAN terminal, you can listen to Internet
radio stations.
1
Connect the LAN terminal on this receiver to
the LAN terminal on your router (with or
without the built-in DHCP server function) with
a straight LAN cable (CAT 5 or higher).
Turn on the DHCP server function of your
router. In case your router does not have the
built-in DHCP server function, it is necessary to
set up the network manually. For details, see
Network Setup menu on page 104.
LAN terminal specifications
LAN terminal . . . . . . . . . . . . . . . . . . Ethernet jack
10BASE-T/100BASE-TX
Connecting an HDMI-equipped
component to the front panel
input
(VSX-1020/VSX-1025 only)
There is an HDMI input terminal on the front
panel. High quality pictures can be viewed via
the receiver simply by connecting an HDMI-
equipped video camera with a single HDMI
cable. HDMI-equipped components other than
video cameras can also be connected to this
terminal.
Note
1 To listen to Internet radio stations, you must sign a contract with an ISP (Internet Service Provider) beforehand.
ASSIGNABLE
(
DVD
)
R
FRONT CENT
E
L
D
CD-R/TAPE
OUT IN
CD
IN
TV/SAT
IN
VIDEO
IN
(
CD
)
SUBWOOFER
PRE OUT
CONTROL
LAN
COAXIAL
IN
OUT
(
10/100
)
IN
1
IN
2
4
I
T
IN
OUT
WAN
321
LAN
LAN cable
(sold separately)
to LAN port
Router
Modem
Internet
PC
VSX-1020/VSX-1025
CONTROL ON
/
OFF
MASTER
VOLUME
MCACC
SETUP MIC
VIDEO CAMERA
iPod
iPhone
USB HDMI 5
Video camera, etc.
