Connecting your equipment 03
35
En
English
Français
Deutsch
Nederlands
Italiano
Español

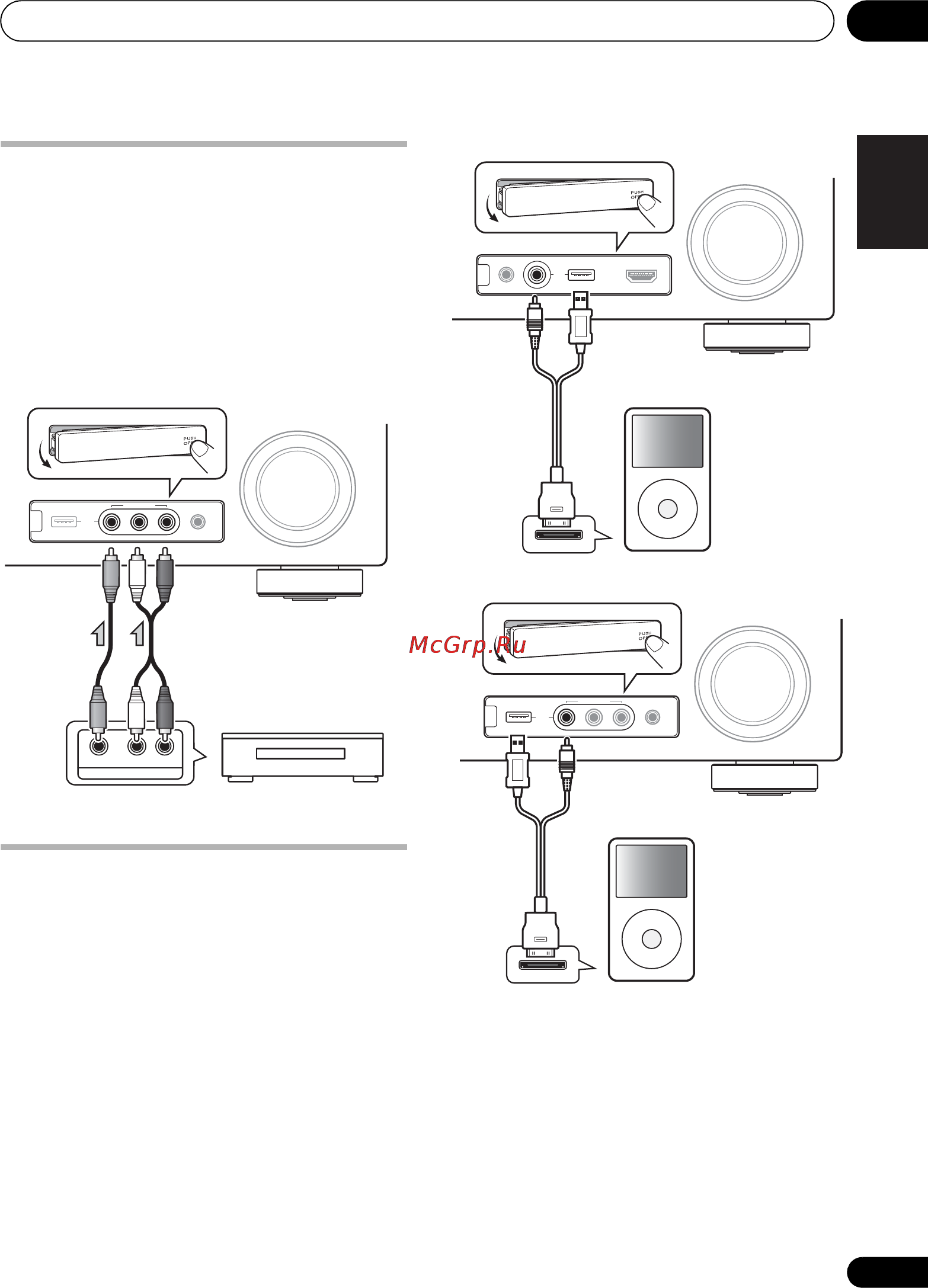

Connecting to the front panel
video terminal
(VSX-920 only)
Front video connections are accessed via the
INPUT SELECTOR dial (front panel) or INPUT
SELECT buttons (remote control). There are
standard audio/video jacks. Hook them up the
same way you made the rear panel
connections.
Connecting an iPod
This receiver has a dedicated iPod terminal
that will allow you to control playback of audio
content from your iPod using the controls of
this receiver.
• Switch the receiver into standby then use
the supplied iPod cable to connect your iPod
to the iPod/iPhone/USB terminal on the front
panel of this receiver.
• It is also possible to connect using the
cable included with the iPod, but in this
case it is not possible to view pictures via
the receiver.
• For the cable connection, also refer to the
operating instructions for your iPod.
VSX-1020/VSX-1025:
VSX-920:
CONTROL ON
/
OFF
MASTER
VOLUME
MCACC
SETUP MIC
VIDEO INPUT
AUDIOLRVIDEO
iPod
iPhone
USB
AUDIOVIDEO
OUTPUT
TV game, video camera, etc.
MASTER
VOLUME
MCACC
SETUP MIC
VIDEO CAMERA
iPod
iPhone
USB HDMI 5
CONTROL ON
/
OFF
MENU
iPod
iPod cable
(supplied)
MASTER
VOLUME
CONTROL ON
/
OFF
MCACC
SETUP MIC
AUDI OLRVIDEO
iPod
iPhone
USB
MENU
VIDEO INPUT
iPod
iPod cable
(supplied)
VSX-1020_SYXCN.book 35 ページ ２０１０年３月１２日 金曜日 午前９時１０分
