Connecting your equipment03
36
En

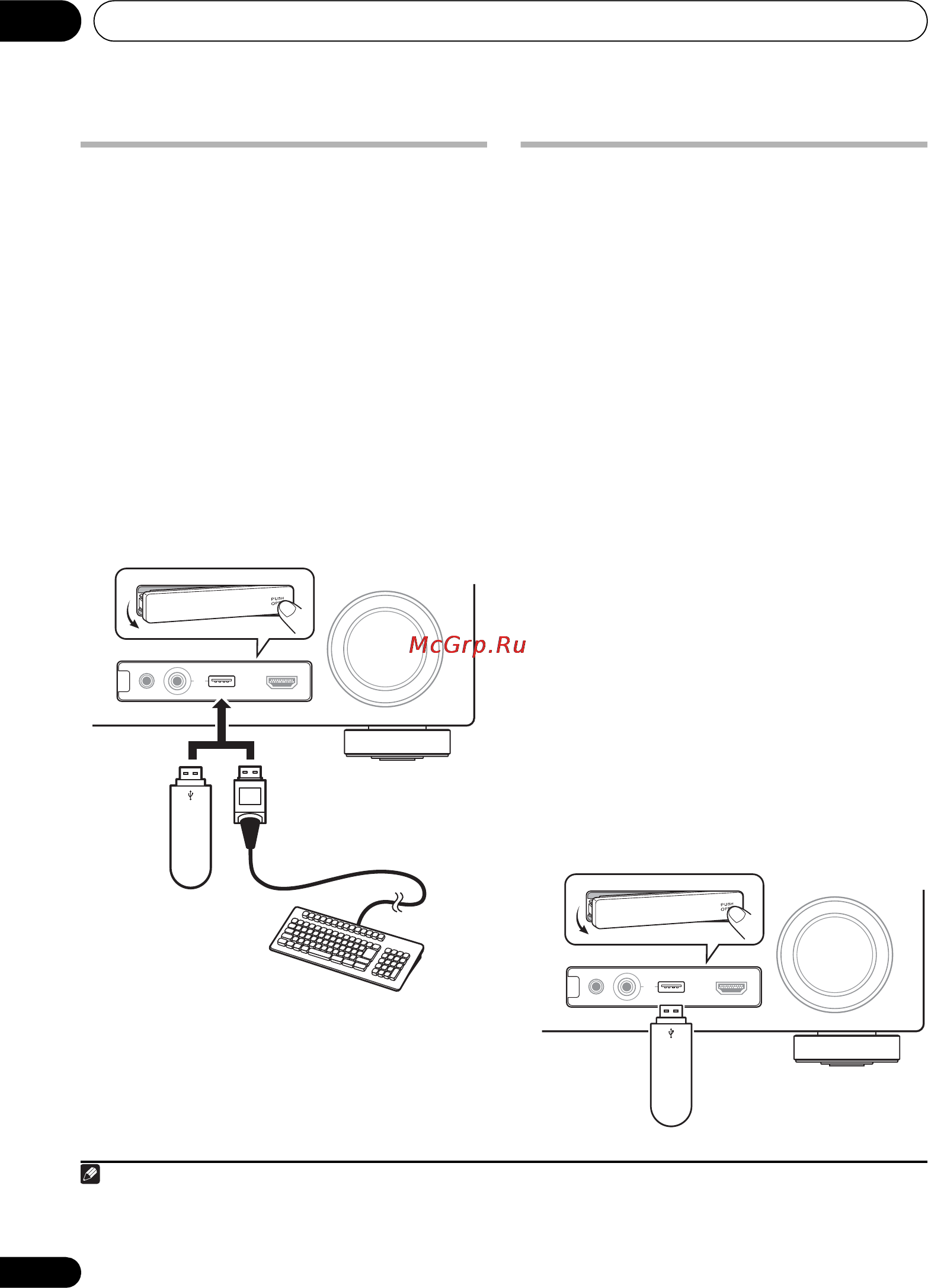

Connecting a USB device
It is possible to play audio and photo files by
connecting USB devices to this receiver. It is
also possible to connect a USB keyboard (US-
international layout) to the receiver to enter text
in the following GUI screens.
• Change the input name in the Input Setup
menu (page 43).
• Add names to radio station presets
(page 51).
• Enter Internet radio station URLs
(page 55)
.
• Switch the receiver into standby then
connect your USB device to the iPod/iPhone/
USB terminal on the front panel of this
receiver.
1
Connecting a USB device for
Advanced MCACC output
When using Auto MCACC (
page 87
) or Acoustic
Calibration EQ Professional (
page 93
) to
calibrate the reverb characteristics of your
listening room, the 3D graphs of the reverb
characteristics in your listening room (before and
after calibration) can be checked on a computer
screen.
The various MCACC parameters can also be
checked on the computer. MCACC data and
parameters are transferred from this receiver
to a USB device and by connecting the USB
device to a computer, the data is imported via
the MCACC software in the computer.
The MCACC software to output the results is
available from the support area of the Pioneer
website (http://www.pioneer.eu). Instructions
for using the software are also available here. If
you have any questions about the software,
please contact the Pioneer Service Center
specified on your warranty card.
See the documentation provided with the
Advanced MCACC PC Display Application
Software for more information.
• For the USB device connection and
operations, see Output MCACC data on
page 97.
2
Note
1 This receiver does not support a USB hub.
MASTER
VOLUME
MCACC
SETUP MIC
VIDEO CAMERA
iPod
iPhone
USB HDMI 5
CONTROL ON
/
OFF
USB mass
storage device
USB keyboard
VSX-1020/VSX-1025
2 The various parameters and the reverb characteristics data used for display on the computer are not cleared when
the power is turned off (see Output MCACC data on page 97).
MASTER
VOLUME
MCACC
SETUP MIC
VIDEO CAMERA
iPod
iPhone
USB HDMI 5
CONTROL ON
/
OFF
USB mass
storage device
VSX-1020/VSX-1025
