DM16-01.01.07en Blanc On-off
Service manual 11

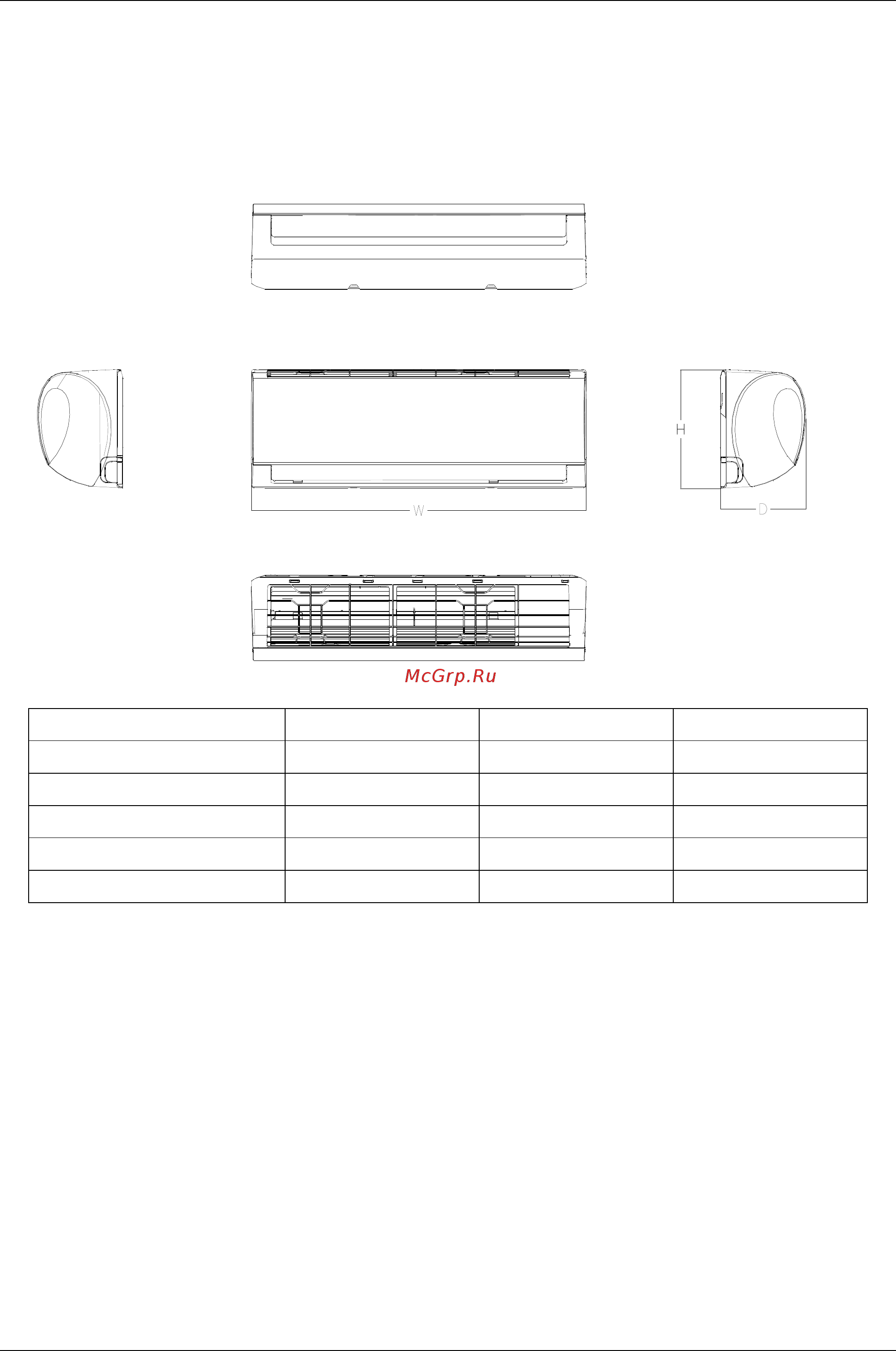

4. Dimension
4.1 Indoor Unit
Model W D H
MSMA1A-07HRN1 715 194 285
MSMA1A-09HRN1 715 194 285
MSMA1B-12HRN1 805 205 285
MSMA1C-18HRN1 957 233 302
MSMA1D-24HRN1 1040 235 327
