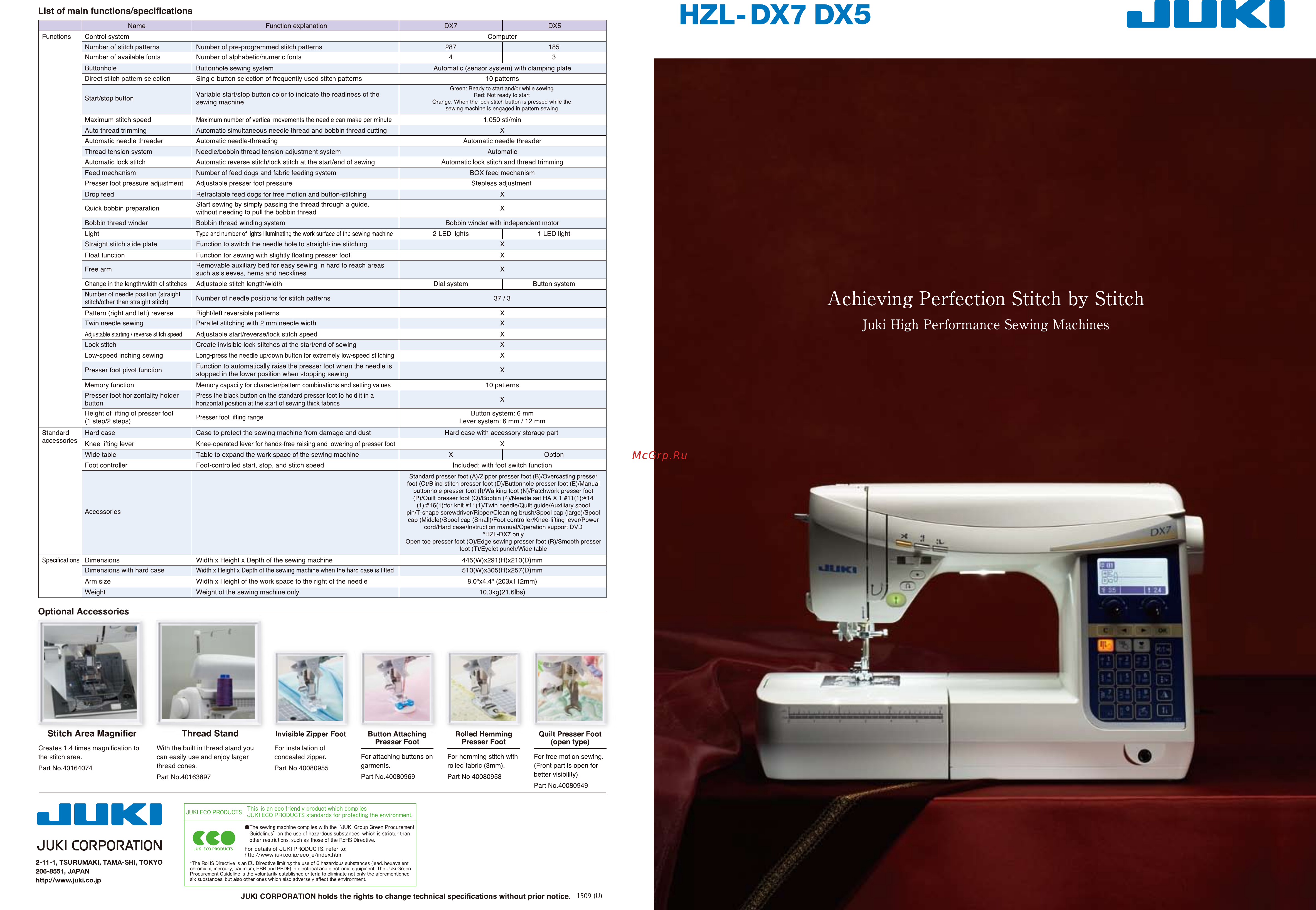

List of main functions specifications Name Functions Standard accessories Function explanation DX7 DX5 Number of stitch patterns Number of pre programmed stitch patterns Number of available fonts Number of alphabetic numeric fonts Buttonhole Buttonhole sewing system 287 185 4 3 Automatic sensor system with clamping plate Direct stitch pattern selection Single button selection of frequently used stitch patterns Start stop button Variable start stop button color to indicate the readiness of the sewing machine 10 patterns Maximum stitch speed Maximum number of vertical movements the needle can make per minute Auto thread trimming Automatic simultaneous needle thread and bobbin thread cutting Automatic needle threader Automatic needle threading Thread tension system Needle bobbin thread tension adjustment system Automatic lock stitch Automatic reverse stitch lock stitch at the start end of sewing Green Ready to start and or while sewing Red Not ready to start Orange When the lock stitch button is pressed while the sewing machine is engaged in pattern sewing 1 050 sti min X Automatic needle threader Automatic Automatic lock stitch and thread trimming Feed mechanism Number of feed dogs and fabric feeding system Presser foot pressure adjustment Adjustable presser foot pressure Drop feed Retractable feed dogs for free motion and button stitching Quick bobbin preparation Start sewing by simply passing the thread through a guide without needing to pull the bobbin thread Bobbin thread winder Bobbin thread winding system Light Type and number of lights illuminating the work surface of the sewing machine Straight stitch slide plate Function to switch the needle hole to straight line stitching X Float function Function for sewing with slightly floating presser foot X Free arm Removable auxiliary bed for easy sewing in hard to reach areas such as sleeves hems and necklines Change in the length width of stitches Adjustable stitch length width Number of needle position straight stitch other than straight stitch Number of needle positions for stitch patterns Pattern right and left reverse Right left reversible patterns X Twin needle sewing BOX feed mechanism Parallel stitching with 2 mm needle width X Stepless adjustment X X Bobbin winder with independent motor 2 LED lights 1 LED light X Dial system Button system Achieving Perfection Stitch by Stitch 37 3 Adjustable starting reverse stitch speed Adjustable start reverse lock stitch speed X Lock stitch Create invisible lock stitches at the start end of sewing X Low speed inching sewing Long press the needle up down button for extremely low speed stitching X Presser foot pivot function Function to automatically raise the presser foot when the needle is stopped in the lower position when stopping sewing X Memory function Memory capacity for character pattern combinations and setting values 10 patterns Presser foot horizontality holder button Press the black button on the standard presser foot to hold it in a horizontal position at the start of sewing thick fabrics Height of lifting of presser foot 1 step 2 steps Presser foot lifting range Hard case Case to protect the sewing machine from damage and dust Knee lifting lever Knee operated lever for hands free raising and lowering of presser foot Wide table Table to expand the work space of the sewing machine Foot controller Foot controlled start stop and stitch speed Juki High Performance Sewing Machines X Button system 6 mm Lever system 6 mm 12 mm Hard case with accessory storage part X X Option Included with foot switch function Standard presser foot A Zipper presser foot B ZOvercasting presser foot C Blind stitch presser foot D ZButtonhole presser foot E Manual buttonhole presser foot l Walking foot N Patchwork presser foot P Quilt presser foot Q Bobbin 4 Needle set HA X 1 11 1 14 1 16 1 for knit 11 1 Twin needle Quilt guide Auxiliary spool pin T shape screwdriver Ripper Cleaning brush Spool cap large ZSpool cap Middle Spool cap Small Foot controller Knee lifting lever Power cord Hard case lnstruct on manual Operation support DVD HZL DX7 only Open toe presser foot O Edge sewing presser foot R Smooth presser foot T Eyelet punch Wide table Accessories Specifications Dimensions Dimensions with hard case Width x Height x Depth of the sewing machine 445 W x291 H x210 D mm Width x Height x Depth of the sewing machine when the hard case is fitted 510 W x305 H x257 D mm Arm size Width x Height of the work space to the right of the needle Weight Weight of the sewing machine only 8 0 x4 4 203x112mm 10 3kg 21 6lbs Optional Accessories Stitch Area Magnifier Creates 1 4 times magnification to the stitch area Part No 40164074 JUKI HZL DX7 DX5 Computer Control system Thread Stand Invisible Zipper Foot With the built in thread stand you can easily use and enjoy larger thread cones For installation of concealed zipper Part No 40080955 Part No 40163897 Button Attaching Presser Foot Rolled Hemming Presser Foot For attaching buttons on garments For hemming stitch with rolled fabric 3mm Part No 40080969 Part No 40080958 Quilt Presser Foot open type For free motion sewing Front part is open for better visibility Part No 40080949 JUKI JUKI CORPORATION 2 11 1 TSURUMAKI TAMA SHI TOKYO 206 8551 JAPAN http www j u ki co jp This is an eco friendly product which complies JUKI ECO PRODUCTS JUKI ECO PRODUCTS standards for protecting the environment The sewing machine complies with the JUKI Group Green Procurement Guidelines on the use of hazardous substances which is stricter than other restrictions such as those of the RoHS Directive For details of JUKI PRODUCTS refer to http www juki co jp eco_e index html The RoHS Directive is an EU Directive limiting the use of 6 hazardous substances lead hexavalent chromium mercury cadmium PBB and PBDE in electrical and electronic equipment The Juki Green Procurement Guideline is the voluntarily established criteria to eliminate not only the aforementioned six substances but also other ones which also adversely affect the environment JUKI CORPORATION holds the rights to change technical specifications without prior notice 1509 U
