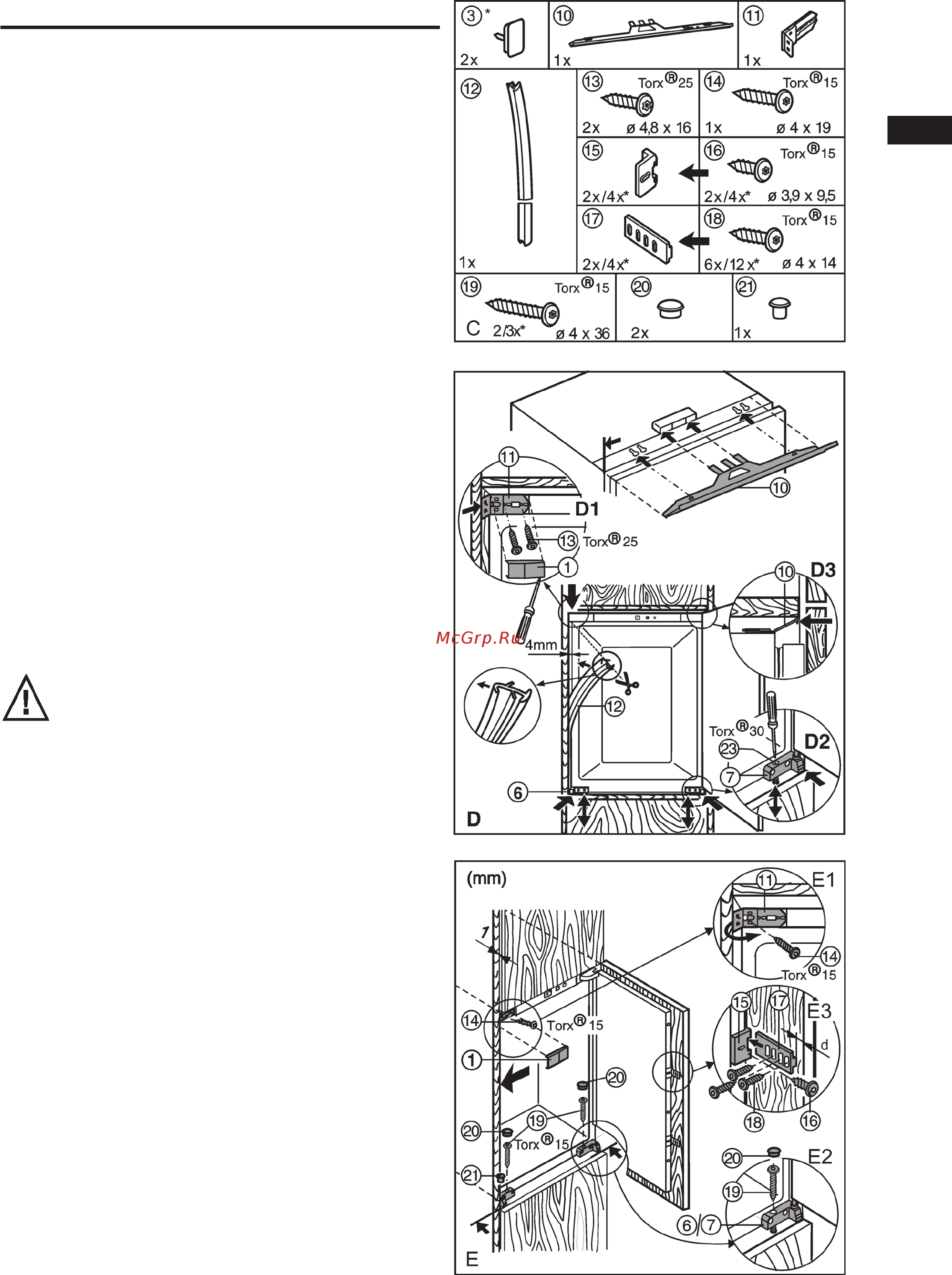

Fastening in kitchen unit
W Fig. C: All installation components are supplied.
W Slide appliance 3/4 of the way into the kitchen unit
W
Fig. D: Fit equaliser trim
bl so as to be ush with the side
wall of the appliance on the handle side: slide it into the
channel and engage it in the key holes
W
Remove cover
1, Fig. D1.
W Screw on fastening bracket
bm with screws bo.
W Slide the appliance into the recess, leaving a gap of ap-
prox. 4 mm on the handle side.Pay attention to the mains
cable!
W
Align the appliance depthwise:
- Align the front edge of the hinges
67 and
- fastening bracket
bm so as to be ush with the front edge of
the unit oor and side wall.
W
Align the appliance heightwise: using the adjusting
screws
co Fig. D2.
W Use sealing strip bn to close the gap between the appli-
ance and the unit wall on the handle side:
Press the seal-
ing strip
bn into the gap, starting at the bottom. Shorten
the sealing strip length to the extent extending to the
bottom edge of the fastening bracket
bm.
W Fig. E: Slide the appliance up to the unit wall (the sealing
strip will be compressed).
W Fasten/x the appliance in the recess using chipboard
screws
bp/bu: through fastening bracket bm at the top
Fig. E1, while pressing the appliance against the wall of
the unit; at the bottom through adjusting screws
co in the
hinge
6/7, Fig. E2.
WARNING
Risk of injury if the door tips!
If the bearing parts have not been suciently tightened the
doorcan tip outwards. In addition the door may not close,
meaning that the appliance does not cool properly.
W
Screw on the bearing brackets/bearing pins tightly to at
least4Nm.
W
Check all of the screws and retighten if necessary.
W
If necessary, align the equaliser trim
bl by moving it parallel
to the ceiling of the unit - it must not be proud, Fig.D3.
W Fig. E: Fold in side part of the fastening bracket
bm.
W Re-engage cover
1.
- Close all holes with stoppers
cl cm.
W Depending on the height of the handle and whether the
door is divided or not, t a door connecting element
bq
Fig. E3.
- With the door wide open, insert the connection rails
bs
and screw onto the unit door. Note distance d to the
outer
edgeoftheunitdoor,d=thicknessofunit
wall.
-
Adjust the door connecting element so that the unit door
does not make contact with the unit wall on the handle
side (gap of approx. 1 mm).
-
If the unit door is large or divided into separate parts, at-
tach another door connector if necessary!
______________________________________________
The manufacturer works constantly on the further develop-
ment of all the types and models. Therefore please under-
stand that we reserve the right to make design, equipment
and technical modications.
