CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Completely undo the screws
Fig. 6 (22)
.
u
Lift off the door complete with turn hinge
Fig. 6 (23)
and
cable. For release, possibly use a flat-blade screwdriver and
carefully lever it under the turn hinge.
u
Set the door aside.

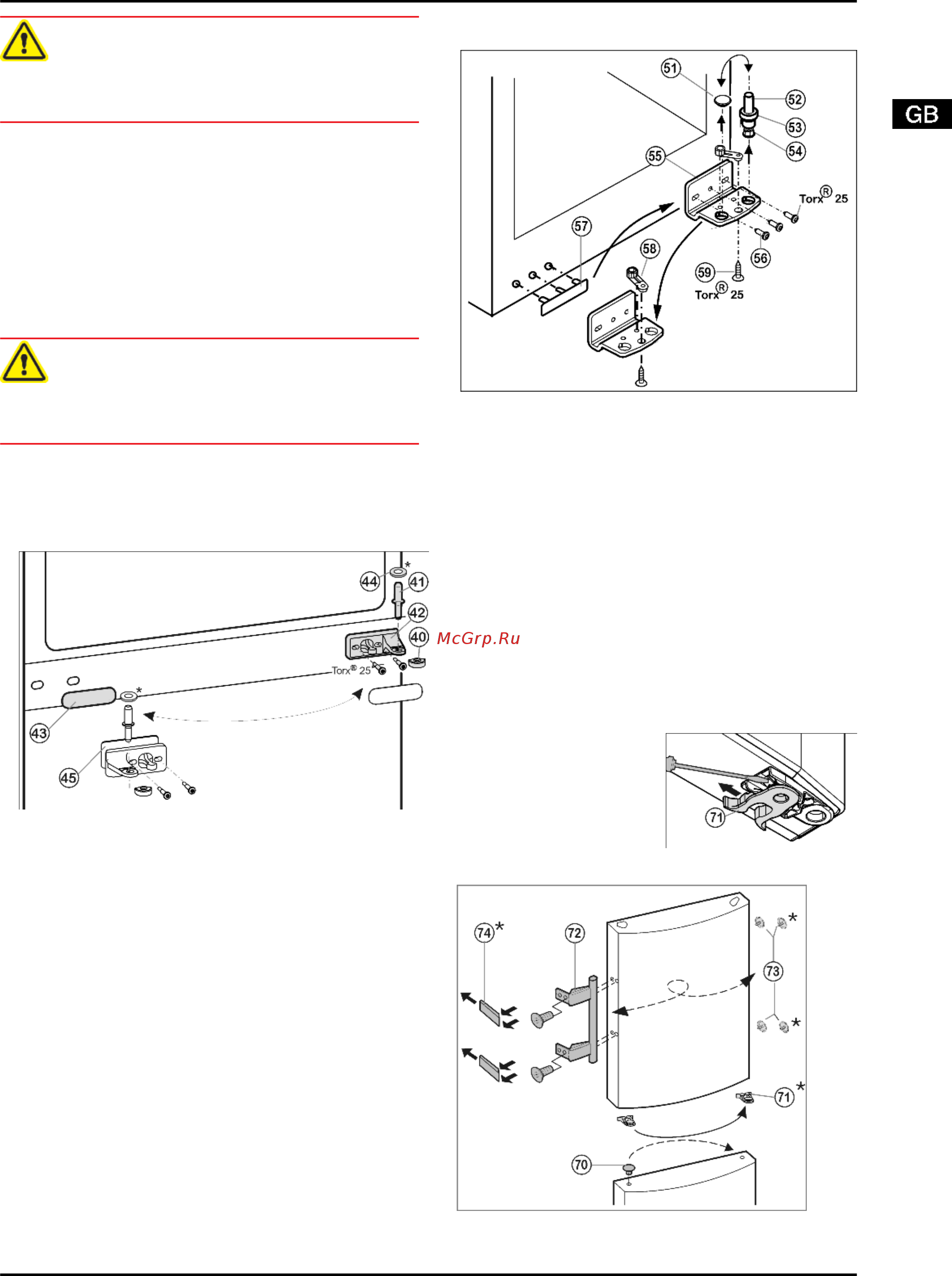

4.3.3 Detaching the lower door
u
Close the lower door.
u
Draw the middle bearing pin
Fig. 7 (41)
out of the turn hinge
and lower door.
u
Remove the plastic cap
Fig. 7 (40)
.
CAUTION
Risk of injury if the door tips!
u
Take good hold of the door.
u
Set down the door carefully.
u
Open the lower door.
u
Unscrew the middle turn hinge (2x Torx® 25).
Fig. 7 (42)
u
Lift off the lower door and set it aside.
4.3.4 Transferring the middle bearing elements
Fig. 7
u
Carefully detach the cover panel
Fig. 7 (43)
.
u
Turn the middle turn hinge
Fig. 7 (42)
with thewasher
Fig. 7 (45)
through 180° and screw it firmly into place on the
new hinge side (with 4 Nm).
u
Turn the cover panel
Fig. 7 (43)
through 180° and snap it
into place again on the new handle side.
4.3.5 Transferring the lower bearing elements
Fig. 8
u
Lift out the bearing pin
Fig. 8 (52)
together with washer
Fig. 8 (53)
and adjustable-height foot
Fig. 8 (54)
.
u
Lift off the stopper
Fig. 8 (51)
.
u
Unscrew
Fig. 8 (56)
the turn hinge
Fig. 8 (55)
.
u
Unscrew
Fig. 8 (59)
the bearing element
Fig. 8 (58)
, transfer
it to the opposite location hole of the turn hinge and screw it
firmly into place.
u
Carefully lift off the cover on the handle side
Fig. 8 (57)
and
transfer it to the opposite side.
u
Screw the turn hinge
Fig. 8 (55)
firmly into place on the new
hinge side, possibly using a cordless screwdriver (with
4 Nm).
u
Re-insert the stopper
Fig. 8 (51)
into the other hole.
u
Re-insert the bearing pin
Fig. 8 (52)
together with the
washer and adjustable-height foot. In so doing, pay attention
that the locating lug points backwards
4.3.6 Transferring the handles
u
Transfer the spring clamp
Fig. 9 (71)
: Depress the
latch nose and pull the
spring clamp off over it.
u
Slide the spring clamp
into place on the new
hinge side until it clicks
into place.
Fig. 9
Fig. 10
Putting into operation
* Depending on model and options 7
