u
On the bottom door: Lift the stopper
Fig. 10 (70)
out of the
door bearing bush and transfer it.
u
On both doors: Detach door handle
Fig. 10 (72)
, stopper
Fig. 10 (73)
and pressure plates
Fig. 10 (74)
and transfer to
the opposite side.
u
When fitting the pressure plates on the opposite side, make
sure they snap properly into place.*
4.3.7 Fitting the lower door
u
Place the door from above onto the bearing pin
Fig. 8 (52)
.
u
Close the door.
u
Place the plastic cap
Fig. 7 (40)
back on the middle turn
hinge
Fig. 7 (42)
u
Pass the middle bearing pin
Fig. 7 (41)
through the middle
turn hinge
Fig. 7 (42)
into the lower door.

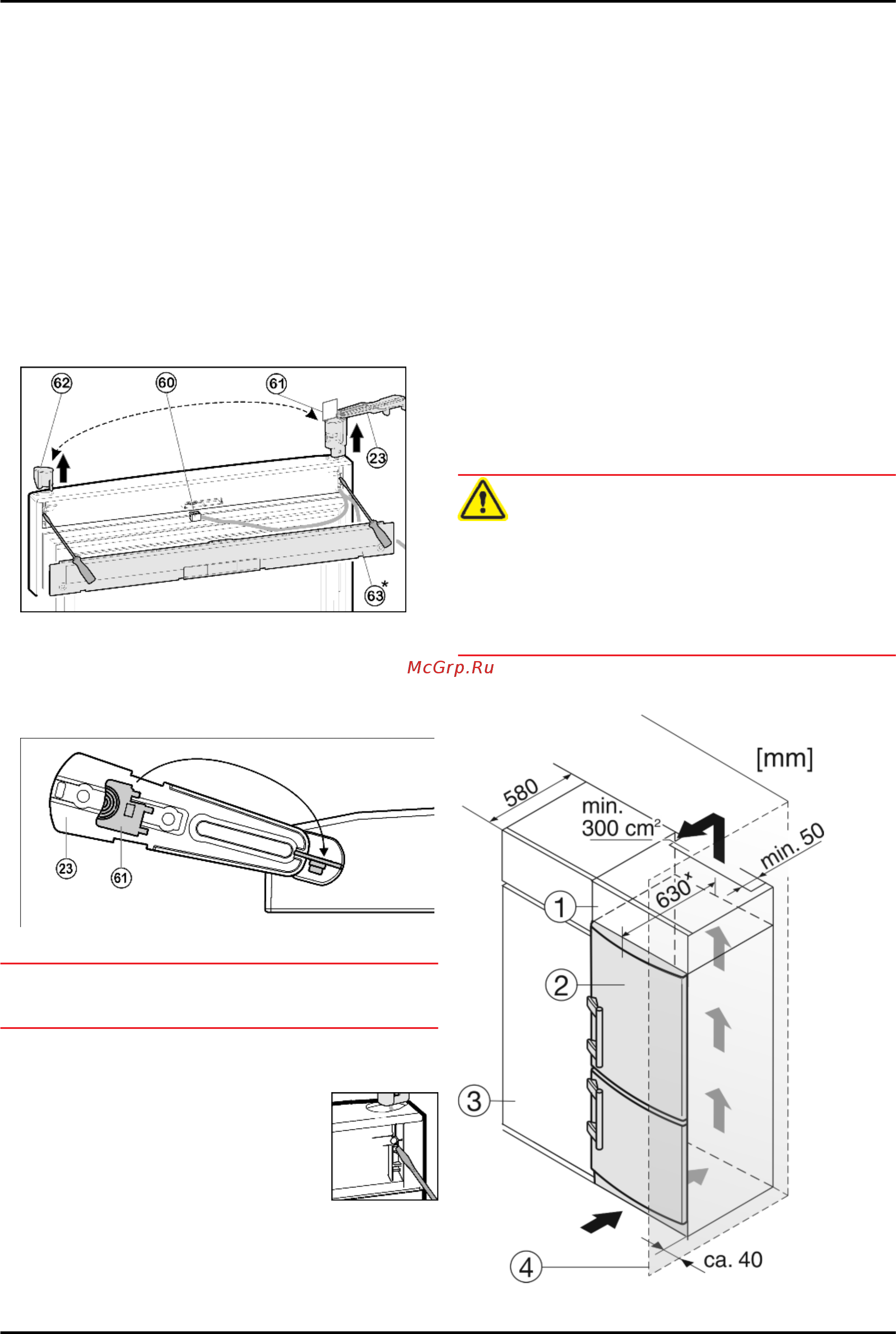

4.3.8 Transferring the cable connection (upper
door)
Fig. 11
u
Using a screwdriver, disengage the cover
Fig. 11 (63)
from
the door.
u
Detach the connector
Fig. 11 (60)
.
u
On the upper door, rotate the turn hinge
Fig. 11 (23)
outwards, parallel to the edge of the door.
Fig. 12
NOTICE
Cables may be twisted and damaged as a result!
u
Use the template.
u
Detach the supplied template
Fig. 12 (61)
from the turn
hinge and use it to prevent the turn hinge
Fig. 12 (23)
and
bush from turning.
u
Using a screwdriver, push out the turn
hinge
Fig. 11 (23)
from underneath and
remove it from the door, complete with
cable.
u
Using a screwdriver, push out the stopper
Fig. 11 (62)
from underneath and transfer it
to the opposite side.
u
Thread in the cable of the turn hinge
Fig. 11 (23)
on the
opposite side and insert the turn hinge.
u
Detach the template
Fig. 11 (61)
and secure it in the turn
hinge.
u
Plug in the connector
Fig. 11 (60)
.
u
Lay the cable in the guide.
u
Snap the cover
Fig. 11 (63)
into place on the door.
4.3.9 Fitting the upper door
u
Place the upper door on the middle bearing pin
Fig. 7 (41)
,
close the door and attach the upper turn hinge
Fig. 6 (23)
so
that it engages in the upper side of the appliance.
u
Screw theturn hinge
Fig. 6 (23)
firmly into place (with
4 Nm). Possibly make preliminary holes with a bradawl or
use a cordless screwdriver.
u
Snap cover
Fig. 6 (20)
and cover
Fig. 6 (21)
into place.
u
Plug in the connector
Fig. 4 (12)
again.
u
Lay the cable in the guide.
u
Attach the cover
Fig. 4 (10)
again.
u
Turn the cover
Fig. 5 (6)
through 180°, attach it from the
outside to the handle side and snap it into place.
u
Turn the cover
Fig. 5 (11)
through 180°, attach it from the
outside to the handle side and snap it into place.
4.3.10 Aligning the doors
u
Possibly align the door to the appliance housing by way of
the two slots in the lower turn hinge
Fig. 8 (55)
and middle
turn hinge
Fig. 7 (42)
. To do so, unscrew the middle screw in
the bottom turn hinge
Fig. 8 (55)
.
WARNING
Risk of injury due to the door dropping out!
If the bearing parts are not screwed into place firmly enough,
the door may drop out. This may lead to severe injuries. What
is more, the door may not close and therefore the appliance
may fail to cool properly.
u
Screw the turn hinges firmly into place with 4 Nm.
u
Check all of the screws and retighten if necessary.
4.4 Insertion into a row of kitchen units
Fig. 13
(1) Stack cabinet (3) Kitchen cabinet
Putting into operation
8 * Depending on model and options
