20
27
23

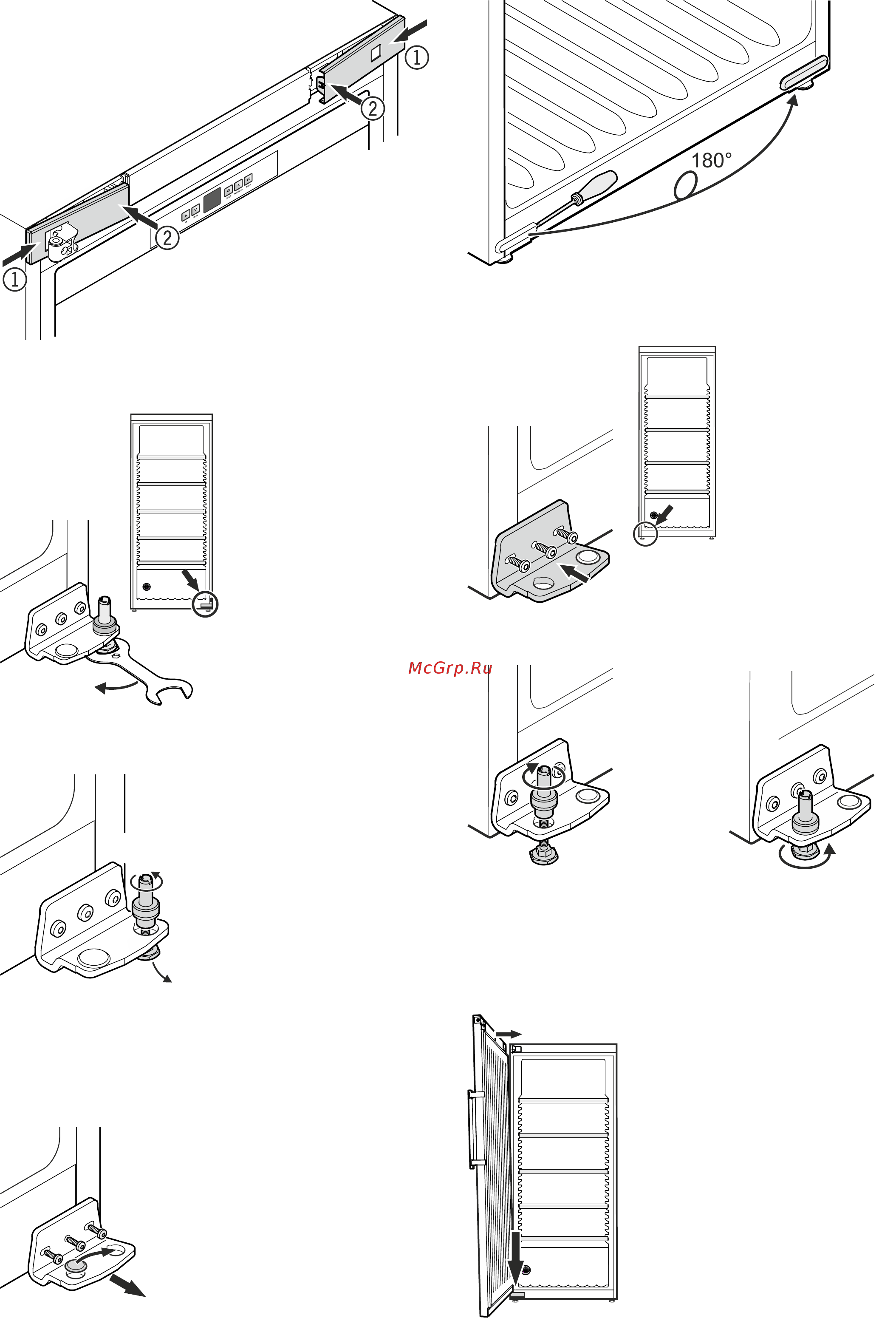

23. Remove cover, turn it through 180° and re-fit on
the opposite side.
24. Screw hinge bracket into place.
25. Fit adjustable foot from
underneath and attach
hinge pin to it.
26. Insert pin fully into hinge
bracket and tighten adjust-
able foot by hand.
27. Place door on pin and move the top
of it to the hinge bracket.
Important
The door must now be held secure by
somebody.
24
25
26
16
17
18
21
22
19
20
16. Slide cover (with the smaller
opening) from outside to
inside and click into place.
17. Guide cover with the larger opening over the hinge
bracket, slide it from outside to inside and click into
place.
18. Undo adjustable foot with the
spanner provided.
19. Pull hinge pin upwards and un-
screw it from the adjustable foot.
20. Pull adjustable foot downwards to
remove.
21. Unscrew hinge bracket.
22. Transfer cover to the opposite side.
