Liebherr WKt 4551 [11/11] Shutting your appliance down
![Liebherr WKt 4551 [11/11] Shutting your appliance down](/views2/1322708/page11/bgb.png)
21
GB
28
30
31
32
34
33
29

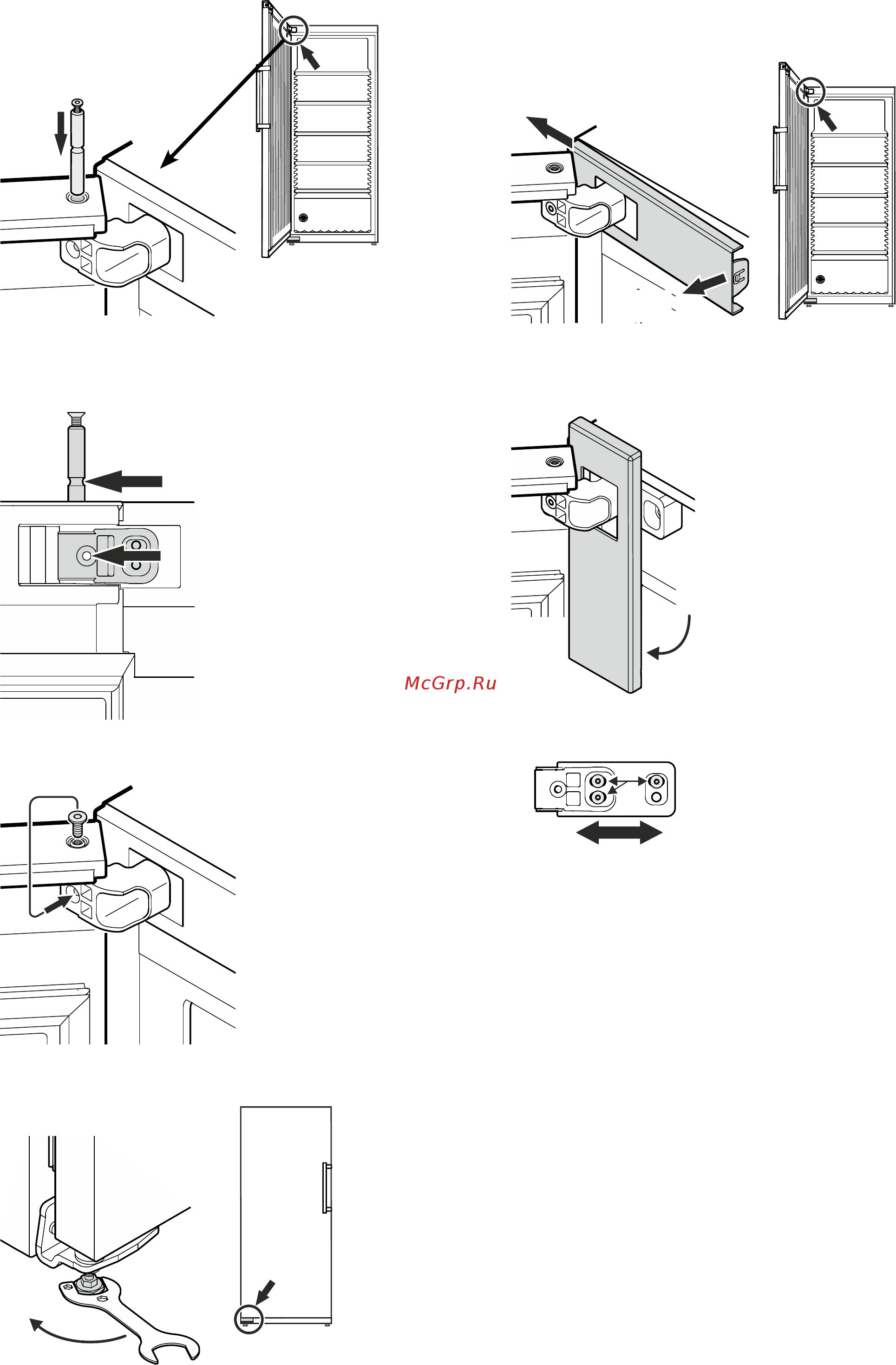

28. Insert hinge pin.
29. Push in hinge pin until groove in
the pin lines up with bore hole in
the hinge bracket.
Front view of top hinge bracket
30. Undo screw in hinge pin and
screw into bore hole in hinge
bracket.
31. Place the appliance in its final position at the place of instal-
lation.
Extend the adjustable foot at the bottom hinge bracket until
it rests on the floor and then make a further 90° turn.
32. Release cover on the inside and slide to
the outside.
Adjusting the lateral tilt of the door
If the door is at an angle, adjust the angle.
Front view of top hinge bracket
33. Turn cover downwards.
34. Undo screws and slide hinge bracket
to the right or left.
Tighten screws.
Re-fit cover following the instructions
above in reverse order.
Close door and check that it is aligned
with the side walls of the appliance.
Shutting your appliance down
If your appliance is to be shut down for any length of time, switch
it o and disconnect the plug or switch o or unscrew the fuse.
Clean the appliance and leave the door open in order to prevent
unpleasant smells.
The appliance complies with the relevant safety regulations and
EC Directives 2004/108/EC and 2006/95/EC.
