18

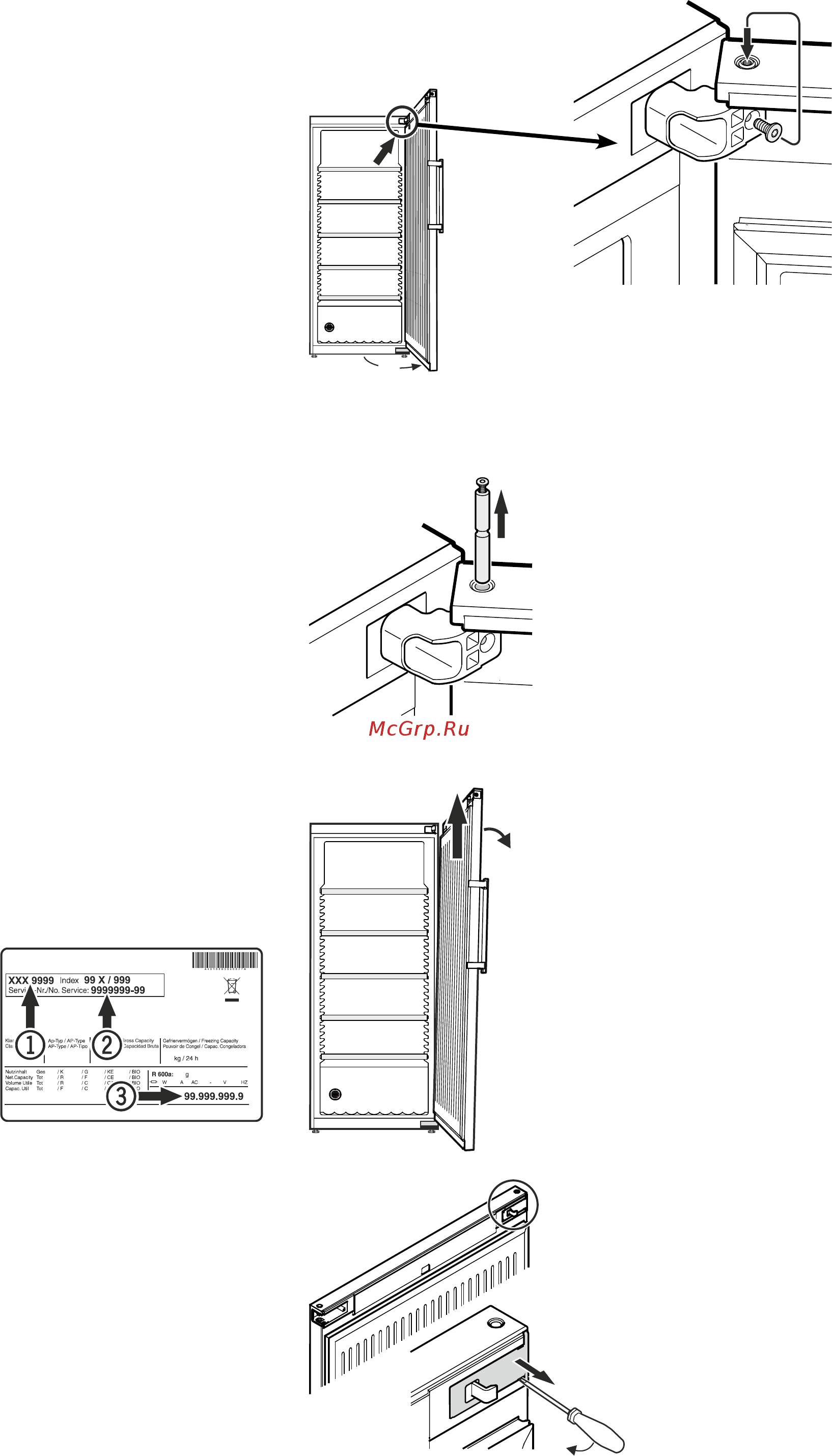

Changing over door hinges
Door hinges should only be changed by a trained expert.
Changing the door hinges must be done by two people.
2
1
3
4
5
1. Open the door approx. 130°.
2. Remove screw from hinge bracket and screw
3 to 4 turns into the hinge pin.
Important
The door must now be held secure
by somebody.
3. Pull out hinge pin.
4. Tilt door slightly to the side and remove
by lifting upwards.
5. Release cover with a small
screwdriver and remove.
Cleaning
Before cleaning always switch o the appliance. Pull out
the mains plug or remove/unscrew the fuse.
• Clean the inside and outer walls with lukewarm water and a lit-
tle detergent. Do not use abrasive or acid cleaners or chemical
solvents.
• Use a glass cleaner to clean the glass surfaces and a commercially
available stainless-steel cleaning agent for the stainless-steel
surfaces.
Do not use steam cleaners because of the
risk of injury and damage.
• Ensure that no cleaning water penetrates into the elec trical
components or ventilation grille.
• Do not damage or remove the type plate on the inside of the
appliance. It is very important for servicing purposes.
Malfunctions
• F1 appears in the display.
– The appliance has suffered a fault. Contact the customer service
department.
You may be able to rectify the following faults by checking the
possible causes yourself.
• Appliance does not function:
– Is the appliance switched on?
– Is the plug correctly fitted in the mains socket?
– Is the fuse intact?
• When inserting the mains plug, the refrigeration unit does
not switch on, but a value is shown in the temperature
display.
– Demo mode is activated. Deactivate demo mode as described
in the section entitled Additional functions - Demo mode.
• Loud running noise:
– Is the appliance set up firmly on the floor?
– Does the appliance cause nearby items of furniture or objects to
vibrate? Please note that noises caused by the refrigerant circuit
cannot be avoided.
• The temperature is not low enough:
– Is the temperature setting correct (see "Setting the temperature")?
– Does the separately installed thermometer show the correct
reading?
– Is the ventilation system working properly?
– Is the appliance set up too close to a heat source?
If none of the above causes
apply and you cannot rectify
the fault yourself, contact the
nearest customer service de-
partment stating the type des-
ignation
1
, service number
2
and appliance number
3
as
indicated on the type plate.
The position of the type plate
is shown in the section entitled
Description of the appliance.
