4 American Dryer Corp. 450262-1

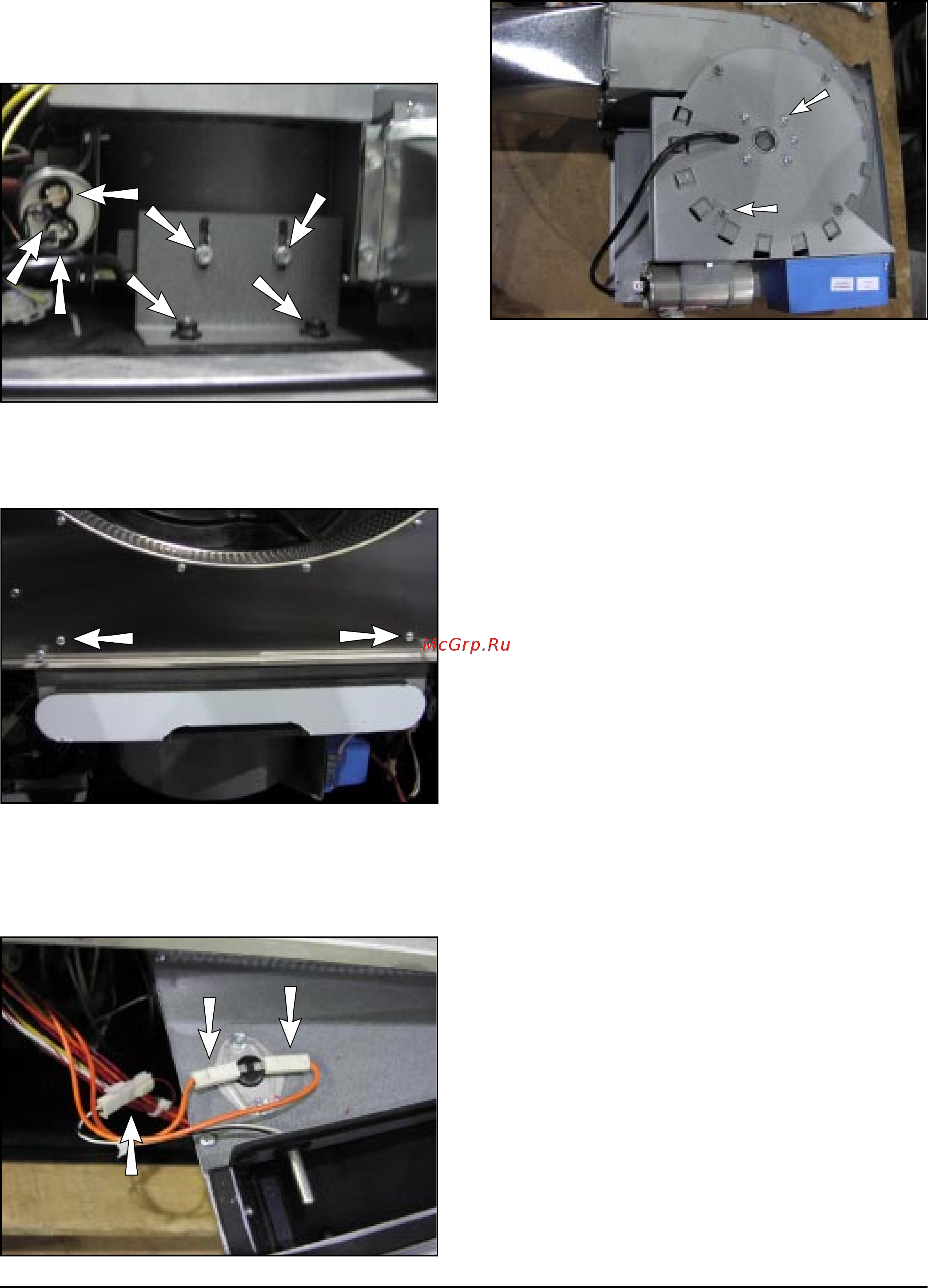

Remove screws and nuts at the rear of the lint box.

Unplug wires from the capacitor.

To remove motorized impellor assembly, remove the

five screws and four nuts, shown with arrows.

Remove cover and pull the motorized impellor

assembly out through the opening.

Unplug three connections at the left of the lint box.

The lint box may now be pulled out through the front

of the dryer.

Remove two screws just above the lint drawer and

pull the lint box down from the front and out slightly.

LINT BOX/BLOWER ASSEMBLY REMOVAL:
