450262-1 www.amdry.com 5

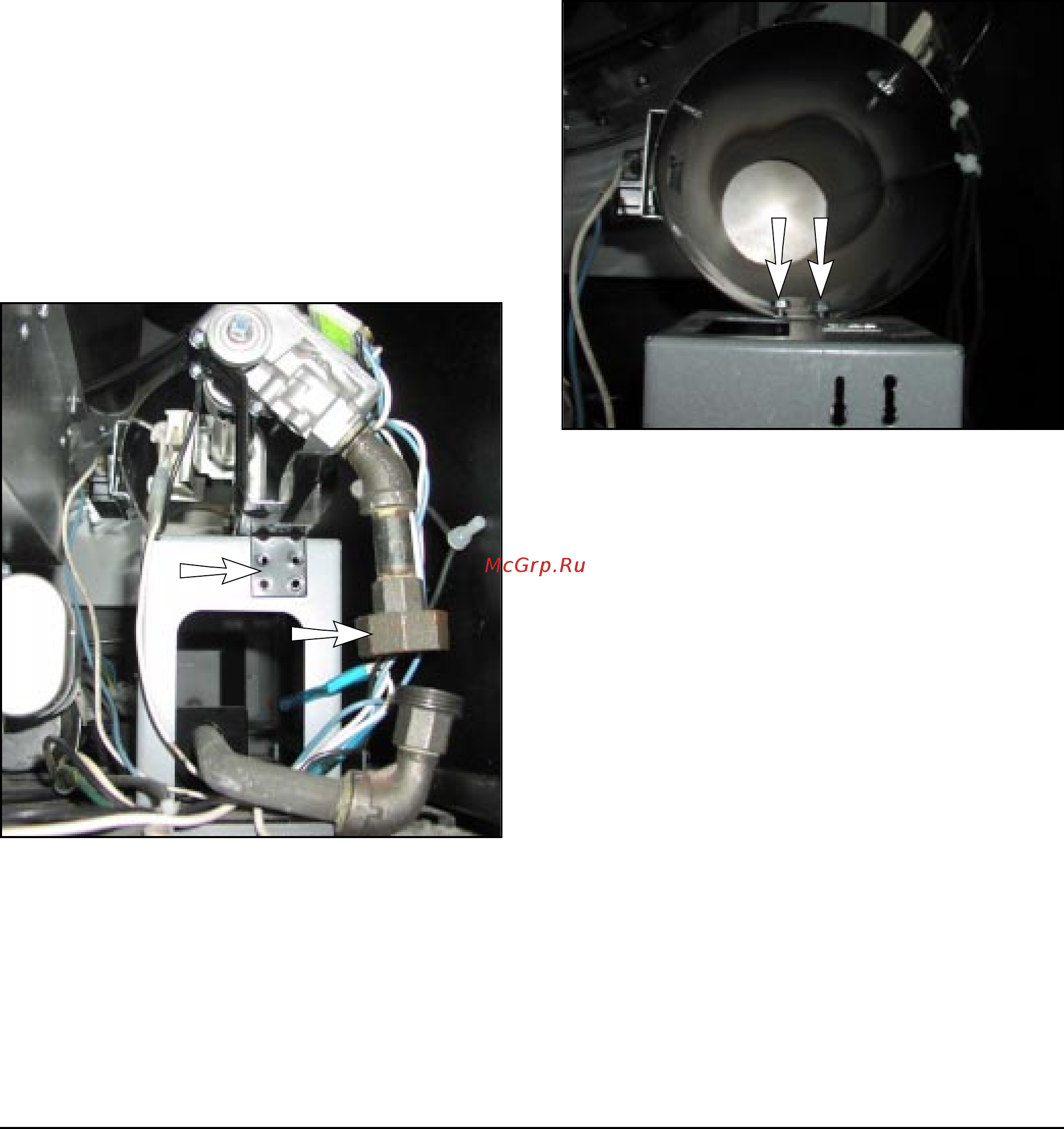

GAS VALVE/IGNITION SYSTEM REMOVAL:

Be sure to shut off the gas main and then proceed

to remove electrical connections and screws

indicated. Remove lower front panel. Disconnect

union and screws noted with arrows.

The gas valve and burner orifice can now be carefully

pulled toward the front of the dryer.

Be sure to pull the assembly straight back so as not

to strike the very fragile carbon ignitor. With the

assembly partly out of the oven, the ignitor and the

two gas valve electrical connections can be

disconnected. At this point the assembly can be

removed from the dryer.

Replace assembly in the reverse order but make

sure the tab at the rear of the assembly engages

into the oven base slot.

Inspect all wires to be sure all lead directly toward

the front of the dryer. Be sure no wires are caught

on the burner tube or ignitor.

OVEN CHAMBER REMOVAL:

The oven chamber can be removed after the gas

valve/ignition system has been removed.

Remove the two screws indicated by the arrows.

Pull the oven housing part way out through the front

and disconnect all wire connections. The oven

housing can now be removed.

Replace assembly by leading the housing cone into

the hole in the rear wall. Replace screws and wire

connections.
