6 American Dryer Corp. 450262-1

TUMBLER SUPPORT

WHEEL ASSEMBLY REPLACEMENT:

The front wheel assemblies can be replaced with

the lower front panel removed. Remove the three

bolts by reaching upward with a socket or box

wrench. The illustration below is provided to show

the location of these wheels as the wheels cannot

easily be seen while standing in front of the dryer.

The left rear wheel assembly can be removed with

just the back guard removed. The rear right wheel

requires removing the back guard, heat duct, and

oven. Be sure to mark the position of rear wheel

brackets prior to removal (refer to page 7).

All wheel assemblies are mounted on slots to allow

for alignment of the tumbler. After one or more wheel

assemblies are replaced, the tumbler must be

realigned.

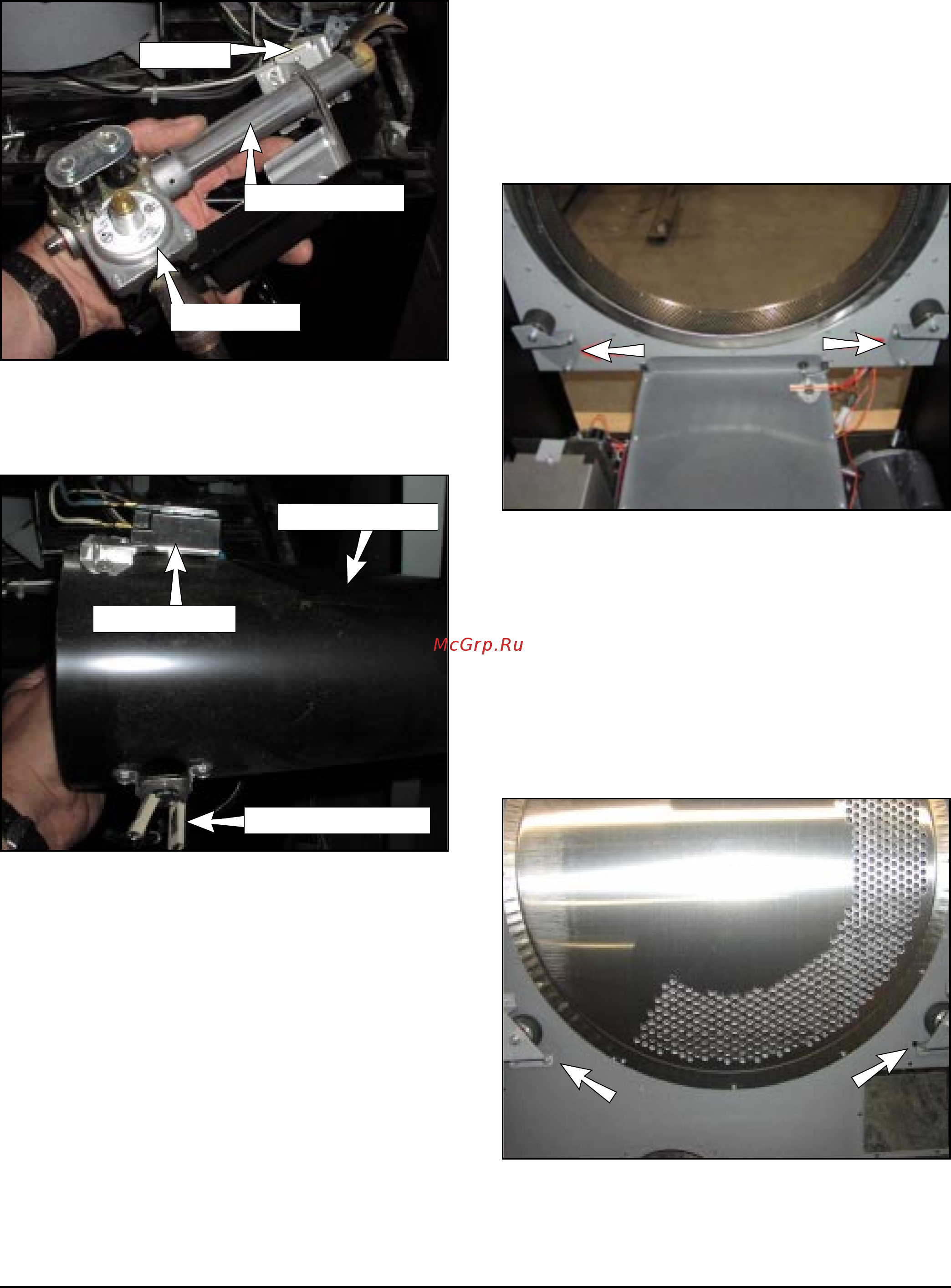

GAS VALVE/IGNITION SYSTEM COMPONENTS

OVEN HOUSING COMPONENTS

BURNER TUBE

IGNITOR

GAS VALVE

HEAT SENSOR

OVEN CHAMBER

BURNER HIGH-LIMIT
