● OPERATING INSTRUCTIONS ●
• Press CLOCK gently using a thin instrument.
• Make sure the polarity of the batteries is correct.
•
Do not use manganese batteries and leaking batteries. The remote controller
could malfunction.
• Do not use rechargeable batteries.
• Replace all batteries with new ones of the same type.
• Batteries can be used for approximately 1 year. However, batteries with
expired shelf lives last shorter.
• Press RESET gently using a thin instrument.
If the RESET button is not pressed, the remote controller may not operate
correctly.
Before operation: Insert the power supply plug into the power outlet and/or turn the breaker on.
Operation indicator lamp
Remote control receiving
section
Emergency
operation
switch
Page 6
Horizontal
vane
Air inlet
Air  lter
Air cleaning  lter
(Electrostatic
anti-allergy
enzyme  lter and
deodorizing  lter)
Front panel
Installing the remote controller batteries
Setting current time

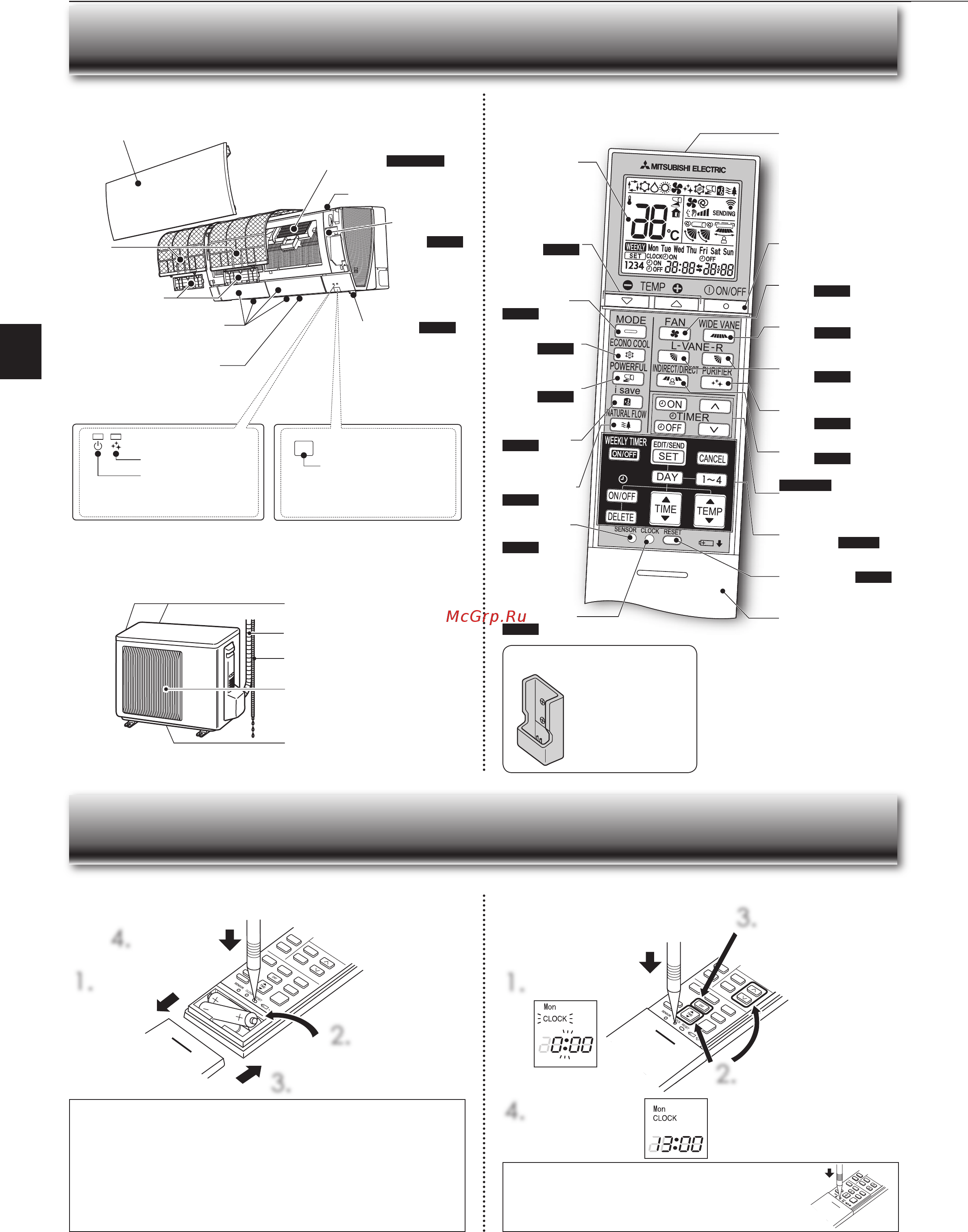

NAME OF EACH PART
PREPARATION BEFORE OPERATION
Indoor unit Remote controller
1.
Remove the front lid.
2.
Insert the negative
pole of AAA
alkaline batteries  rst.
3.
Install the front lid.
4.
Press RESET.
1.
Press CLOCK.
4.
Press CLOCK again.
2.
Press either the TIME button
or the TIMER buttons to set
the time.
Each press increases/decreas-
es the time by 1 minute (10
minutes when pressed longer).
3.
Press the DAY button
to set the day.
Remote controller holder
Signal transmitting
section
Distance of signal :
About 6 m
Beep(s) is (are) heard from
the indoor unit when the
signal is received.
Operation
display section
ON/OFF
(operate/stop) button
Temperature
buttons
Page 6
Operation
select button
Page 6
ECONO COOL
button
Page 8
FAN speed control
button
Page 7
VANE control
button
Page 7
TIME, TIMER set buttons
Pages 3, 9
Increase time
Decrease time
CLOCK button
Page 3
RESET button Page 3
Lid
Slide the lid down
to open the remote
controller. Slide it down
further to get to the
weekly timer buttons.
• Install the remote con-
troller holder in a place
where the signal can be
received by the indoor
unit.
• When the remote con-
troller is not used, place
it in this holder.
Only use the remote controller provid-
ed with the unit.
Do not use other remote controllers.
If two or more indoor units are installed
in proximity to one another, an indoor
unit that is not intended to be operated
may respond to the remote controller.
i-save button
Page 8
WEEKLY TIMER
set buttons
Page 10
Air outlet
Outdoor unit
Outdoor units may be different in appearance.
Air purifying device Pages 9, 11
Air inlet (back and side)
Piping
Drainage hose
Air outlet
Drain outlet
WIDE VANE
button
Page 7
PURIFIER
button
Page 9
INDIRECT/DIRECT
button
Page 5
POWERFUL
button
Page 9
NATURAL
FLOW button
Page 9
SENSOR
(i-see) button
Page 5
i-see sensor Page 5
(Air purifying)
(Power)
