Fasten the appliance to the worktop or the sides,

applying the sealing strip between the appliance and

adjacent cabinet using the fixing brackets (E).

The appliance is equipped with adjustable support

feet. To adapt the appliance to the height of the

installation area (max 870 mm), screw in, or screw

out the feet situated in the four bottom corners.

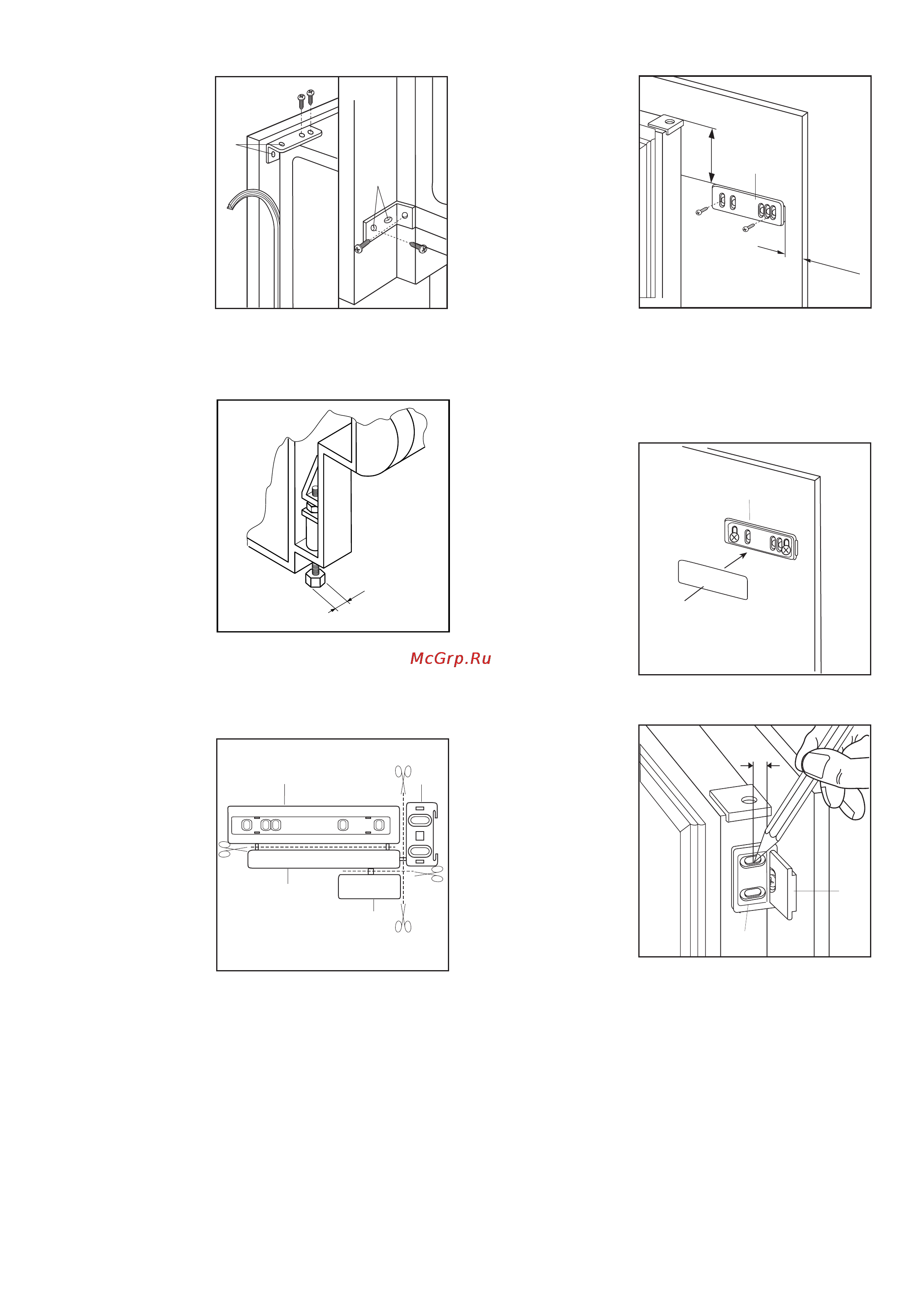

Separate parts A, B, C, D as shown in the figure.

D319

SUPER.

INFER.

UPPER

LOWER

S.I.006

PR266

20mm

50mm

PR166

Place guide (A) on the inside part of the furniture

door, in the upper and lower positions as shown in the

figure and mark the position of external holes. Having

drilled the holes, fix the guide with the screws

supplied.

Fix cover (C) on guide (A) until it clips into place.

Open the appliance door and the furniture door at

90°. Insert the small square (B) into guide (A). Put

together the appliance door and the furniture door

and mark the holes as indicated in the figure.

Remove the squares and drill holes with Ø 2 mm at 8

mm from the outer edge of the door. Place the small

square on the guide again and fix it with the screws

supplied.
