Electrolux EU 6221 U [13/24] Fitting the plinth

S.I.007

S.I.008

580

a = 100

b = 150

25 - 80

A = 820

B = 870

PR168

PR167/1

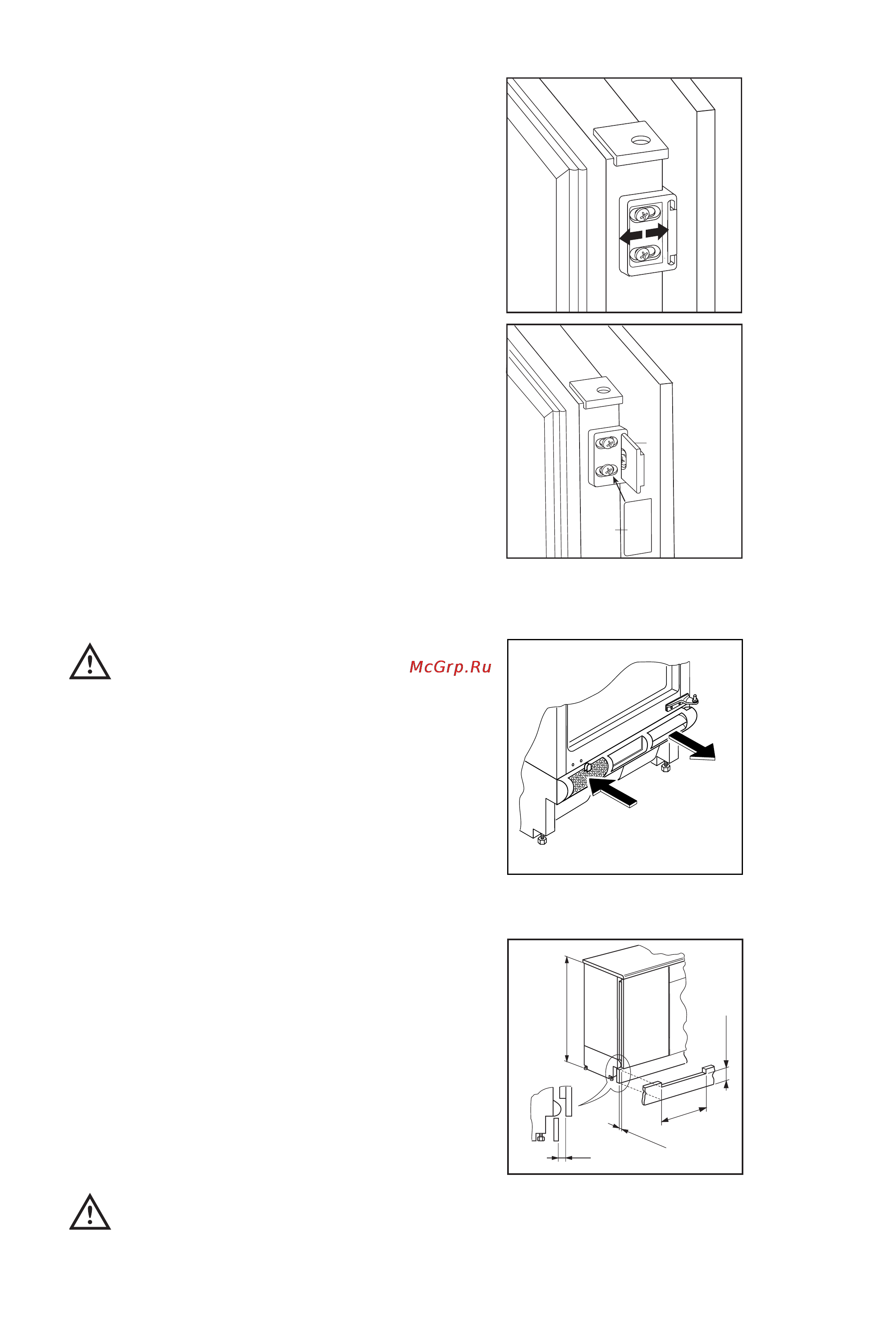

Should adjustment of the furniture door be necessary,

use the clearance of slots as required.

At the end of operations, it is necessary to check if the

door of the furniture closes properly.

Fix cover (D) on guide (B) until it clips into place.

Fitting the plinth

Important

For the efficient operation of the appliance, it is

important that the original ventilation grid is

used.

■ For an opening height dimension A=820 mm and a

plinth height dimension a=100 mm, the plinth may

be fitted without adjustments. The same applies to

an opening height dimension B=870 mm and a

plinth height dimension b=150 mm.

■ For plinth heights greater than a=100 mm, b=150

mm, a cut should be made in the plinth, 580 mm

wide, in the centre of the appliance position,

leaving a remaining height of a=100 mm, b=150

mm.

■ Attach plinth to the kitchen units.

Important

The plinth must be positioned at a minimun

distance of 25 mm from the door.
