User Instructions Low Temperature Freezers Model PRO/XLT

XT111C: the alarm relay status depends on the tbA parameter: with tbA=yES the relay is dis-

abled by pressing any key, with tbA=no the alarm relay remains enabled as long as the alarm

lasts. The display signal remains as long as the alarm condition remains.

Alarm recovery: Probe alarms “PFo”, “PFc” start few seconds after the fault in the probe; they

automatically stop few seconds after the probe restarts normal operation. Check connections

before replacing the probe. Max. and min. alarms “

HA” and “LA” automatically stop as soon

as the variable returns to normal values. Alarms “

bAL” and “EAL” recover as soon as the digital

input is disabled.

Technical data

Housing: self extinguishing ABS.

Case: frontal 32x74 mm; depth 60mm;

Mounting: panel mounting in a 71x29 mm panel cut-out.

Protection: IP20.

Frontal protection: IP65 with frontal gasket RG-C (optional).

Connections: Screw terminal block £ 2,5 mm² heat-resistant wiring.

Power supply: 12Vac/dc, ±10% or: 24Vac/dc ± 10% or 230Vac ± 10%, 50/60Hz

or 110Vac, ± 10%, 50/60Hz

Power absorption: 3VA max.

Display: 3 1⁄2 digits, red LED

Inputs: according to the order: NTC/PTC or NTC/PTC /Pt100/Thermo

couple J, K, S or 4÷20mA/ 0÷1V / 0÷10V

Relay outputs: Load relay SPDT 8(3)A, 250Vac

Alarm: (XT111C) relay SPDT 8(3)A, 250Vac

Other output: buzzer (optional)

Kind of action: 1B; Pollution grade: normal, Software class: A.

Data storing: on the non-volatile memory (EEPROM).

Operating temperature: 0÷60 °C (32÷140°F).

Storage temperature: -30÷85 °C (-22÷185°F).

Relative humidity: 20÷85% (no condensing)

Measuring and regulation range: according to the probe

Controller Accuracy a 25°C: better than ±0,5% of full scale

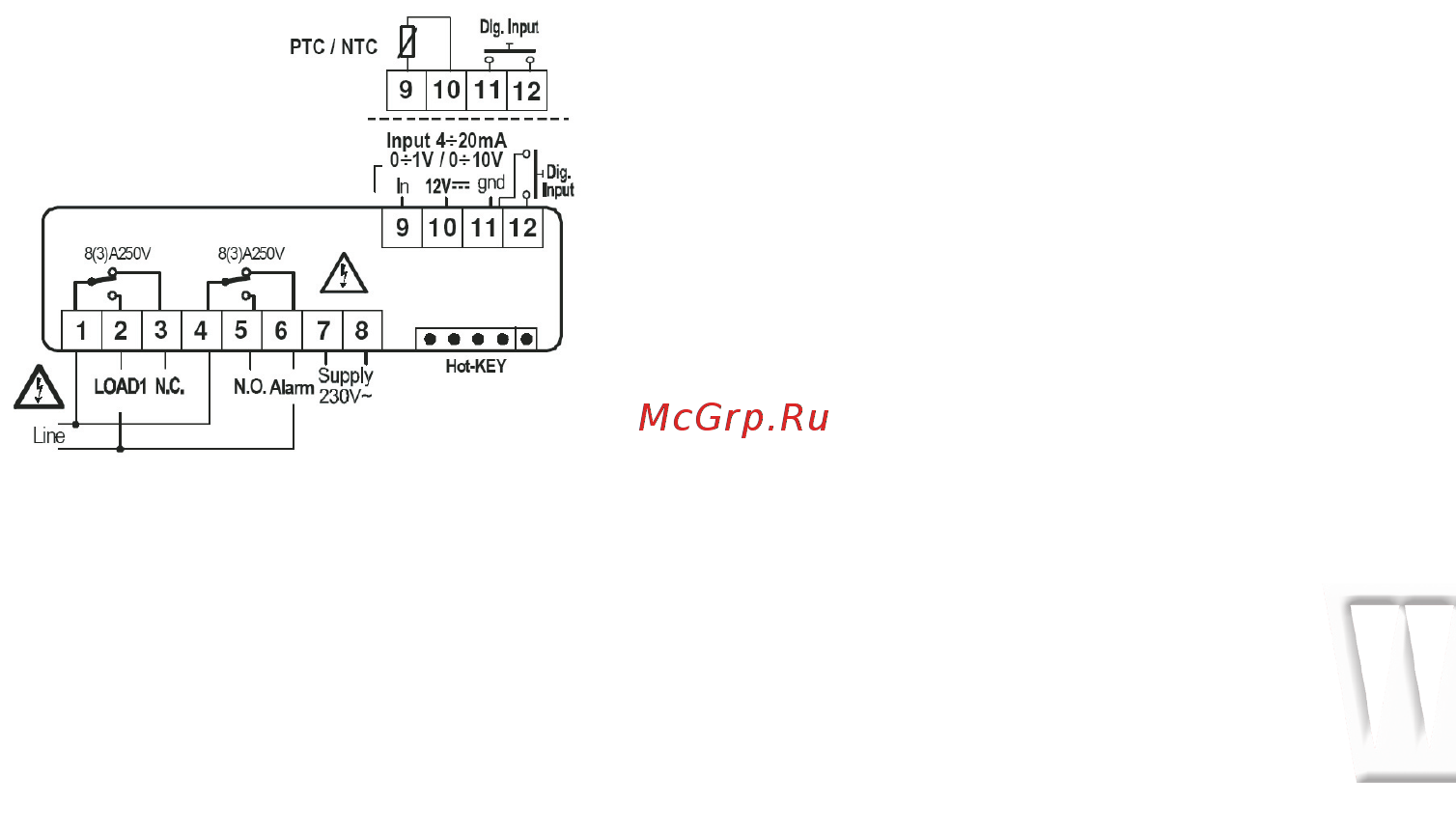

CONNECTIONS

XT111C - 230V AC OR 115V AC

Probe: Pt100 = 91-11 (10); Thermocouple

J, K, S = 9(+) -11 (-)

115Vac Supply: 7-8
