Liebherr BCDv 4313 [5/5] Changing the spring

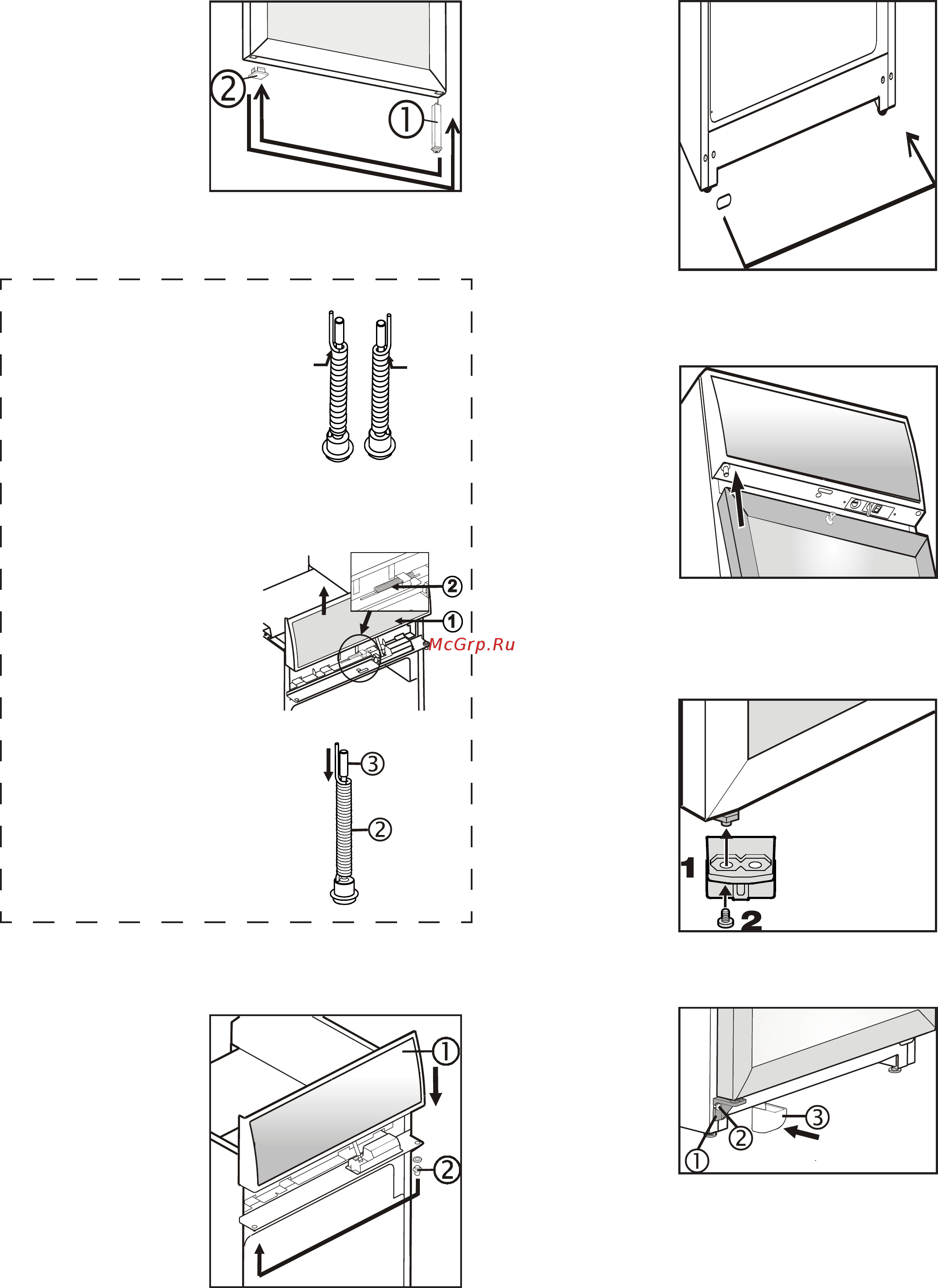

![Liebherr BCDv 4313 [5/5] Changing the spring](/views2/1326905/page5/bg5.png)
9
GB
5.
Transfer spring •
mechanism and
cover at the bot-
tom of the door to the
opposite side.
Caution :
When changing the spring
mechanism to the opposite
side, the spring must be
changed as well. This is
to ensure the self-closing
mechanism working when
the door is reversed.
Please refer the step
below for the changing
of the spring.
Spring use on
left hinge
Spring use on
right hinge
Changing the spring.
Caution :
Change the existing spring
with “reversed spring”.
Reversedspringissupplied
with the unit. It is located on
the electrical compartment
behind the display area.
Remove the screws at•
the top of the display
and move upwards.
Take the spring • on
the electrical compart-
ment.
Put the new spring•
on the hinge shaft
Reserve the original•
spring at the same stor-
age for future use.
6.
Transfer the top hinge •
pin to the opposite
side.
Move display • down-
wards and screw into
place.
7.
Transfer bottom cover •
to the opposite side
9.
Positionhingebracket•
as shown in the draw-
ing and fasten with
screw.
8.
Mount door on top •
hinge pin and close.
Support the door at the •
bottom to hold and pre-
ventfromfallingo.
10.
Turn hinge bracket•
90° anticlock wise
so the spring inside
the mechanism is
torsionally stressed.
Fastenhingebracket
with screws.
Reattachhingecover•
.
