The more R 600a refrigerant there is in the appliance, the

larger the room in which the appliance is standing needs to

be. In rooms that are too small, a flammable mix of gas and

air may be created if there is a leak. According to the EN

378 standard, every 11 g of R 600a refrigerant requires at

least 1 m

space in the room for the appliance. The amount

of refrigerant in your appliance is on the type plate inside the

appliance.

If the appliance is installed in a very damp environment,

condensed water may form on the outside of the appliance.

Always make sure that there is good ventilation - both at air

inlet and outlet - at the site of installation.

After installation:

Remove protective films, adhesive tapes and transport lock

parts etc.

Note

Clean the appliance (see Operating Instructions,

Chapter "Cleaning the appliance").

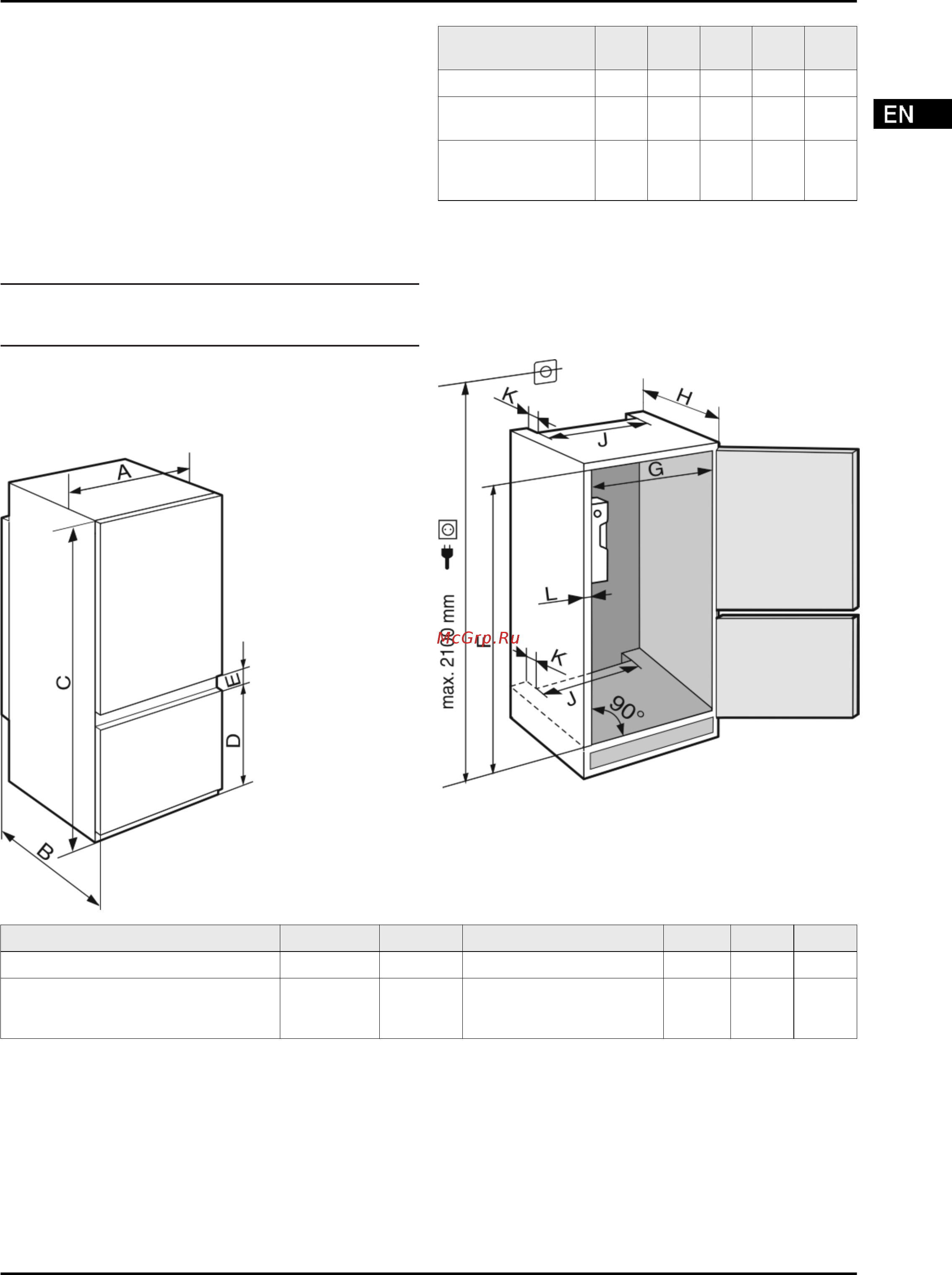

4 Appliance dimensions

Fig. 1

(mm)

ICUS 29.. 540 544 1572 523 67

ICUS 32.., ICS 32..,

ICBS 32..

540 544 1770 523 67

ICUS 33..,

ICUNS 33.., ICS 33..,

ICBS 33.. , ICNS 33..

540 544 1770 669 67

5 Recess dimensions

The appliance is built-in and therefore completely enclosed by

a kitchen unit. The kitchen unit concerned must be built exactly

to the prescribed dimensions and allow for sufficient ventila-

tion, both at air inlet and outlet, to ensure proper appliance

operation.

Fig. 2

F (mm) G (mm) H (mm) J (mm) K (mm) L (mm)

ICUS 29.. 1574 — 1590 560 — 570 min. 550, 560 recommended min. 500 min. 40 max. 19

ICUS 32.., ICS 32.., ICBS 32..,

ICUS 33.., ICUNS 33.., ICS 33.., ICBS

33.., ICNS 33..

1772 — 1788 560 — 570 min. 550, 560 recommended min. 500 min. 40 max. 19

The specified energy consumption applies to a unit depth of

560 mm. The appliance will work properly at a unit depth of 550

mm, but at a slightly higher energy consumption.

Check the wall thickness of the adjoining cabinets: It must

be min. 16 mm thick.

Only install the appliance in robust, stable kitchen units.

Secure the units against tipping.

Align the kitchen unit using a spirit level and marking square

and if necessary compensate with shims.

Ensure that the floor and walls of the unit are at right angles

to one another.

Appliance dimensions

* Depending on model and options 3
