3. Operation

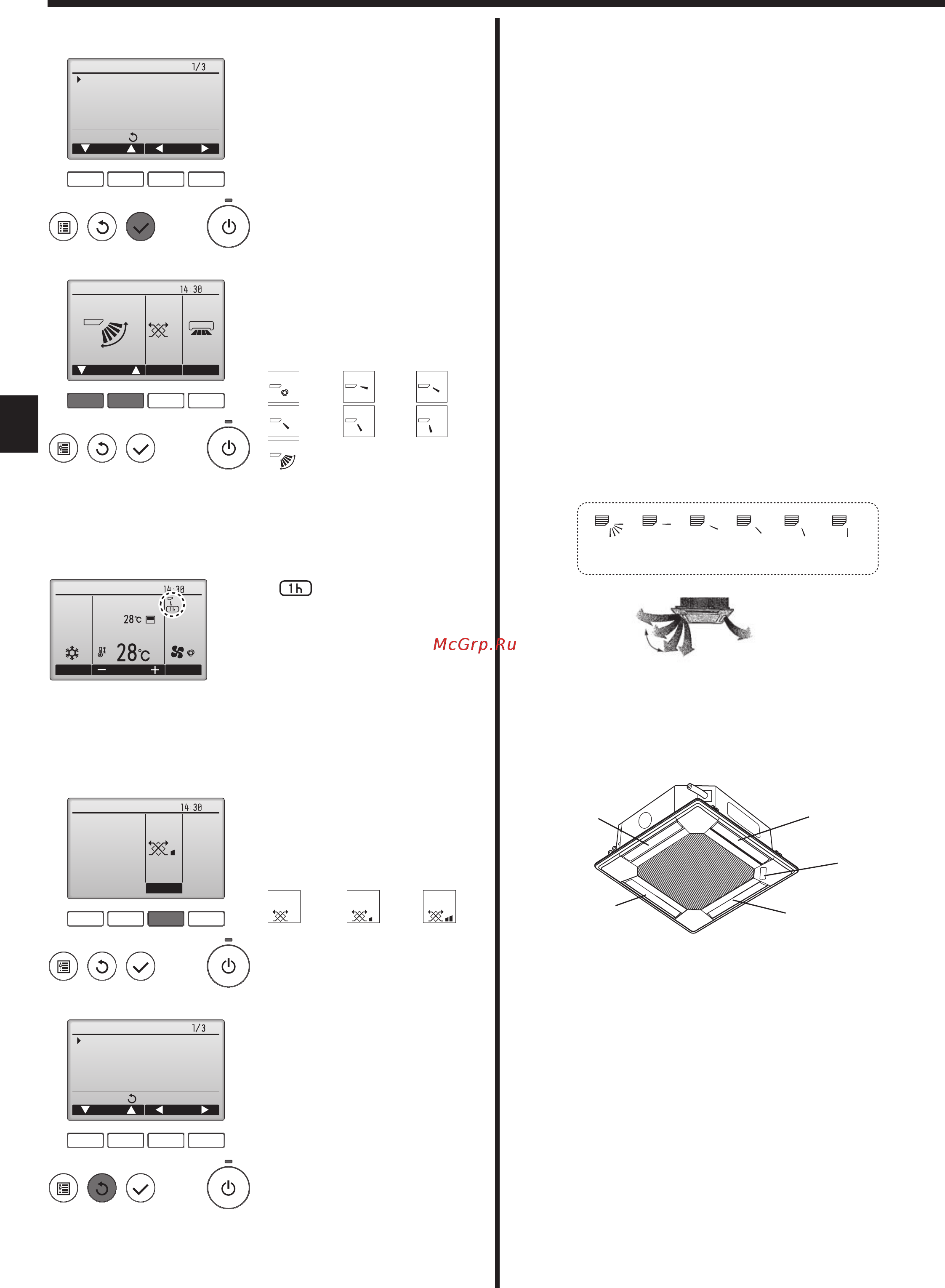

3.5.2 Vane·Vent. (Lossnay)
<Accessing the menu>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
<Vane setting>
F1 F2 F3 F4
Fri
Swing Off Off
LouverVent.Vane
Cool
Room
AutoSet temp.
Mode Temp. Fan
Fri
<Vent. setting>
F1 F2 F3 F4
Fri
Low
Vent.
<Returning to the Main menu>
F1 F2 F3 F4
Main
Main display:
Cursor Page
Main menu
Vane·Louver·Vent. (Lossnay)
High power
Timer
Weekly timer
OU silent mode
Select "Vane·Louver·Vent. (Loss-
nay)" from the Main menu (refer to
page 7), and press the [SELECT]
button.
Press the [F1] or [F2] button to go
through the vane setting options:
"
AUTO", "Step 1", "Step 2", "Step
3", "Step 4", "Step 5" and "Swing".
Select the desired setting.
Auto
Auto
Swing
Step 1 Step 2
Step 4Step 3
Swing
Step 5
Select "Swing" to move the vanes
up and down automatically.
When set to "Step 1" through "Step
5", the vane will be xed at the se-
lected angle.
under the vane setting icon
This icon will appear when the
vane is set to "Step 5" and the
fan operates at low speed during
cooling or dry operation (depends
on the model).
The icon will go off in an hour,
and the vane setting will auto-
matically change.
Press the [F3] button to go through
the ventilation setting options in the
order of "Off", "Low", and "High".
* Settable only when LOSSNAY
unit is connected.
Off Low High
Off Low High
• The fan on some models of indoor
units may be interlocked with cer-
tain models of ventilation units.
Press the [RETURN] button to go
back to the Main menu.
Reset 1
horizontal
2 3 4 5
Note: “0” indicates all outlets.
Horizontal airow
Downward
Outlet No.3
Outlet No.4
Outlet No.
2
Outlet No.1
MITSUBISHI
ELECTRIC
label
Remote controller setting
The airow direction of this outlet
is controlled by the airow direc-
tion setting of remote controller.
Fixed
The airow direction of this outlet is xed
in particular direction.
*
When it is cold because of direct
airflow, the airflow direction can be fixed
horizontally to avoid direct airflow.
Note:
During swing operation, the directional indication on the screen
does not change in sync with the directional vanes on the unit.
Available directions depend on the type of unit connected.
In the following cases, the actual air direction will differ from the
direction indicated on the remote controller display.
1. While the display is in “STAND BY” or “DEFROST” states.
2. Immediately after starting heat mode (while the system is wait-
ing for the mode change to take effect).
3. In heat mode, when room temperature is higher than the tem-
perature setting.
< How to set the xed up/down air direction (Only for
wired remote controller) >
Note:
This function cannot be set depending on the outdoor unit to be
connected.
For PLA-(Z)RP
.
BA and PLA-SP
.
BA series, only the particular outlet
can be xed to certain direction with the procedures below. Once xed,
only the set outlet is xed every time air conditioner is turned on. (Other
outlets follow UP/DOWN air direction setting of remote controller.)
Explanation of word
• “Refrigerant address No.” and “Unit No.” are the numbers given to
each air conditioner.
• “Outlet No.” is the number given to each outlet of air conditioner.
(Refer to the illustration below.)
“Up/Down air direction” is the direction (angle) to x.
