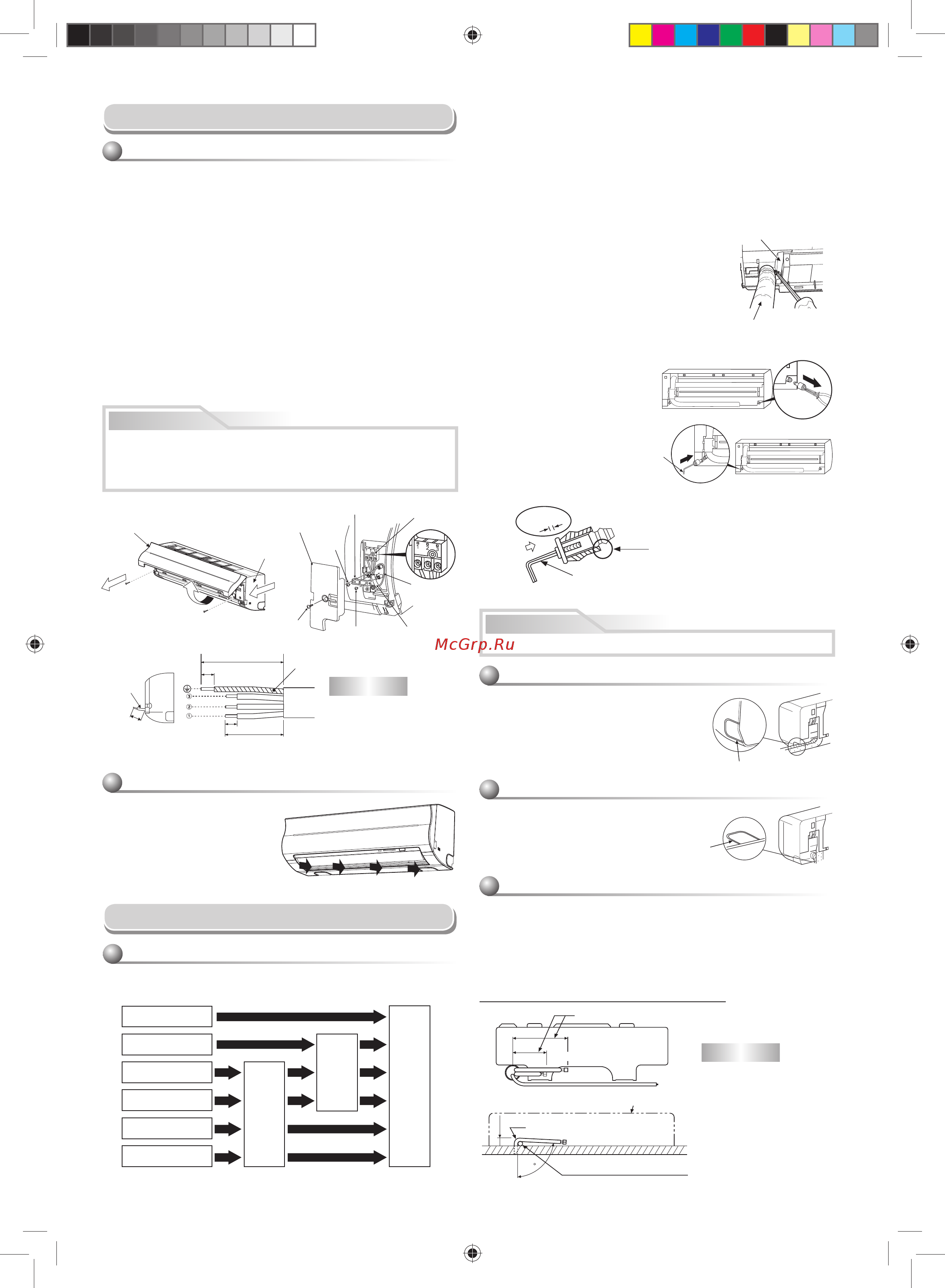

Carrier 42UQV025M / 38UYV025M [6/17] Piping and drain hose installation

Carrier 42UQV035M / 38UYV035M [6/17] Piping and drain hose installation

Slit

NOTE

If the pipe is bent incorrectly,

the indoor unit may unstably

be set on the wall.

After passing the connecting

pipe through the pipe hole,

connect the connecting

pipes to the auxiliary pipes

and wrap the facing tape

around them.

Piping and Drain Hose Installation

* Since dewing results in a machine trouble, make sure to insulate both

connecting pipes. (Use polyethylene foam as insulating material.)

Piping and drain hose forming

1. Die-cutting front panel slit

Cut out the slit on the leftward or right side of the front panel for the left or

right connection and the slit on the bottom left or right side of the front panel

for the bottom left or right connection with a pair of nippers.

2. Changing drain hose

For leftward connection, bottom-leftward connection and rearleftward

connection’s piping, it is necessary to change the drain hose and drain

cap.

How to remove the drain cap

Clip the drain cap by needle-nose

pliers and pull out.

How to remove the drain hose

• The drain hose can be removed by removing the

screw securing the drain hose and then pulling out

the drain hose.

• When removing the drain hose, be careful of any

sharp edges of steel plate. The edges can injuries.

• To install the drain hose, insert the drain hose

ﬁ rmly until the connection part contacts with heat

insulator, and then secure it with original screw.

How to ﬁ x the drain cap

1) Insert hexagon

wrench (4 mm)

in a center head.

2) Firmly insert the drain cap.

Firmly insert the drain hose and drain cap; otherwise, water may leak.

In case of right or left piping

• After scribing slits of the front panel with a

knife or a making-off pin, cut them with a

pair of nippers or an equivalent tool.

In case of bottom right or bottom left piping

• After scribing slits of the front panel with a

knife or a making-off pin, cut them with a

pair of nippers or an equivalent tool.

Left-hand connection with piping

• Bend the connecting pipe so that it is laid within 43 mm above the wall

surface. If the connecting pipe is laid exceeding 43 mm above the wall

surface, the indoor unit may unstably be set on the wall.

When bending the connecting pipe, make sure to use a spring bender so

as not to crush the pipe.

Bend the connecting pipe within a radius of 30 mm.

To connect the pipe after installation of the unit (ﬁ gure)

How to install the air inlet grille on the indoor

unit

• When attaching the air inlet grille,

the contrary of the removed

operation is performed.

• Be sure to refer to the wiring system diagram labeled inside the front

panel.

• Check local electrical cords and also any speciﬁ c wiring instructions or

limitations.

NOTE

• Use stranded wire only.

• Wire type : More than

H07RN-F or 60245 IEC66

(1.0 mm

or more).

CAUTION

Cord clamp

Terminal block

Terminal cover

Screw

Earth line

Screw

Connecting cable

Screw



270 mm

170 mm

43 mm

Liquid side

Gas side

(To the forefront of ﬂ are)

Outward form of indoor unit

R 30 mm (Use polisin (polyethylene)

core or the like for bending pipe.)

Use the handle of screwdriver, etc.

Rear right

Rear left

Bottom left

Left

Bottom right

Right

Die-cutting

front panel slit

Changing

drain hose

Piping preparation

Heat insulator

Drain hose

4 mm

Do not apply lubricating oil

(refrigerant machine oil) when

inserting the drain cap. Application

causes deterioration and drain

leakage of the plug.

No gap

Insert a hexagon

wrench (4 mm).

Earth

line

Connecting

cable

Stripping length of the connecting cable

about 15 cm

110 mm

50 mm

10 mm

Air inlet grille

Front panel

Wiring Connection

Wiring of the connecting cable can be carried out without removing the

front panel.

1. Open the air inlet grille upward.

2. Remove two screws of the front panel.

3. Slightly open the lower part of the front panel, then pull the upper part of

the front toward you to remove it from the rear plate.

4. After removing the front panel, remove the terminal cover and the cord

clamp.

5. Insert the connecting cable (according to the local cords) into the pipe

hole on the wall.

6. Take out the connecting cable through the cable slot on the rear panel

so that it protrudes about 15 cm from the front.

7. Insert the connecting cable fully into the terminal block and secure it

tightly with screws.

8. Tighten ﬁ rmly but not over 1.2 N·m (0.12 kgf·m)

9. Secure the connecting cable with the cord clamp.

10. Fix the terminal cover, insert front panel then ﬁ x it by two screws and air

inlet grille on the indoor unit.

How to connect the connecting cable

1113950214-EN.indd 41113950214-EN.indd 4 2/22/13 3:33 PM2/22/13 3:33 PM
