- 14 -

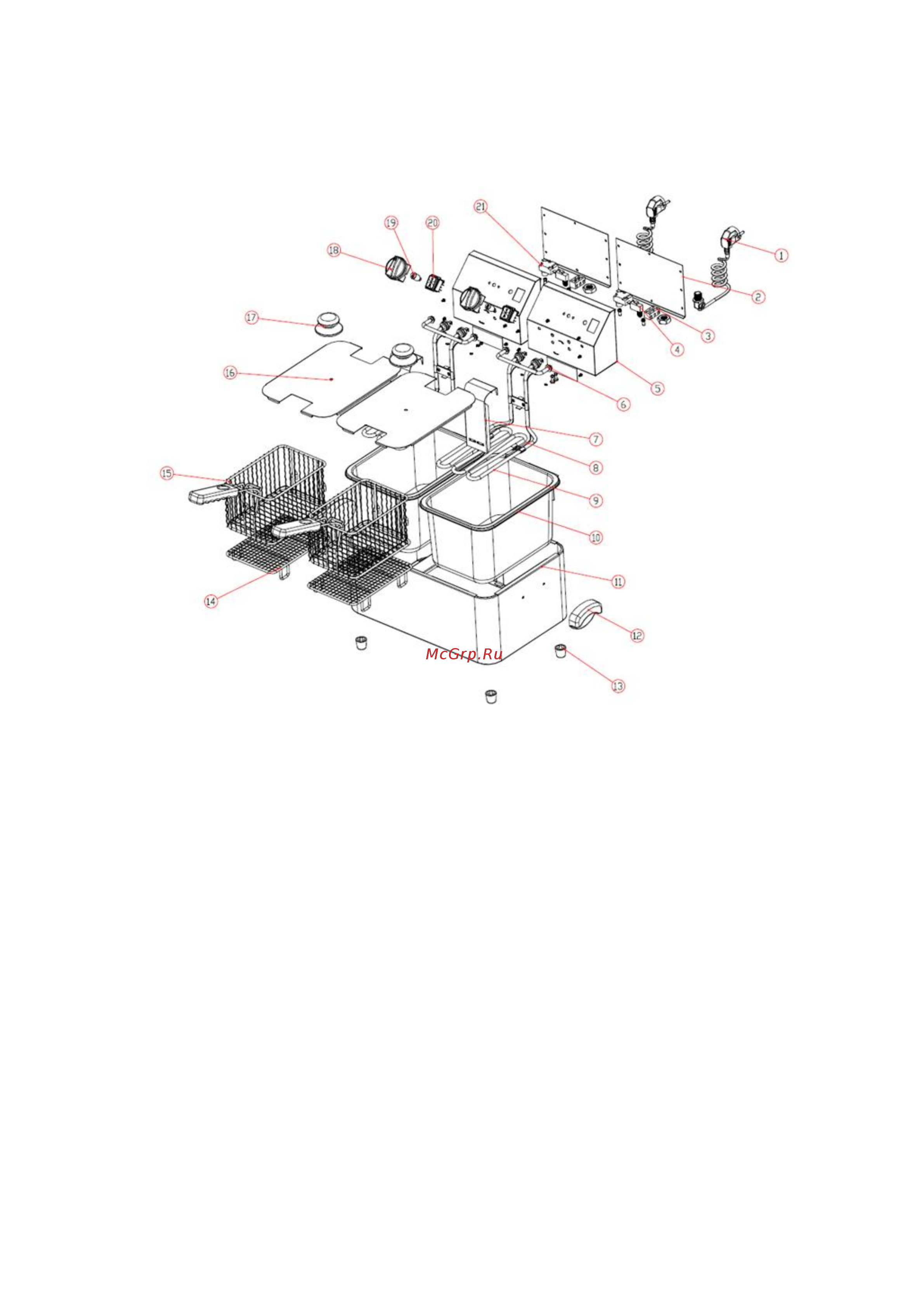

HDF Series 2-tank electric fryer

1. power line 2. cover of electric box 3.connector

4.safety switch 5.electric box 6. hanging

7.protect board 8.temperature probe 9. heating tube

10.oil pot 11.frame 12.handle of frame

13.rubber feet 14.layer of frying basket 15.frying basket

16.cover of oil pot 17.handle of cover 18.thermosistor

19. indicator light 20.mains switch 21.temperature limiter
