INSTALLING THE SOUND ENCLOSURE

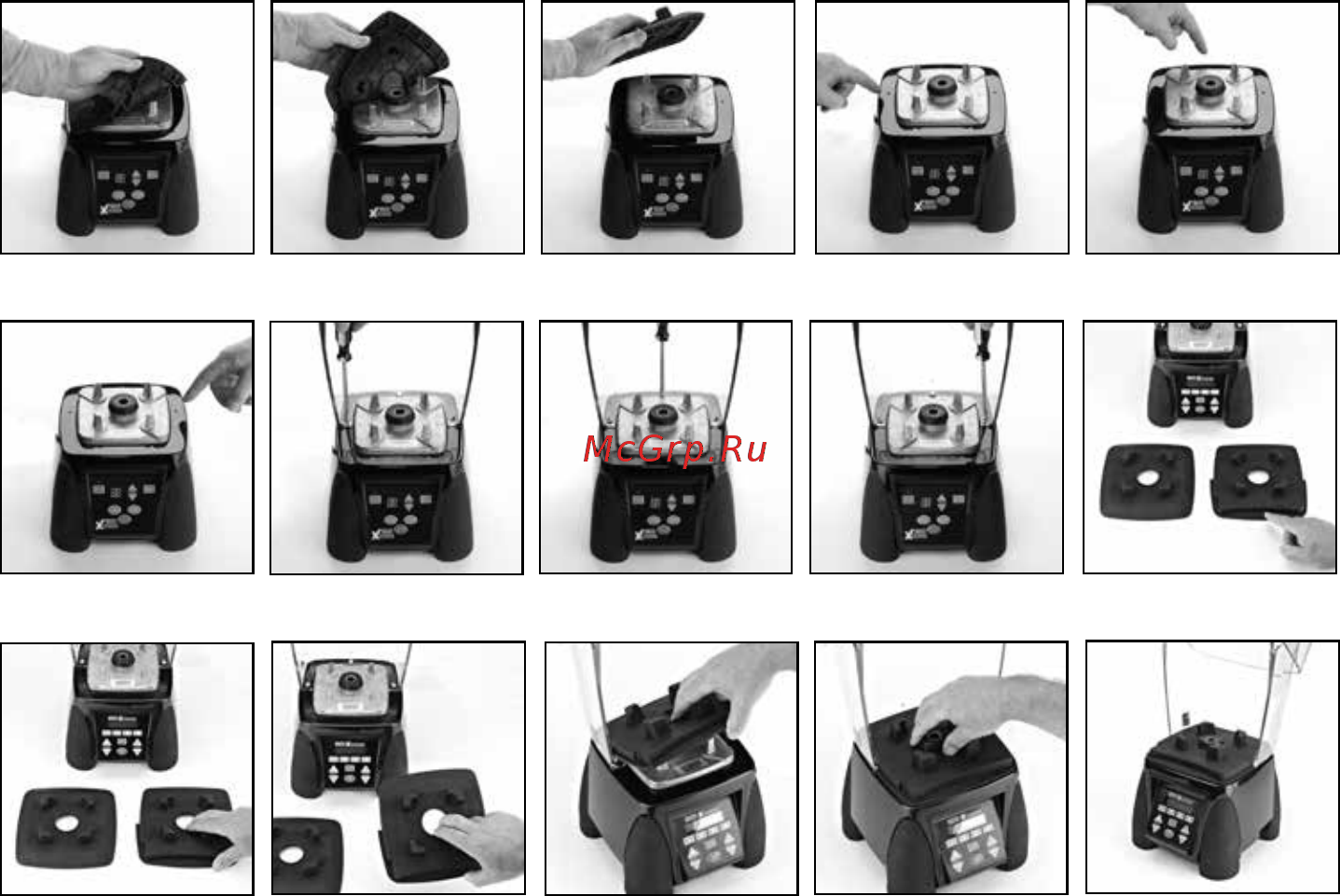

NOTE: If you are installing a sound enclosure as an optional accessory,

remove the standard jar pad to access the screw holes on the upper

housing. This jar pad will not fit properly with the sound enclosure. To remove

it, peel it back, starting in the corner and working your way over the drive

coupling until it is completely off the base unit, as seen in Figures 1, 2 and 3.

Once you have finished removing the standard jar pad OR if your blender

came packed with a sound enclosure, follow these instructions:

Step 1: Find the 3 screw holes located on the left, back and right sides of

the upper housing as seen in Figures 4, 5 and 6.

Step 2: Place the base of the sound enclosure on the motor housing so the

screw holes on the enclosure line up with the screw holes on the

base. Use a Phillips-head screwdriver and the 3 screws included

with sound enclosure to secure the enclosure to the base unit in the

3 locations as seen in Figures 7, 8 and 9.

Step 3: Once the sound enclosure is secured tightly, select the custom jar

pad (included with sound enclosure). Please note the standard jar

pad will NOT fit properly with the sound enclosure. The correct

custom jar pad has a recessed area around the outer edge. It also

has a curved front with tabs on the sides, as seen in Figures 10, 11,

and 12. This curved area should face the front of the blender.

Step 4: Attach custom jar pad included with sound enclosure onto upper

housing with the curve facing out, as seen in Figure 13. Press tightly

around coupling to secure custom jar pad onto upper housing, as

seen in Figures 14 and 15.

Figure 1 Figure 2 Figure 3

Figure 4

Figure 5

Figure 6

Figure 7

Figure 8 Figure 9

Figure 11 Figure 12

Figure 13

Figure 14

Figure 15

Figure 10
